ACCESSORIES MLC650 SERVICE/MAINTENANCE MANUAL
10-64
Published 09-09-16, Control # 229-09
VPC-MAX Beam Switch Adjustments
The VPC-MAX beam maximum tray in and maximum tray
out switches require adjustment.
Maximum Tray In Switch Adjustment
See Figure 10-51 for the following.
Adjust the forward limit switch position so that it will trip the
limit switch when the counterweight tray reaches a position
that is 409 mm (16.1 in) away from the forward physical stop.
Maximum Tray Out Switch Adjustment
See Figure 10-51 for the following.
Adjust the rear limit switch position so that it will trip the limit
switch when the counterweight tray reaches a position that is
466 mm (18.3 in) away from the rear physical stop and 6327
mm (249.1 in) away from the forward physical stop.

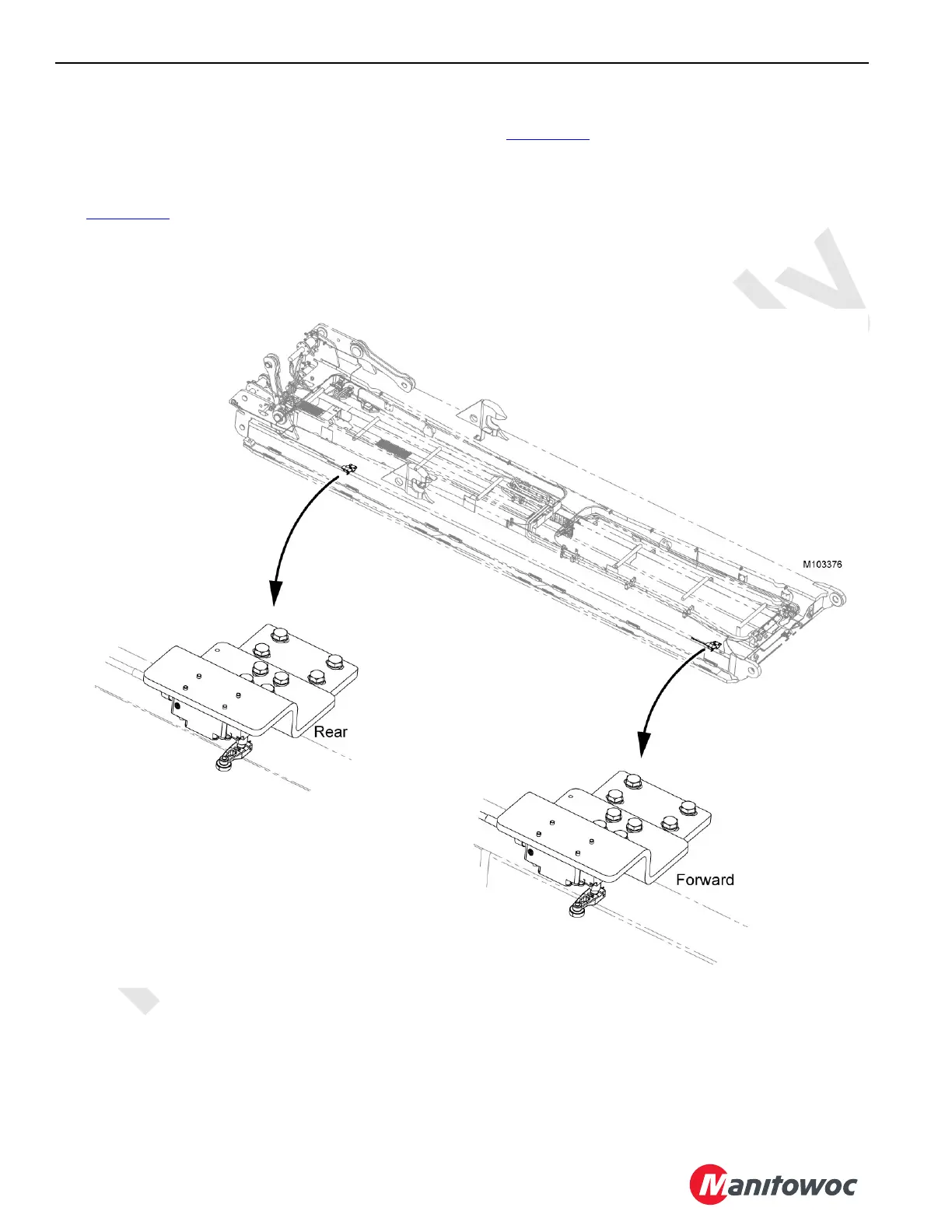

FIGURE 10-51
