HYDRAULIC SYSTEM MLC650 SERVICE/MAINTENANCE MANUAL
2-14
Published 09-09-16, Control # 229-09
Pawl Control Manifold
Drums 4, 5, and 6

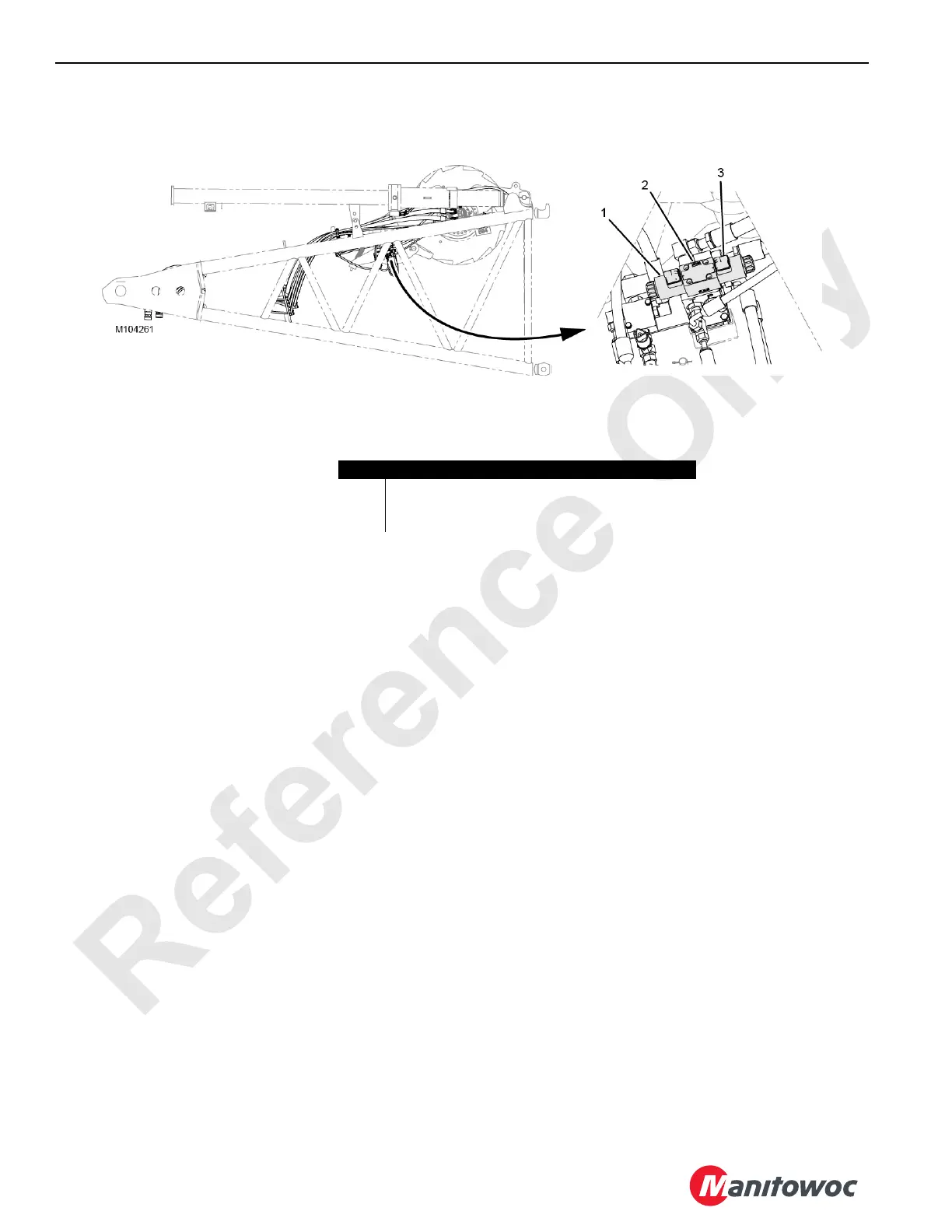

FIGURE 2-17
Item Description
1 Solenoid A—Retracts Pawl Assembly Cylinder Rod
2 Pawl Control Manifold
3 Solenoid B—Extends Pawl Assembly Cylinder Rod
Drum 5 shown. Other drums similar.
