Manitowoc Published 09-09-16, Control # 229-09 3-3
MLC650 SERVICE/MAINTENANCE MANUAL ELECTRICAL SYSTEM
3
Crane Electrical System Ground Points
Electrical system ground points are located in and under the
cab, on the rotating bed, and on the engine block.
Cab Ground Points
The cab electrical ground points are at the following
locations (Figure 3-1
):
• Cab right console (5):
- Right console ground bus bar (1)
- Right console chassis ground stud (2)
- Right console chassis-to-cab ground strap (3)
- Right console chassis-to-rear panel
ground strap (4)
• Cab frame ground straps (6) under cab frame (7)

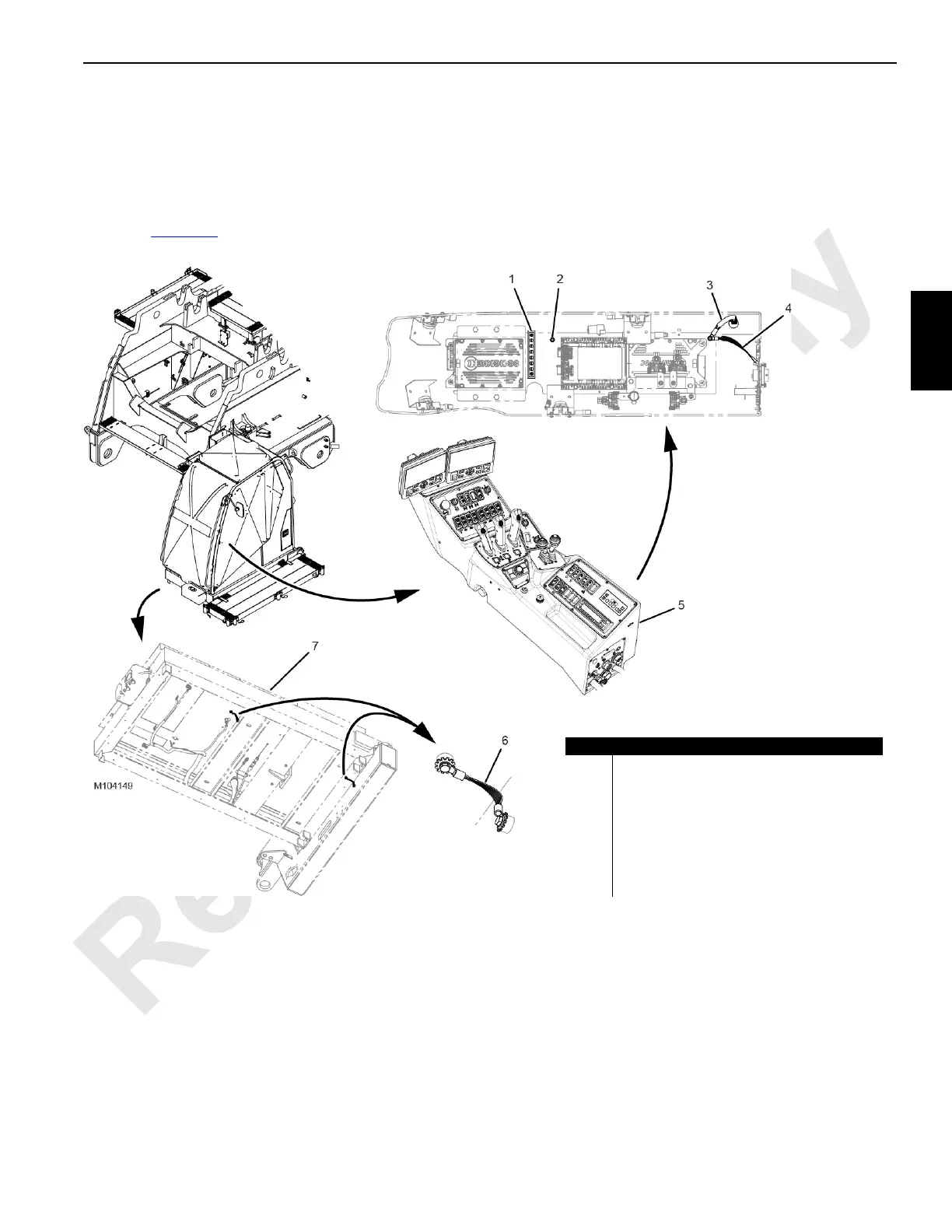

FIGURE 3-1
Item Description
1 Right Console Ground Bus Bar
2 Right Console Chassis Ground Stud
3 Right Console Chassis-to-Cab Ground Strap
4 Right Console Chassis-to-Rear Panel
Ground Strap
5 Cab Right Console
6 Cab Frame Ground Strap (2 used)
7 Cab Frame (bottom view)
