UNDERCARRIAGE MLC650 SERVICE/MAINTENANCE MANUAL
8-8
Published 09-09-16, Control # 229-09

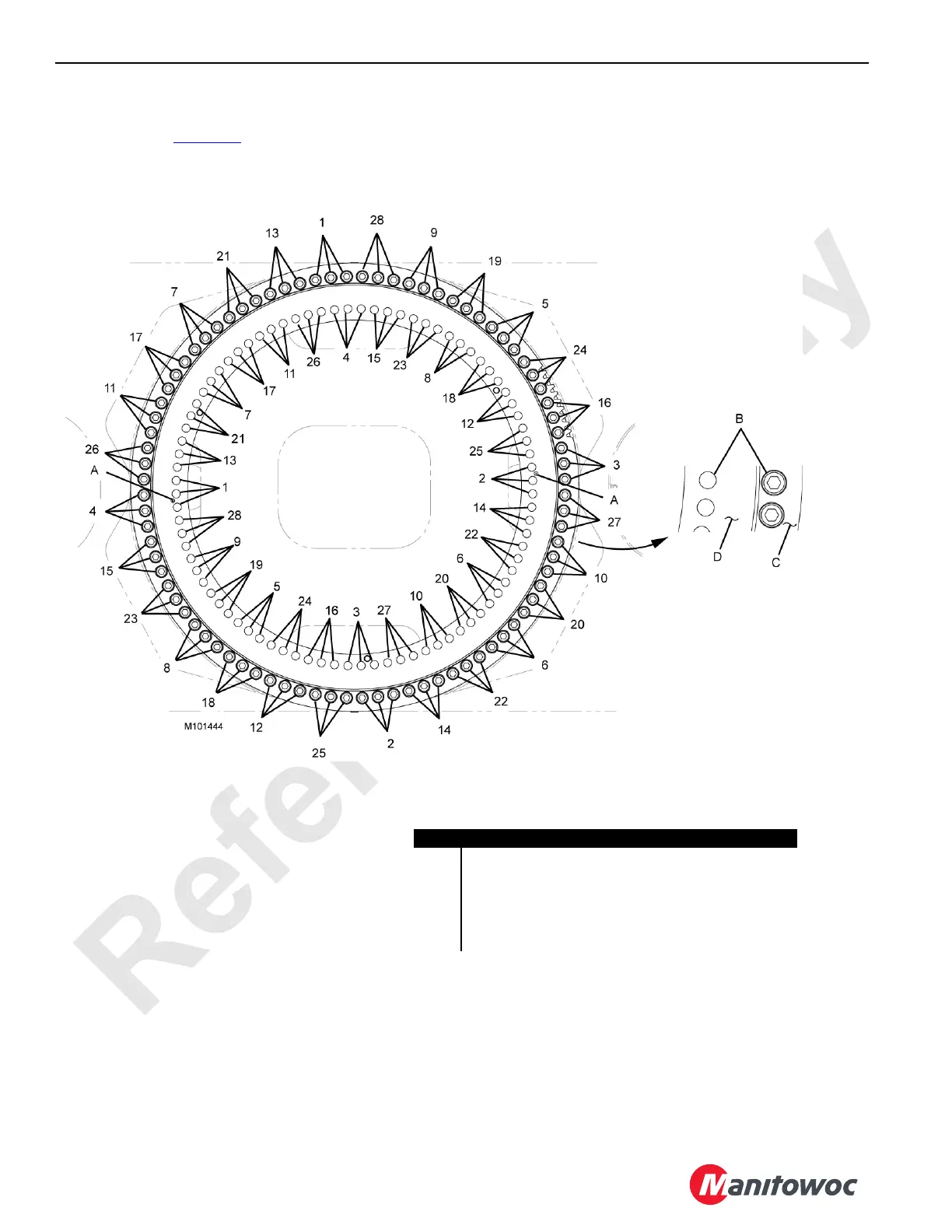

TURNTABLE BEARING ALIGNMENT
The outer ring (C, Figure 8-4) can be installed in any position
with relation to the carbody.
Two dowel pins (A) are installed in the inner ring (D) to locate
the inner ring on the rotating bed.
FIGURE 8-4
Item Description
A Dowel Pin—Two Places
B M52 X 5 X 380 LG Special Grade Bolt With Flat Washer
84 Places Outer Ring
84 Places Inner Ring
C Outer Ring
D Inner Ring
