Manitowoc MLC650 Service Maintenance Manual

Reference Only
Manitowoc Published 09-09-16, Control # 229-09 8-15
MLC650 SERVICE/MAINTENANCE MANUAL UNDERCARRIAGE
8
8

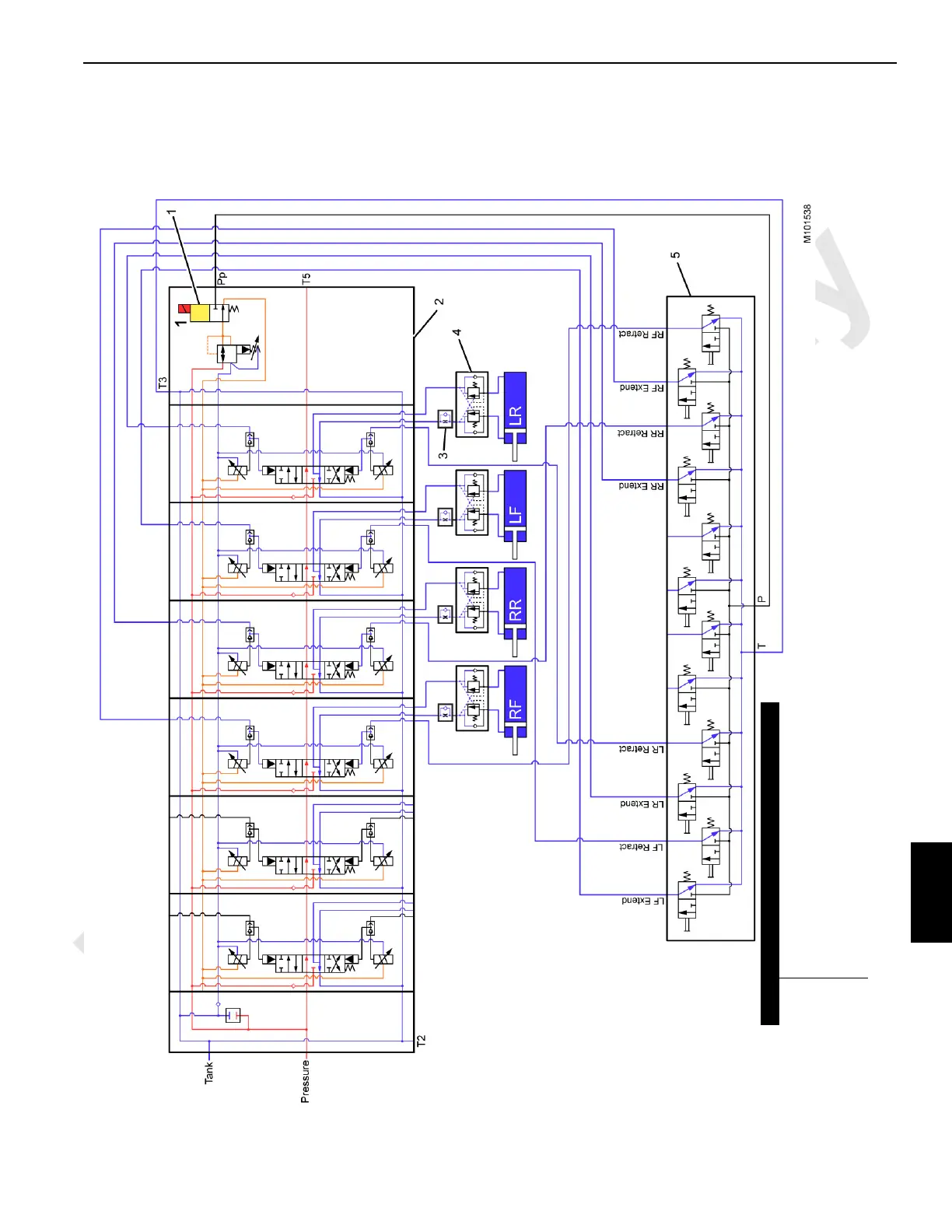

Carbody Jacks Hydraulic Schematic
The hydraulic schematic is shown with the remote in the
neutral state.
Item Description
1 Selector Solenoid Valve 2 Six-Section Lower Accessory Valve Assembly 3 Orifice With Bypass Check Valve 4 Counterbalance Valve 5 Carbody Manual Control Manifold
Cylinder Pressures: - Extend = 240 Bar (3500 psi) - Retract = 69 Bar (1000 psi)
FIGURE 8-7
