POWER TRAIN MLC650 SERVICE/MAINTENANCE MANUAL
7-16
Published 09-09-16, Control # 229-09
ENGINE ENCLOSURE

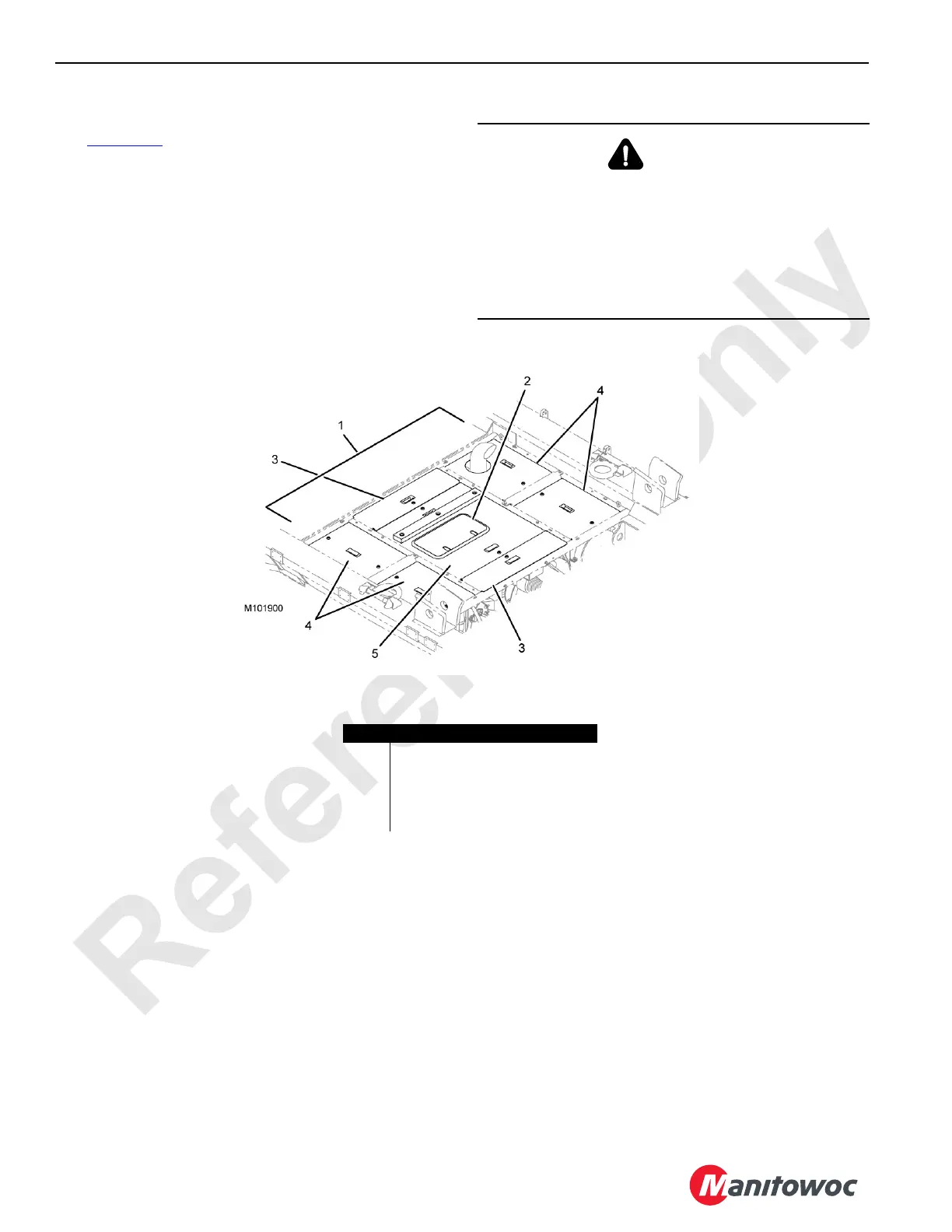

See Figure 7-10 for location of components.
The engine enclosure consists of seven cover panels that
can be removed to allow access for engine service.
Do not operate the crane without the cover panels in place
and properly fastened.
See the engine enclosure assembly drawing for the location
of enclosure components.
WARNING
Personal Injury Hazard—Heavy Objects!
The panels over each DPF weigh approximately
9 kg (20 lb).
The panel over the engine weighs approximately
25 kg (55 lb).
To prevent serious injury, use the appropriate lifting
equipment when lifting or removing these objects.
Item Description
1 Engine Enclosure
2 Hatch in Enclosure Panel
3 Enclosure Panel, 5 kg (11 lb)
4 Enclosure Panel, 9 kg (20 lb)
5 Enclosure Panel, 25 kg (55 lb)
FIGURE 7-10
