Manitowoc MLC650 Service Maintenance Manual

Reference Only
ACCESSORIES MLC650 SERVICE/MAINTENANCE MANUAL
10-18
Published 09-09-16, Control # 229-09

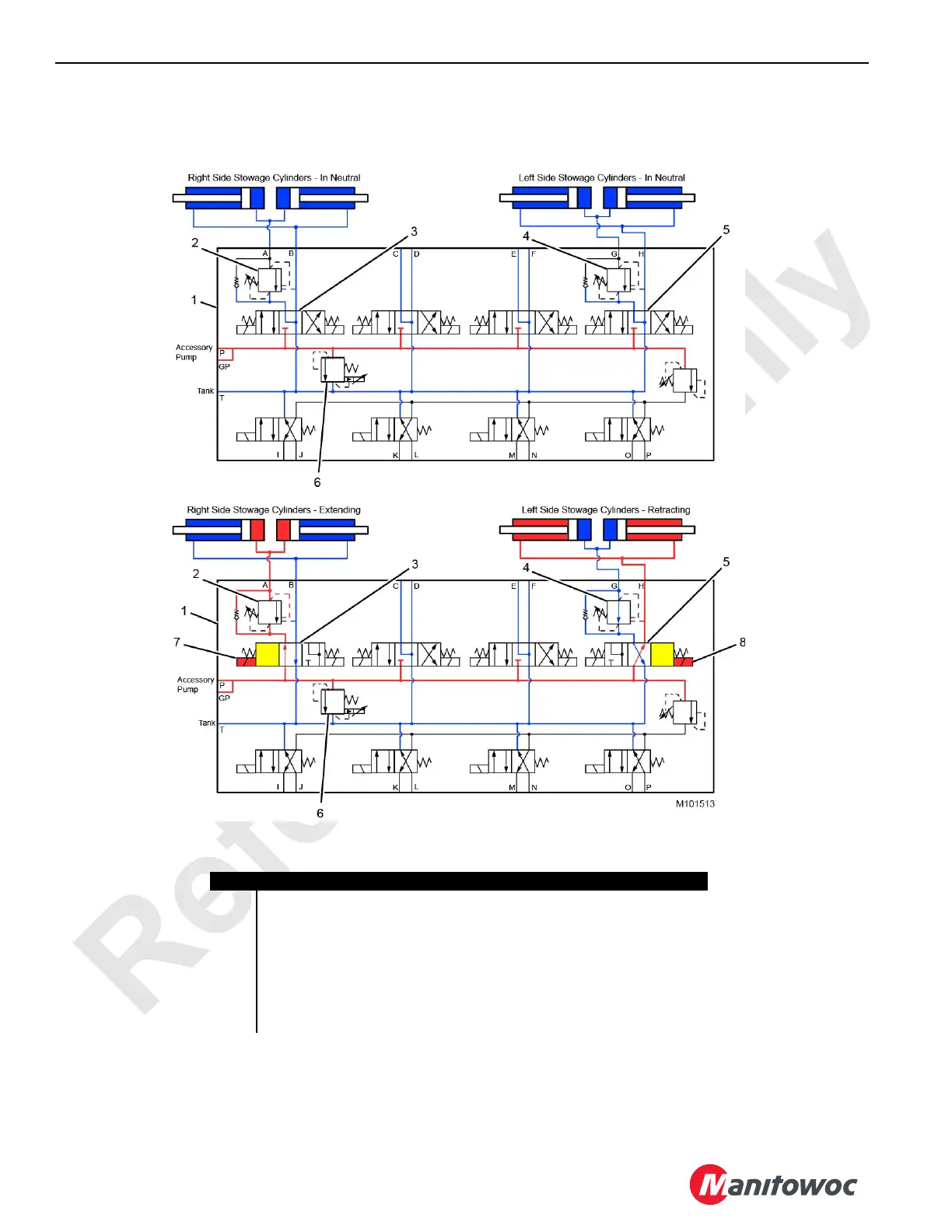

Rotating Bed Jack Stowage Cylinders Hydraulic Schematic
Item Description
1 Accessory Valve Manifold
2 Right Stowage Cylinders Holding Valve (set at 3600 psi)
3 Valve Spool (right stowage cylinders)
4 Left Stowage Cylinders Holding Valve (set at 3600 psi)
5 Valve Spool (left stowage cylinders)
6 Proportional Pressure Relief Valve (operating pressure = 300 bar [5076 psi])
7 Extend Solenoid (right stowage cylinders)
8 Retract Solenoid (left stowage cylinders)
FIGURE 10-14
