HOISTS MLC650 SERVICE/MAINTENANCE MANUAL
5-24
Published 09-09-16, Control # 229-09

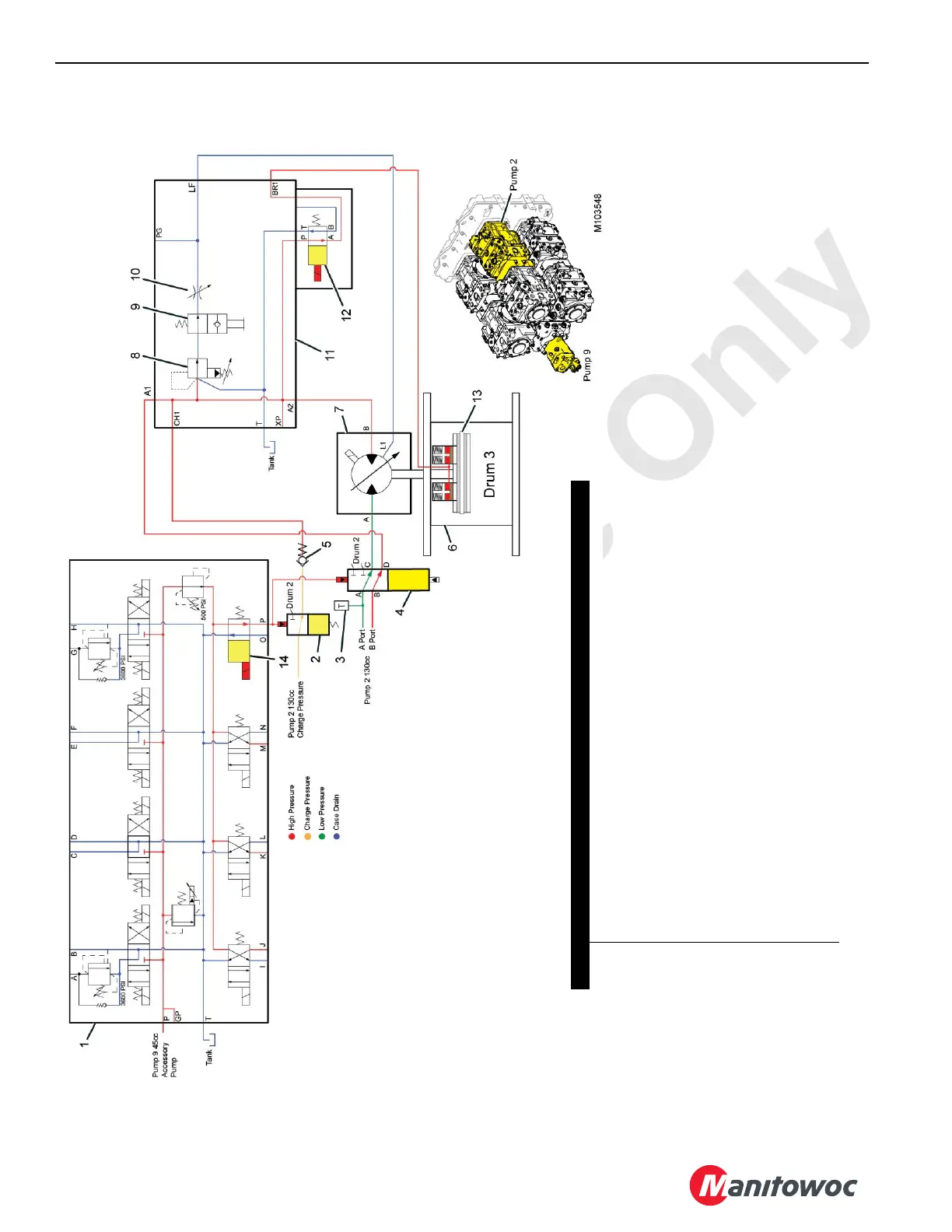

Drum 3 Lowering Hydraulic Schematic
FIGURE 5-11
Item Description
1 Accessory Valve Manifold 2 Pump 2 Charge Pressure Pilot Valve (directional control) 3 Pump 2 Pressure Transducer (drum 3 psi) 4 Drum 2/Drum3 Diverter Valve (directional control) 5 Charge Pressure Check Valve (0,35 bar [5 psi]) 6 Drum 3 Gearbox and Brake Assembly 7 Hydraulic Motor (variable 160 cc) 8 Pilot-Operated Sequence Valve (balanced piston) 9 Manually Operated Service Valve (2-position 2-way poppet control)
10 Flow Control Valve (6 GPM)
11 Loop Flushing Valve (6 GPM at 200 psi)
12 Drum Brake Release Solenoid Valve (2-position 4-way directional control) 13 Drum Brake Pressurized (disengaged) 14 Drum 2/Drum 3 Selector Solenoid Valve
