Manitowoc MLC650 - Manifold Identification; Pressure Transducer and Accessories Manifold

Reference Only
HYDRAULIC SYSTEM MLC650 SERVICE/MAINTENANCE MANUAL
2-10
Published 09-09-16, Control # 229-09
MANIFOLD IDENTIFICATION
Pressure Transducer and Accessories
Manifold

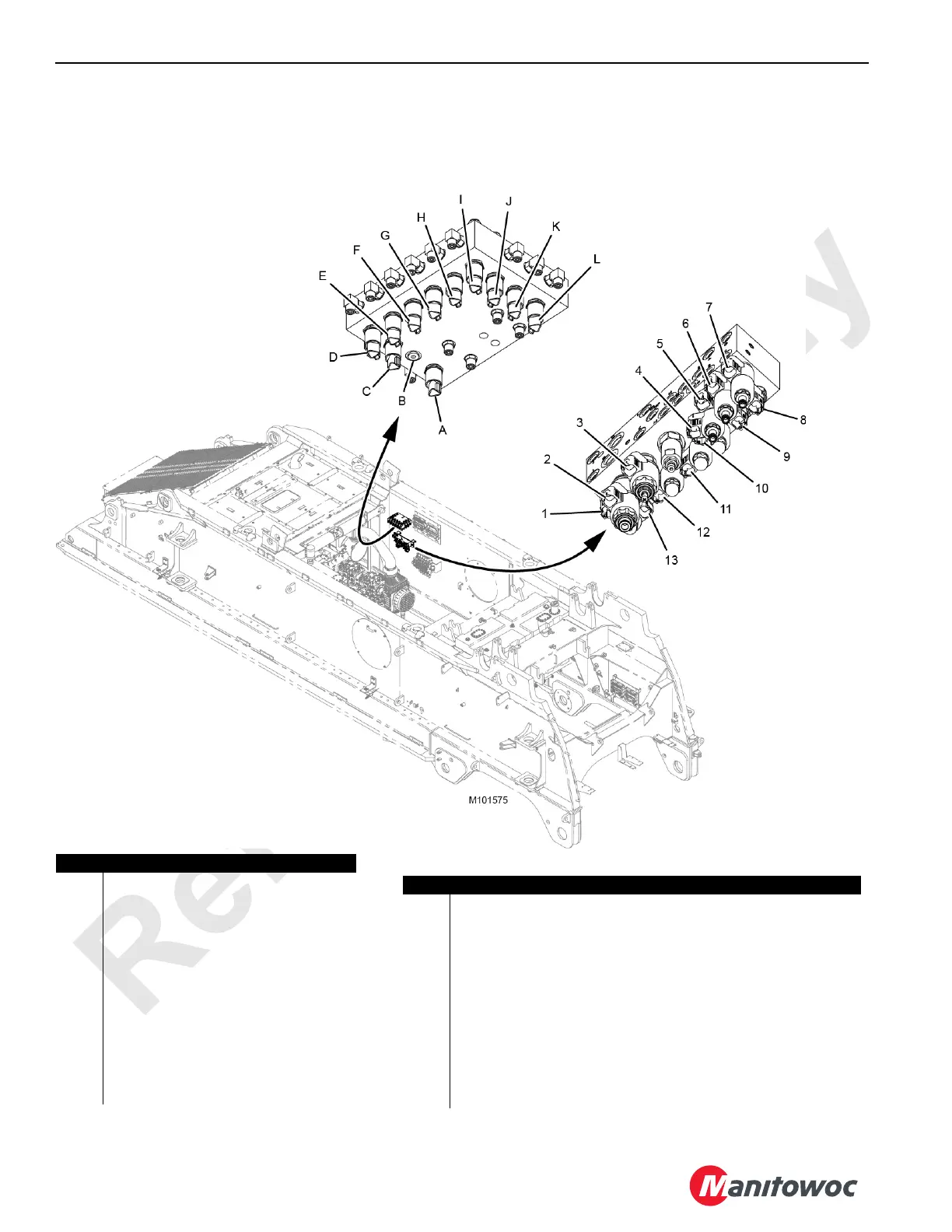

FIGURE 2-12
Pressure Transducer Manifold
Item Description
A Left Travel/Drum 1 Up—Pump 3 Pressure Transducer
BN/A
C Drum 1/Luffing Up—Pump 1 Pressure Transducer
D VPC Retract—Pump 7 Pressure Transducer
E VPC Extend—Pump 7 Pressure Transducer
F Drum 4 Up—Pump 5 Pressure Transducer
G Drum 3/Drum 2 Up—Pump 2 Pressure Transducer
H Swing Right—Pump 8 Pressure Transducer
I Swing Left—Pump 8 Pressure Transducer
J Accessory Pressure—Pump 9 Pressure Transducer
K Drum 5 Up—Pump 6 Pressure Transducer
L Right Travel/Drum 2—Pump 4 Pressure Transducer
Accessory Valve Manifold Solenoids
Item Description
1 Rotating Bed Pin Puller—Retract
2 Rotating Bed Pin Puller—Extend
3 Accessory Pressure Proportional Control
4 Cab Tilt—Extend
5 Cab Tilt—Retract
6 Right Cylinder Stowage—Extend
7 Left Cylinder Stowage—Extend
8 Left Cylinder Stowage—Retract
9 Right Cylinder Stowage—Retract
10 Drum2/Drum 3 Diverter
11 Right Travel Drum 2 Diverter
12 Drum 1/Drum 6 Diverter
13 Left Travel Drum 1 Diverter
