Manitowoc Published 09-09-16, Control # 229-09 1-7
MLC650 SERVICE/MAINTENANCE MANUAL INTRODUCTION
1
Solenoid Valve Identification
Each hydraulic valve solenoid is assigned a solenoid number
used in Manitowoc Cranes training classes (Table 1-1
). The
pin number corresponds to the control module connector pin
number, as represented in the electrical schematics.

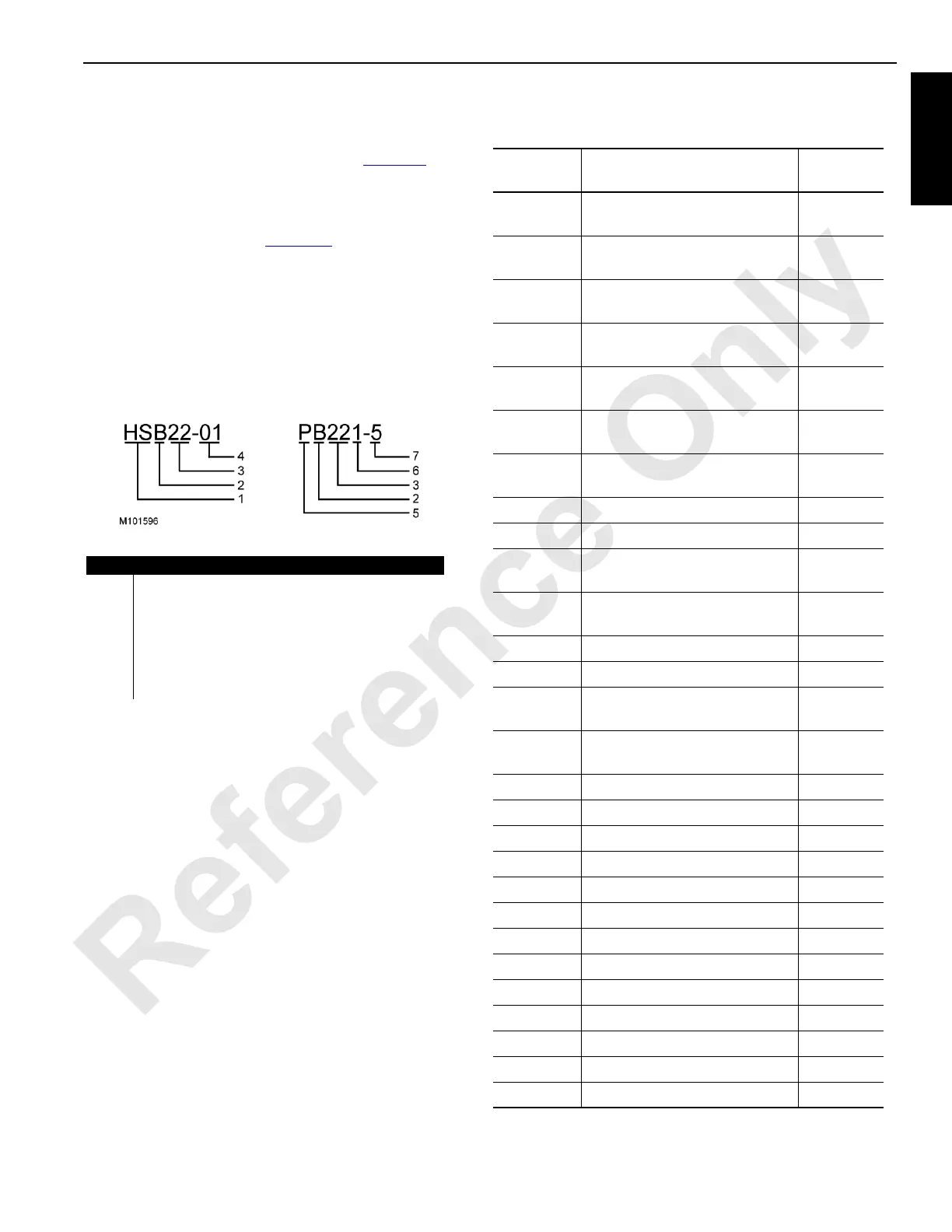

The control module information contained in each solenoid
or pin number is illustrated in Figure 1-3
. In this example, for
the right rear carbody jack raise solenoid, the following
information is contained:
• Control module resides on CAN Bus B
• Control module index is 22
• Control module digital output is ODH3A-01
• Control module output signal is at pin 5, connector KS-1
FIGURE 1-3
Item Description
1 Hydraulic Solenoid Reference Designator
2 CAN Bus (- = controller resides on multiple buses)
3 CAN Bus Index
4 Digital Output Number
5 Connector Reference Designator
6 Connector Number (1 = KS1, 2 = KS2)
7 Pin Number
Table 1-1. Hydraulic Solenoid Identification
Solenoid
Number
Description
Pin
Number
HSB22-01
Right Rear Carbody Jack
Raise
PB221-5
HSB22-02
Right Rear Carbody Jack
Lower
PB221-6
HSB11-04
Left Crawler/Carbody Pin
Puller Extend
PB112-22
HSB11-05
Left Crawler/Carbody Pin
Puller Retract
PB112-5
HSB11-06
Right Crawler/Carbody Pin
Puller Extend
PB112-15
HSB11-07
Right Crawler/Carbody Pin
Puller Retract
PB112-14
HSB11-15
Remote/Manual Jacking
Selector Valve
PB112-7
HSB11-23 Left Front Carbody Jack Raise PB111-1
HSB11-24 Left Front Carbody Jack Lower PB112-12
HSB11-25
Right Front Carbody Jack
Raise
PB111-15
HSB11-26
Right Front Carbody Jack
Lower
PB111-42
HSB11-27 Left Rear Carbody Jack Raise PB111-28
HSB11-28 Left Rear Carbody Jack Lower PB111-2
HS-10-03
Rear Frame Pin Pusher
Extend
P-102-2
HS-10-04
Rear Frame Pin Pusher
Retract
P-102-22
HS-10-11 Cab Tilt Up P-102-24
HS-10-12 Cab Tilt Down P-102-25
HS-10-13 Left Track/Drum 1 Diverter P-102-6
HS-10-14 Right Track/Drum 2 Diverter P-102-16
HS-10-15 Drum 1/Drum 6 Diverter P-102-7
HS-10-16 Drum 3/Drum 2 Diverter P-102-26
HS-10-23 Left Front Jack Extend P-101-1
HS-10-24 Left Front Jack Retract P-102-12
HS-10-25 Right Front Jack Extend P-101-15
HS-10-26 Right Front Jack Retract P-101-42
HS-10-27 Left Rear Jack Extend P-101-28
HS-10-28 Left Rear Jack Retract P-101-2
HSC11-02 Drum 1 Left Brake Release PC112-21
