Manitowoc MLC650 - Swing Hydraulic Schematic

Reference Only
Manitowoc Published 09-09-16, Control # 229-09 6-3
MLC650 SERVICE/MAINTENANCE MANUAL SWING SYSTEM
6
6

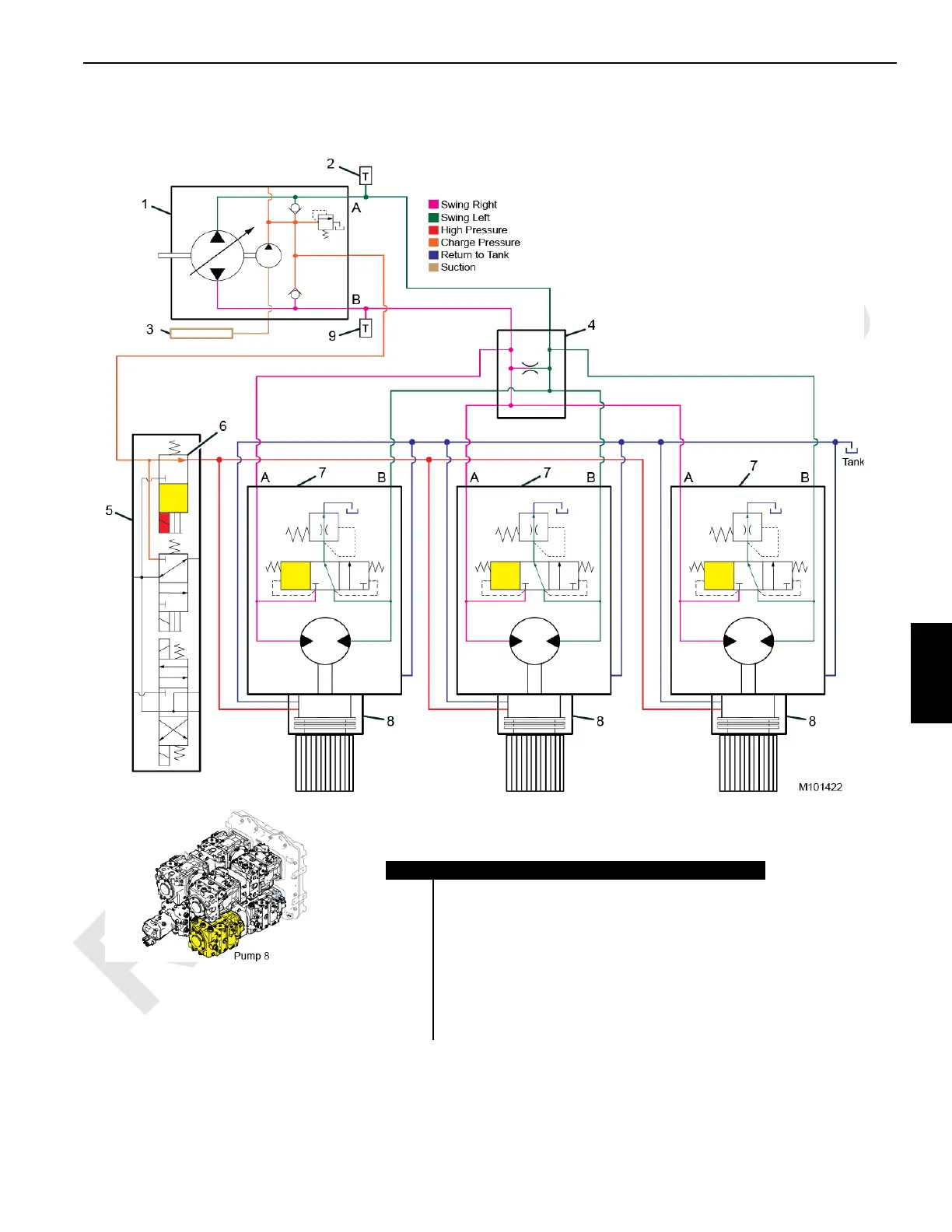

Swing Hydraulic Schematic
FIGURE 6-1
Item Description
1 Variable-Displacement Hydraulic Pump 100 cc
2 Pump 8 Port A Pressure Transducer (swing left psi)
3 Suction Manifold
4 Triple Swing Manifold
5 Adapter Frame Valve Assembly
6 Swing Brake Solenoid Valve
7 Fixed-Displacement Hydraulic Motor 75 cc
8 Gearbox and Brake Assembly
9 Pump 8 Port B Pressure Transducer (swing right psi)
