Manitowoc Published 09-09-16, Control # 229-09 2-17
MLC650 SERVICE/MAINTENANCE MANUAL HYDRAULIC SYSTEM
2
2

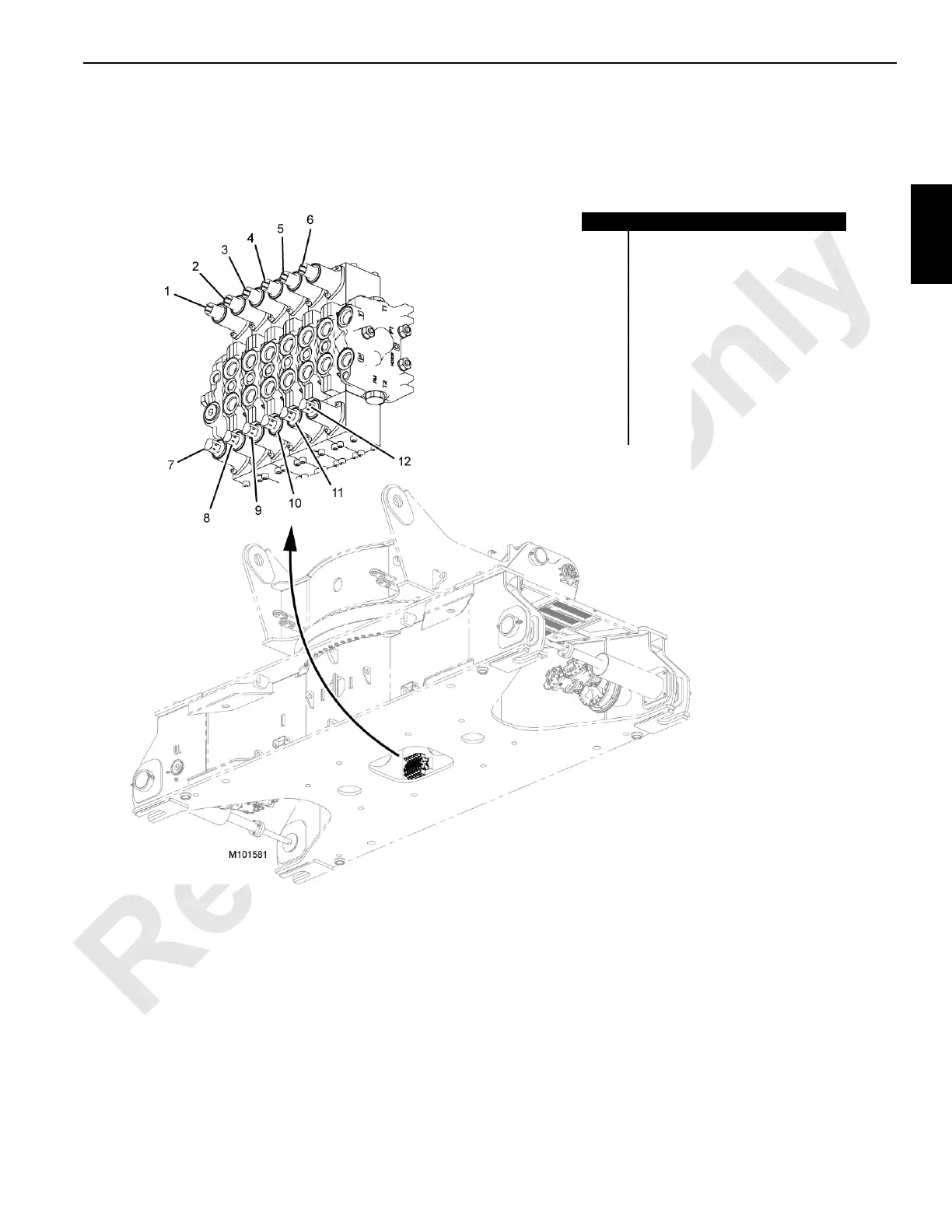

Lower Accessories Valve Assembly
(With Jacking Valve)
Item Description
1 Left Rear Carbody Jack—Retract
2 Left Front Carbody Jack—Retract
3 Right Rear Carbody Jack—Retract
4 Right Front Carbody Jack—Retract
5 Left Crawler Pin—Extend
6 Right Crawler Pin—Extend
7 Right Crawler Pin—Retract
8 Left Crawler Pin—Retract
9 Right Front Carbody Jack—Extend
10 Right Rear Carbody Jack—Extend
11 Left Front Carbody Jack—Extend
12 Left Rear Carbody Jack—Extend
FIGURE 2-20
