Reference Only
UNDERCARRIAGE MLC650 SERVICE/MAINTENANCE MANUAL
8-16
Published 09-09-16, Control # 229-09

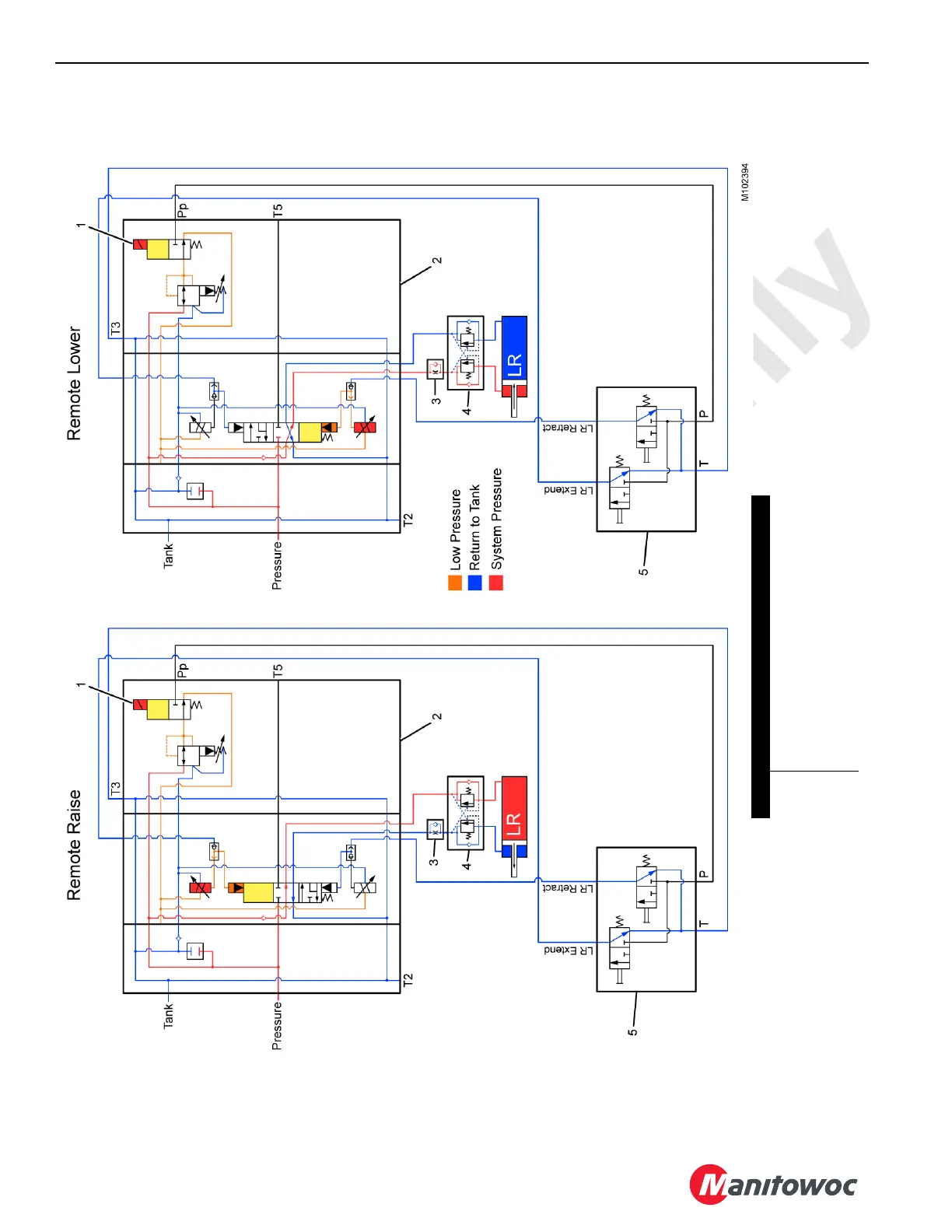

Carbody Jacks Hydraulic Schematic
(Remote Control)
FIGURE 8-8
Item Description
1 Selector Solenoid Valve
2 Six-Section Lower Accessory Valve Assembly
3 Orifice With Bypass Check Valve
4 Counterbalance Valve
5 Carbody Manual Control Manifold
