Manitowoc MLC650 - Adapter Frame-To-Rotating Bed Rear Pin Pullers Electrical Schematic

Reference Only
Manitowoc Published 09-09-16, Control # 229-09 10-7
MLC650 SERVICE/MAINTENANCE MANUAL ACCESSORIES
10
10

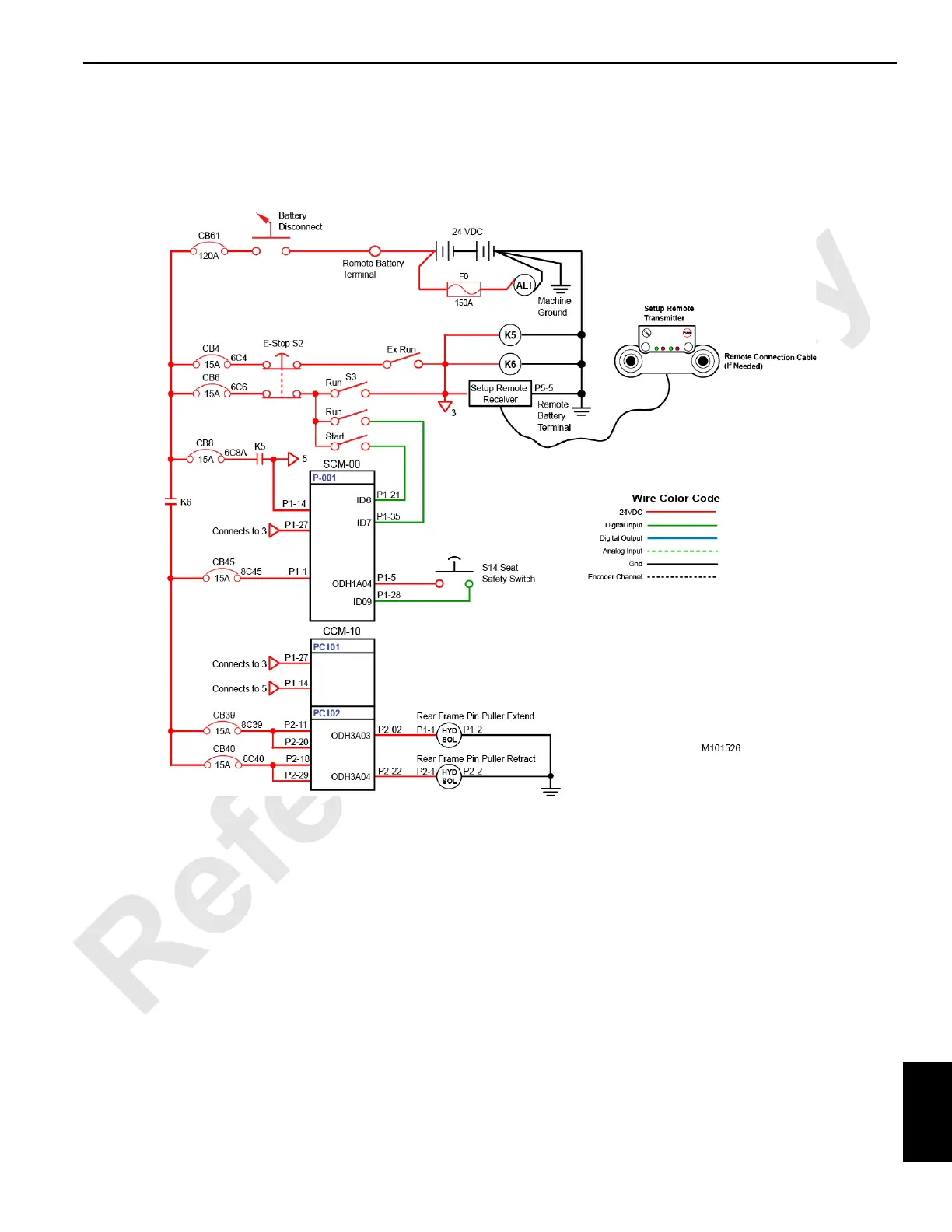

Adapter Frame-to-Rotating Bed Rear Pin Pullers Electrical Schematic
FIGURE 10-6
