Manitowoc Published 09-09-16, Control # 229-09 10-55
MLC650 SERVICE/MAINTENANCE MANUAL ACCESSORIES
10
10

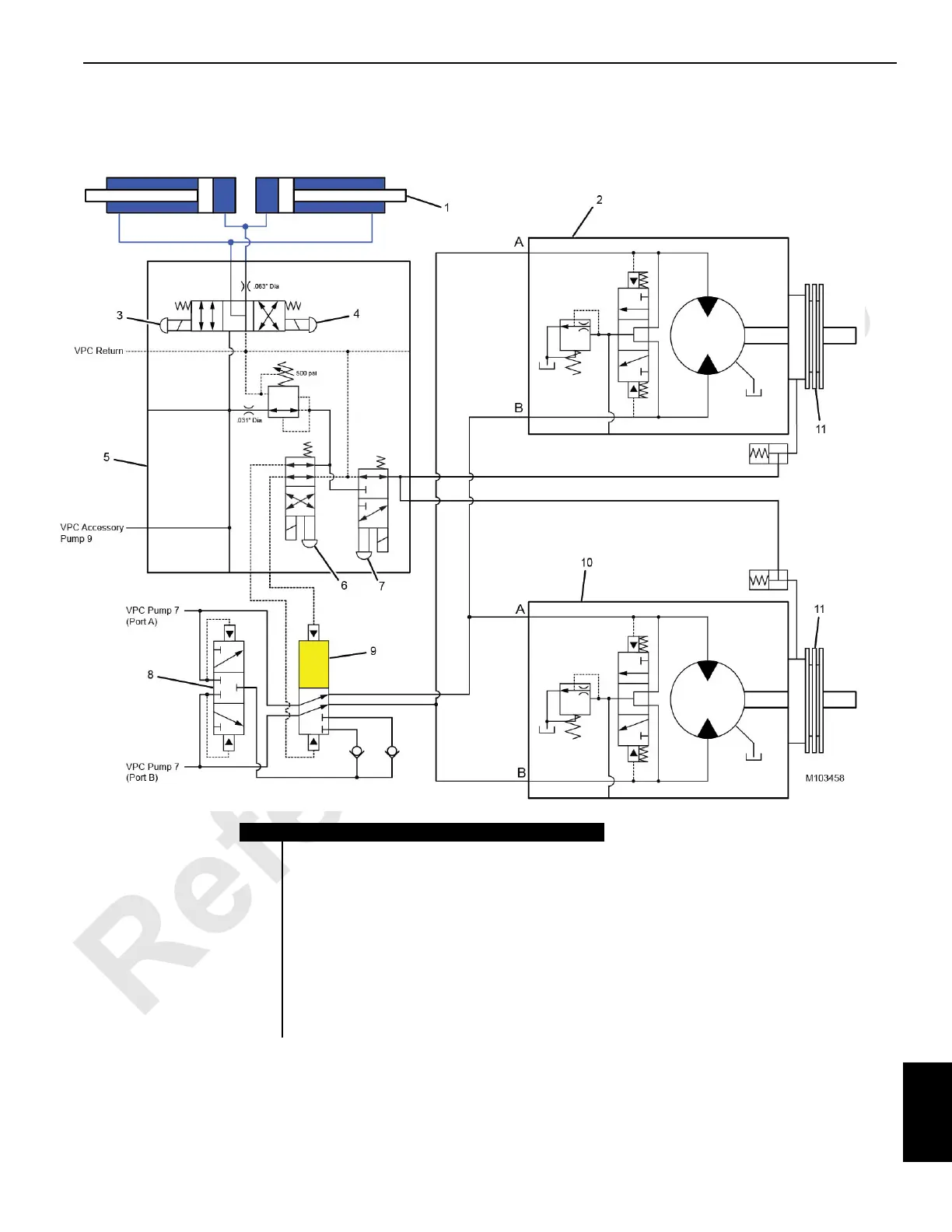

VPC-MAX Trolley Hydraulic Schematic
Item Description
1 Trolley Pin Puller Cylinder (qty 2)
2 Left Trolley Motor (100 cc fixed)
3 Pin Pullers Retract Solenoid
4 Pin Pullers Extend Solenoid
5 VPC-MAX Actuator Valve
6 VPC 1/VPC 2 Diverter Solenoid Valve
7 Brake Release Solenoid Valve
8 Hot Oil Shuttle Valve
9 VPC 1/VPC 2 Diverter Pilot Valve
10 Right Trolley Motor (100 cc fixed)
11 Brake Assembly (qty 2)
FIGURE 10-42
