ACCESSORIES MLC650 SERVICE/MAINTENANCE MANUAL
10-28
Published 09-09-16, Control # 229-09

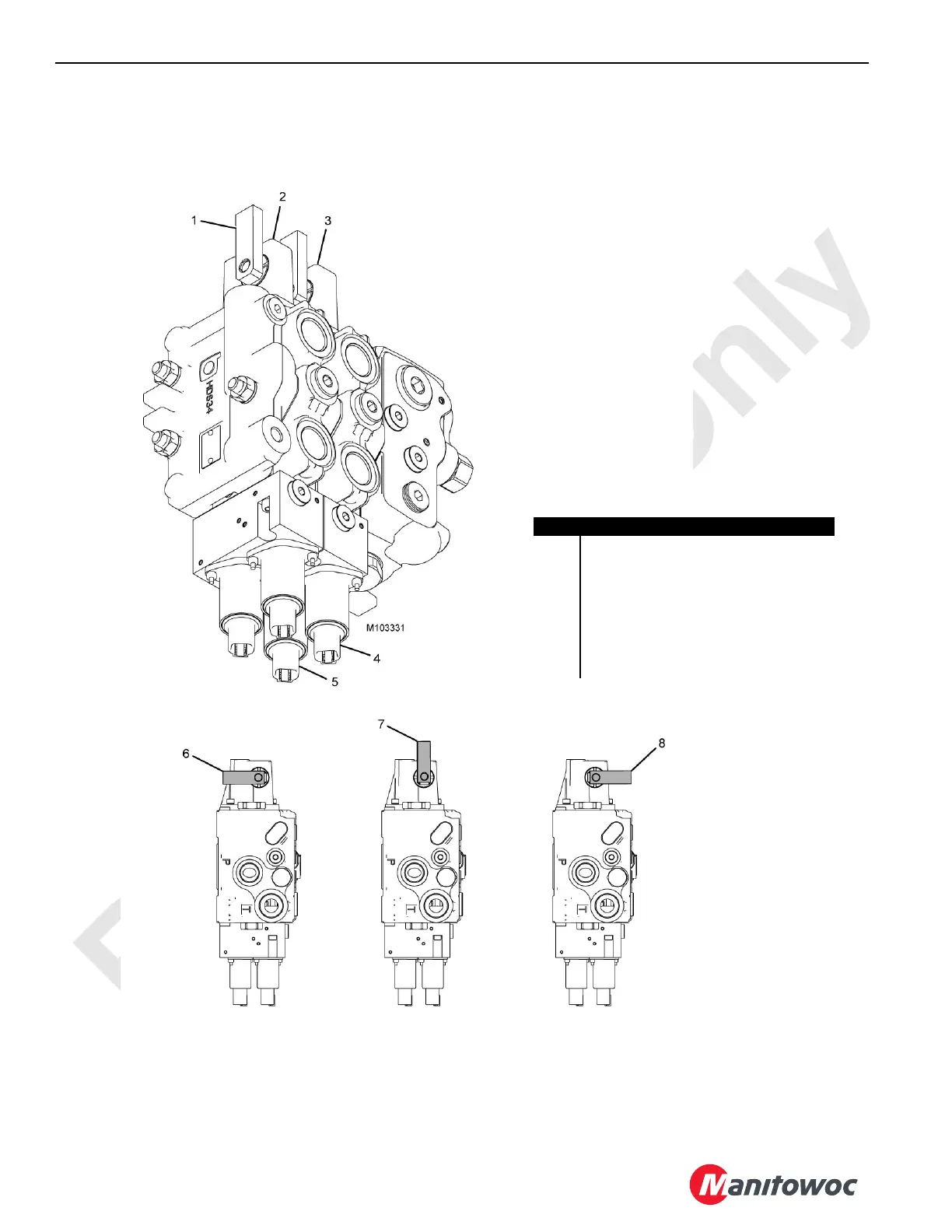

Mast Assist and Self-Assembly Cylinders
Valve Assembly
Item Description
1 Manual Control Lever
2 Self-Assembly Cylinder Control Valve
3 Mast Raise Cylinder Control Valve
4 Retract Solenoid (qty 2)
5 Extend Solenoid (qty 2)
6 Extend Position
7 Neutral Position
8 Retract Position
FIGURE 10-21
