HYDRAULIC SYSTEM MLC650 SERVICE/MAINTENANCE MANUAL
2-22
Published 09-09-16, Control # 229-09
Replacing the Desiccant Breather Cartridge
See Figure 2-21 for the following procedure.
1. Unscrew the breather cartridge (2) from the hydraulic
tank fitting (3).
2. Unscrew the reusable cap (1) from the breather
cartridge and dispose of the used breather cartridge
properly. Do not discard the cap.
3. Remove the protective caps from the top and bottom of
the new breather cartridge.
4. Hand tighten the reusable cap to the new breather
cartridge.
5. Hand tighten the breather cartridge to the hydraulic tank
fitting.

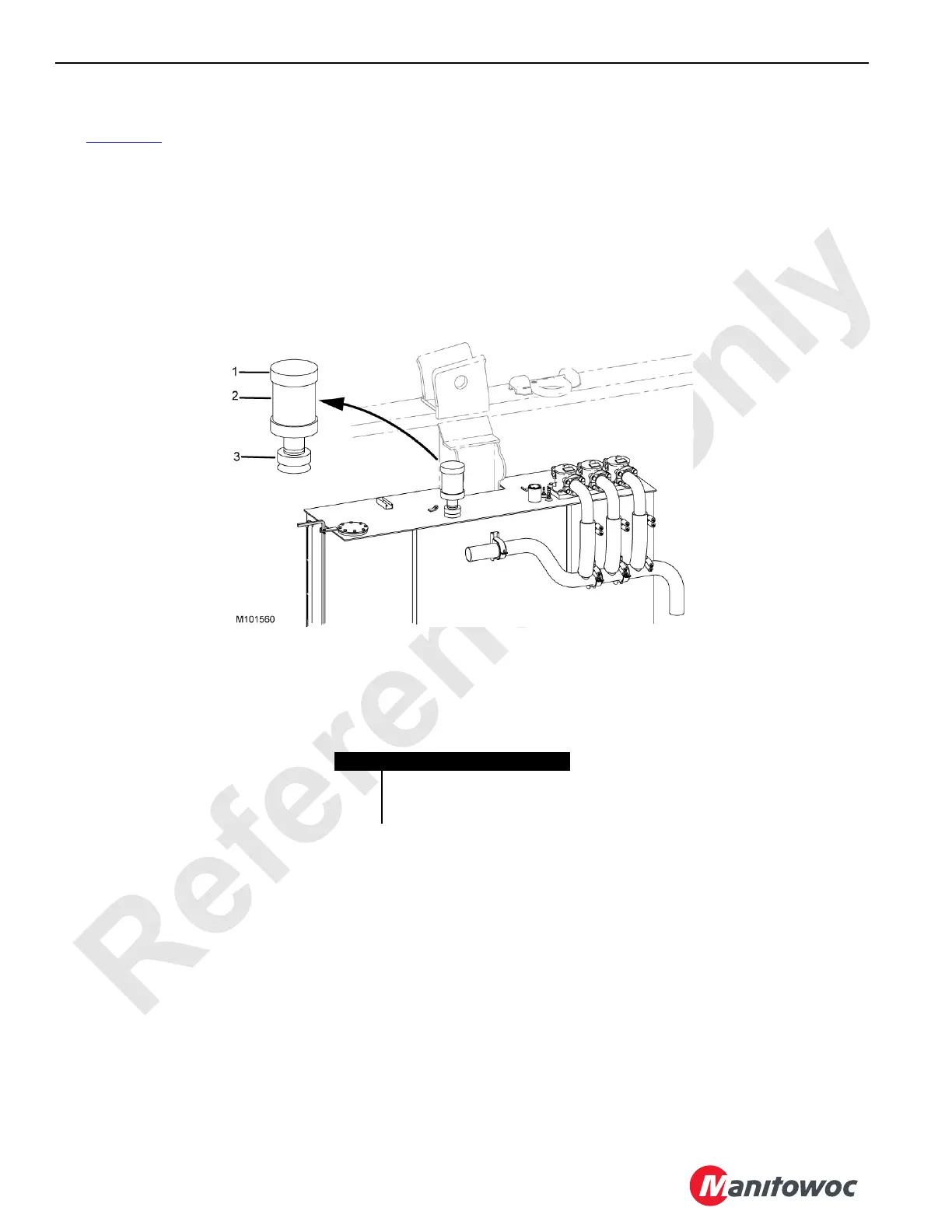

FIGURE 2-21
Item Description
1 Reusable Cap
2 Breather Cartridge
3 Hydraulic Tank Fitting
