Manitowoc MLC650 Service Maintenance Manual

Reference Only
Manitowoc Published 09-09-16, Control # 229-09 10-45
MLC650 SERVICE/MAINTENANCE MANUAL ACCESSORIES
10
10

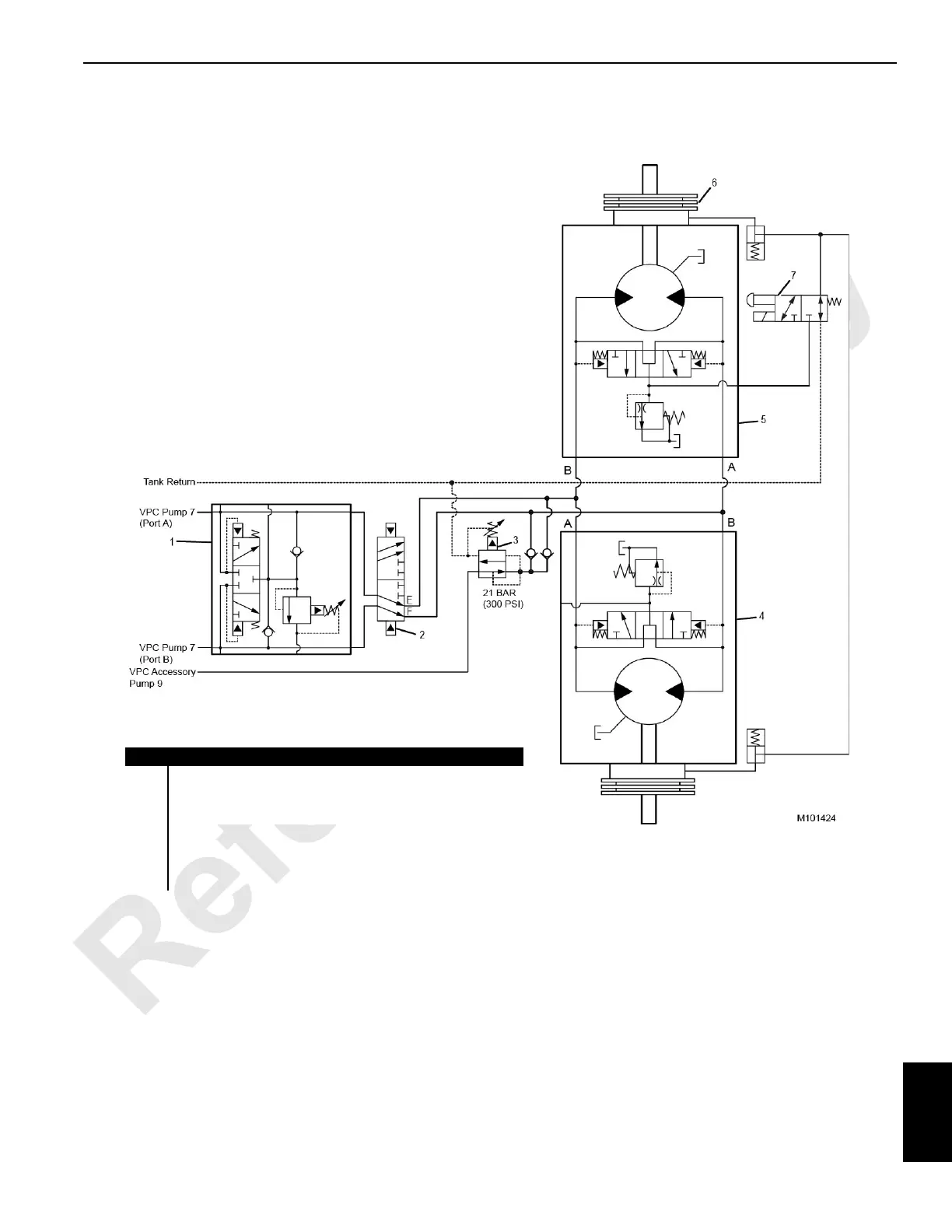

VPC Counterweight Tray Hydraulic
Schematic
Item Description
1 Hot Oil Shuttle Valve (VPC-MAX only)
2 VPC 1/VPC 2 Diverter Pilot Valve (VPC-MAX only)
3 Pressure Reducing / Relief Valve (set at 21 bar [300 psi])
4 Right VPC Counterweight Tray Motor (55 cc fixed)
5 Left VPC Counterweight Tray Motor (55 cc fixed)
6 Brake Assembly
7 Brake Release Solenoid Valve
FIGURE 10-34
