ACCESSORIES MLC650 SERVICE/MAINTENANCE MANUAL
10-14
Published 09-09-16, Control # 229-09

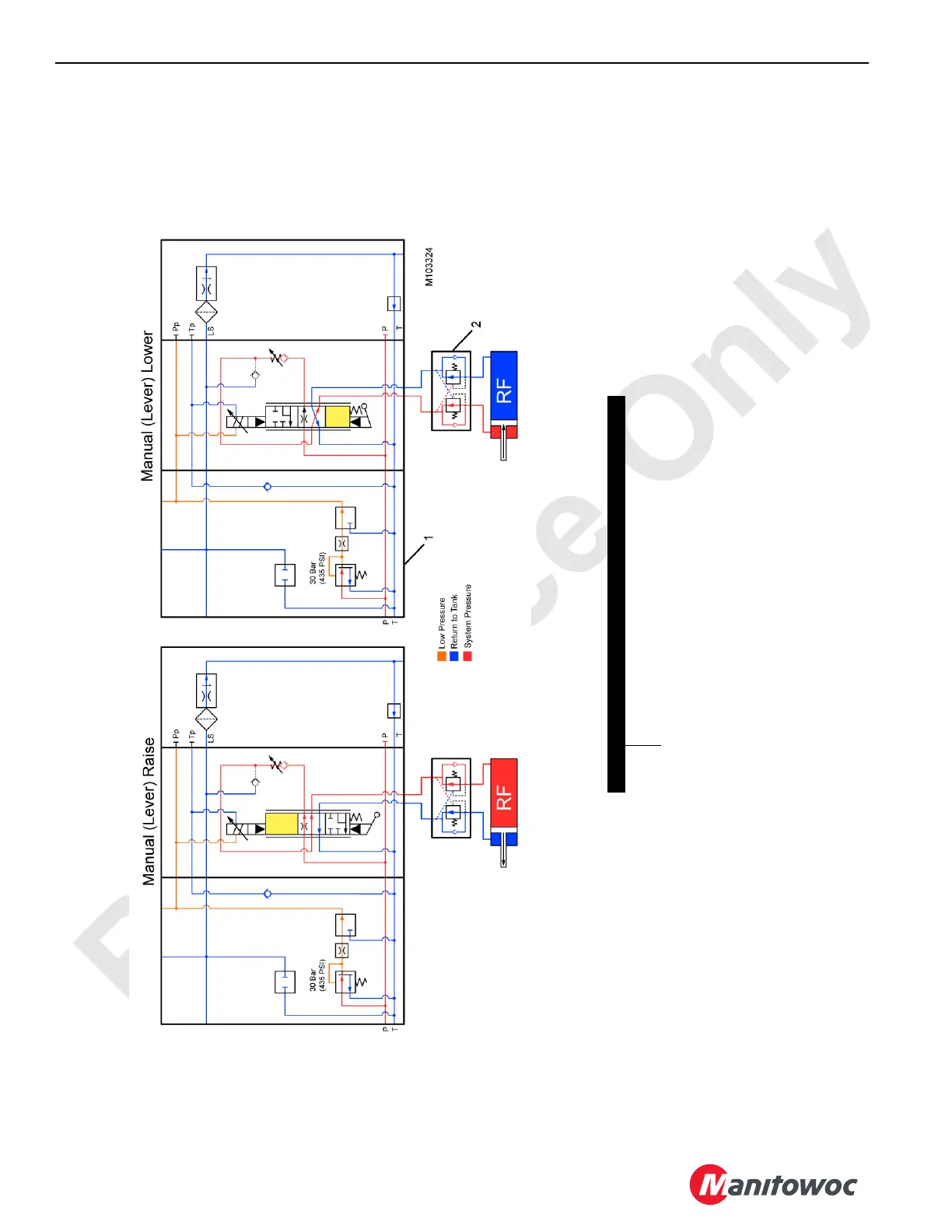

Rotating Bed Jacks Hydraulic Schematic
(Manual Control)
FIGURE 10-11
Item Description
1 Upperworks Jacking and Rigging Winch Valve Assembly
2 Counterbalance Valve (qty 4) (set at 248 bar [3600 psi])
