MLC650 SERVICE/MAINTENANCE MANUAL ELECTRICAL SYSTEM
3
Input/Output—Large (IOL) Module
IOLs control the devices connected to them and
communicate with CSMs or CCMs connected to their bus.
IOLs have twice the device capacity as input/output—small
(IOS) modules.
There are six IOL modules mounted on the rotating bed
(Figure 3-8
):
• MWIOLC30
• MWIOLC32
• MWIOLC33
• MWIOLC34
• MWIOLC31
• MWIOLC35 (VPC-MAX)

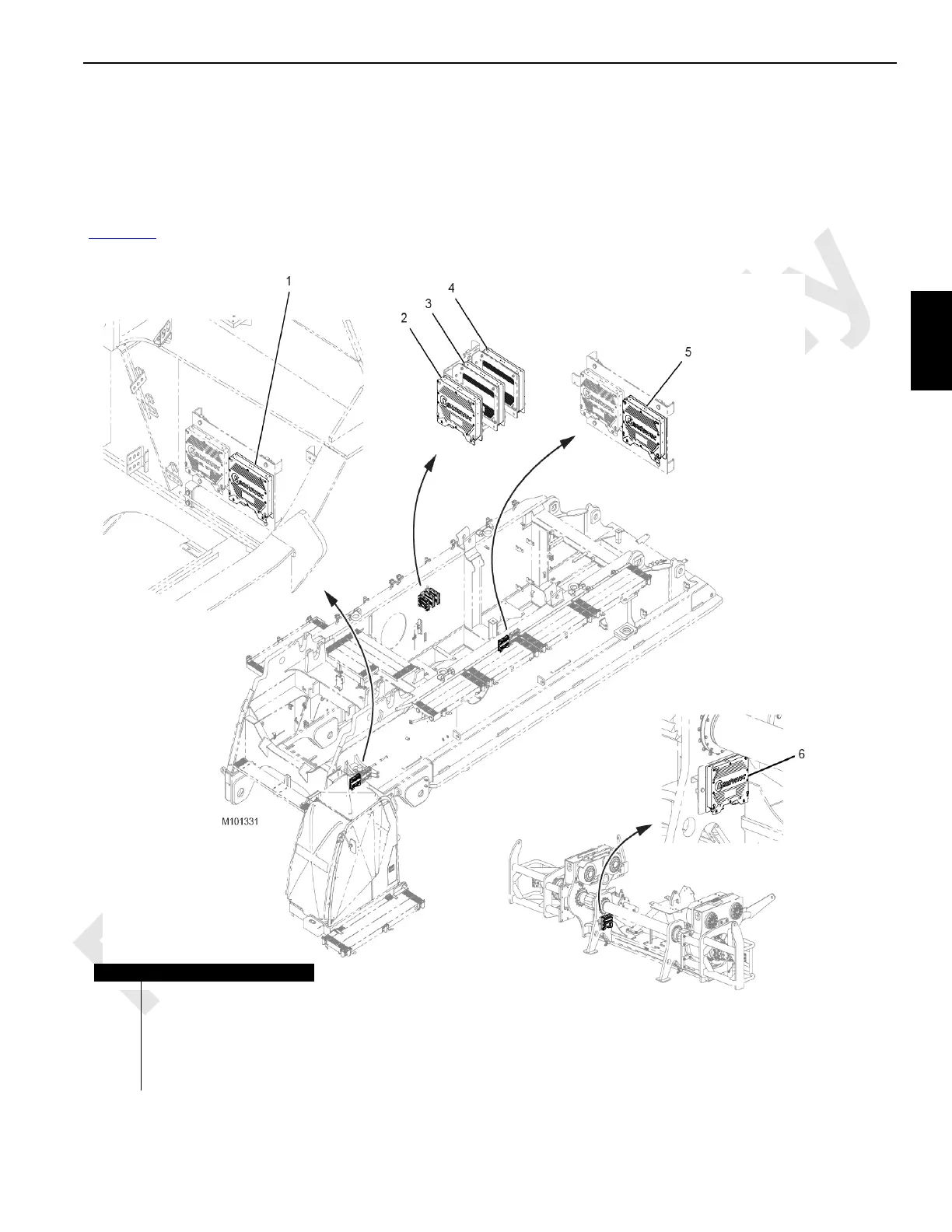

FIGURE 3-8
Item Description
1MWIOLC30
2MWIOLC32
3MWIOLC33
4MWIOLC34
5MWIOLC31
6
MWIOLC35
(VPC-MAX)
