Reference Only
Manitowoc Published 09-09-16, Control # 229-09 8-17
MLC650 SERVICE/MAINTENANCE MANUAL UNDERCARRIAGE
8
8

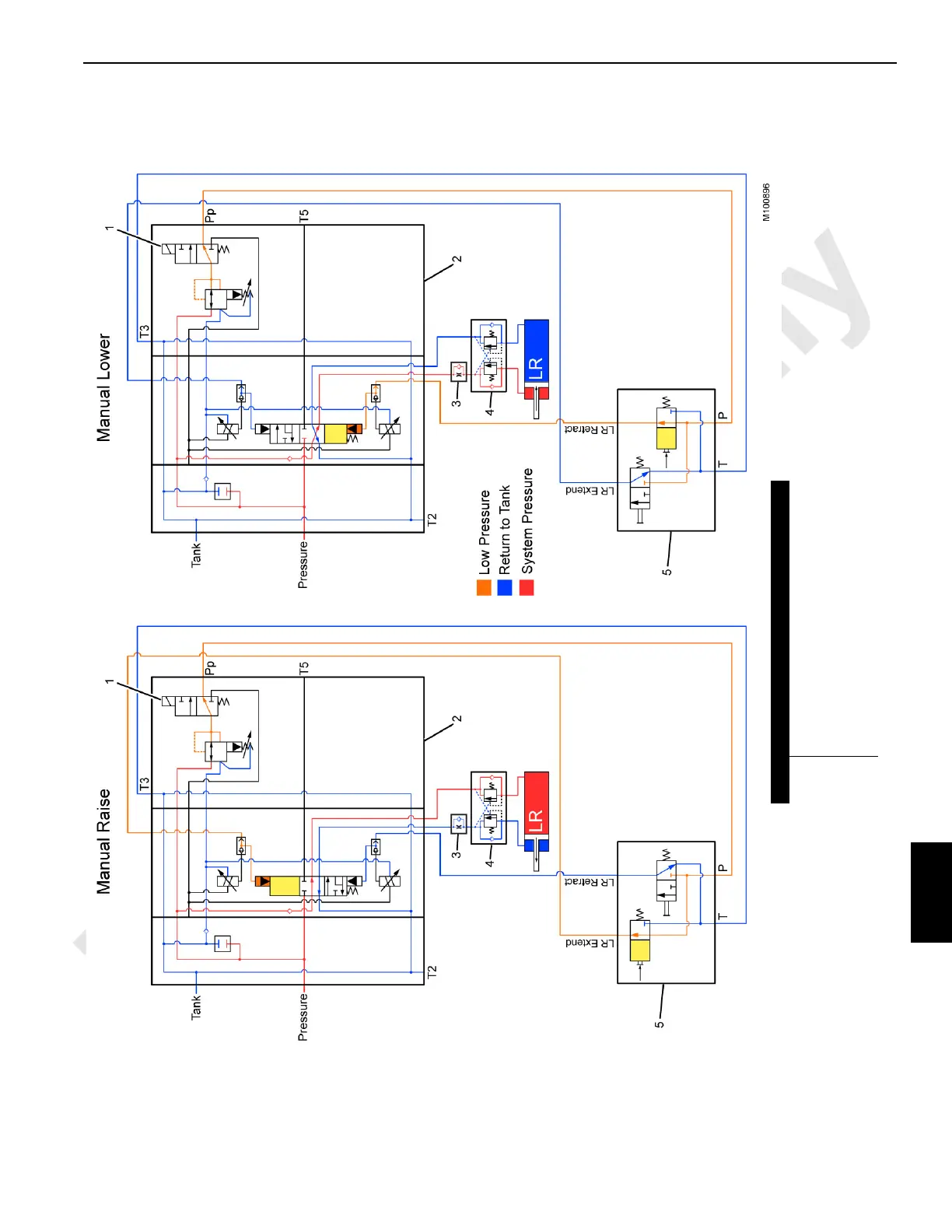

Carbody Jacks Hydraulic Schematic
(Manual Control)
FIGURE 8-9
Item Description
1 Selector Solenoid Valve
2 Six-Section Lower Accessory Valve Assembly
3 Orifice With Bypass Check Valve
4 Counterbalance Valve
5 Carbody Manual Control Manifold
