ACCESSORIES MLC650 SERVICE/MAINTENANCE MANUAL
10-62
Published 09-09-16, Control # 229-09

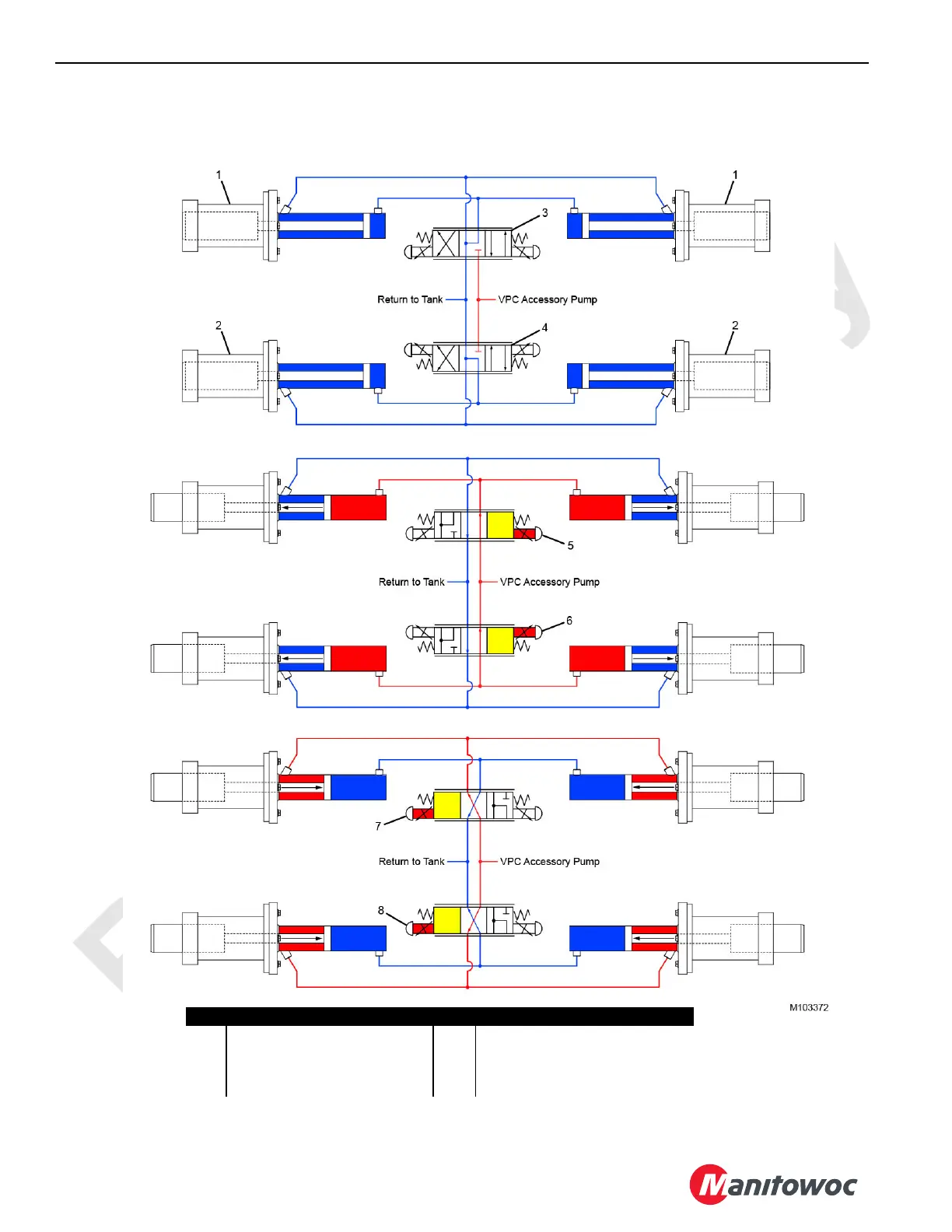

VPC-MAX Beam Pin Puller Hydraulic Schematic
FIGURE 10-49
Item Description Item Description
1 Upper Pin Puller Cylinder (qty 2) 5 Upper Pin Puller Extend Solenoid
2 Lower Pin Puller Cylinder (qty 2) 6 Lower Pin Puller Extend Solenoid
3 Upper Pin Puller Valve Spool 7 Upper Pin Puller Retract Solenoid
4 Lower Pin Puller Valve Spool 8 Lower Pin Puller Retract Solenoid
