Manitowoc MLC650 Service Maintenance Manual

Reference Only
Manitowoc Published 09-09-16, Control # 229-09 10-11
MLC650 SERVICE/MAINTENANCE MANUAL ACCESSORIES
10
10

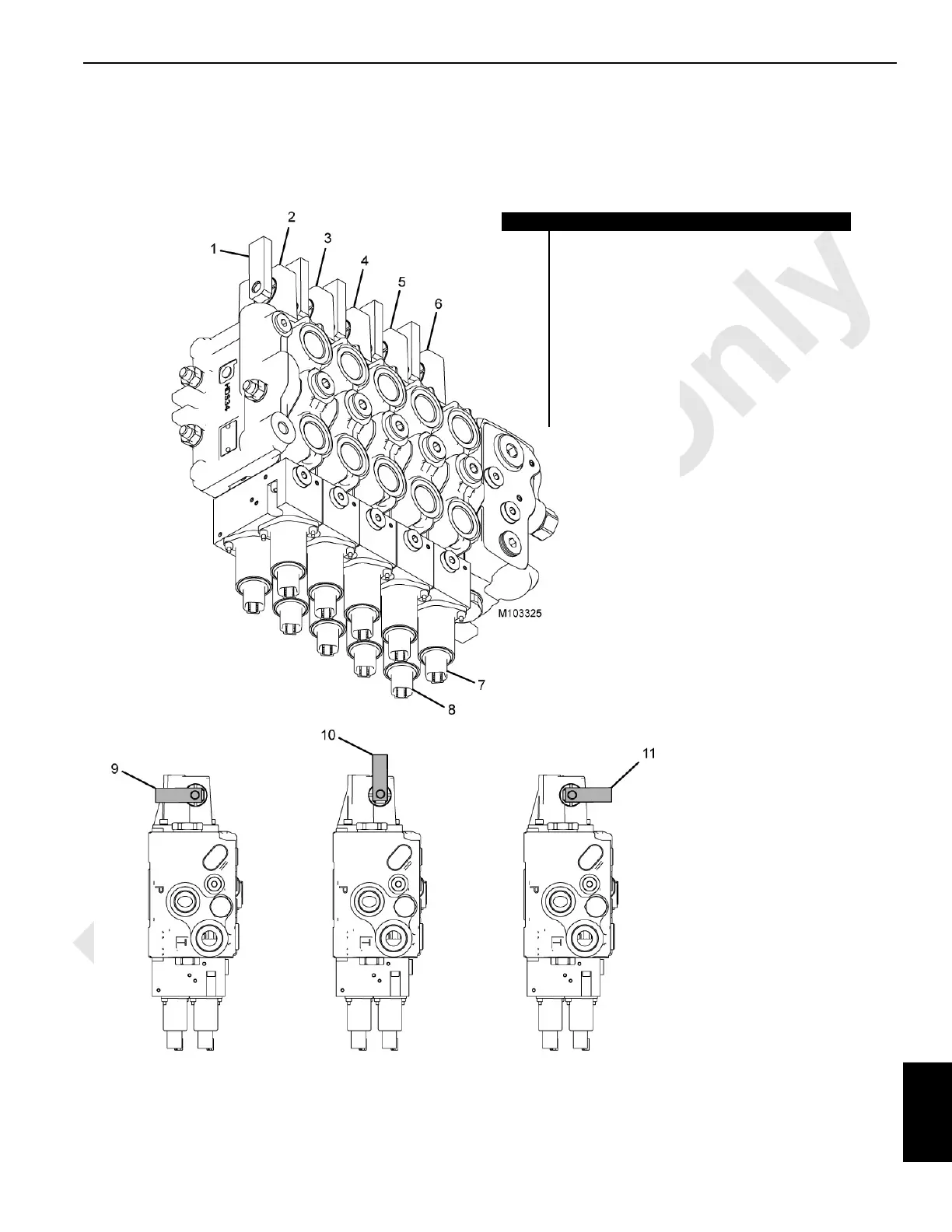

Upperworks Jacking and Rigging Winch
Valve Assembly
Item Description
1 Manual Control Lever (qty 5)
2 Right Front Rotating Bed Jack Control Valve
3 Right Rear Rotating Bed Jack Control Valve
4 Left Front Rotating Bed Jack Control Valve
5 Left Rear Rotating Bed Jack Control Valve
6 Rigging Winch Control Valve
7 Retract Solenoid (qty 5)
8 Extend Solenoid (qty 5)
*9 Extend Position
10 Neutral Position
*11 Retract Position
FIGURE 10-8
* The manual control lever positions for
the rigging winch (6) are as follows:
9 = Spool In
11 = Spool Out
