UNDERCARRIAGE MLC650 SERVICE/MAINTENANCE MANUAL
8-10
Published 09-09-16, Control # 229-09
CARBODY JACK CYLINDERS AND
CARBODY/CRAWLER PIN PULLERS
CARBODY JACK CYLINDERS CONTROL
See Figure 8-5 for the location of the following components:
• Carbody jack cylinders
• Carbody manual control manifold
See Figure 8-7
for a hydraulic schematic detail of all of the
carbody jack circuits when in neutral.
See Figure 8-8
for a hydraulic schematic detail of a single
carbody jack circuit when using the setup remote control.
See Figure 8-9
for a hydraulic schematic detail of a single
carbody jack circuit when using the carbody manual control.
Movement of the carbody jacks is controlled by one of the
following methods:
• Setup remote control
• Carbody manual control manifold
Carbody Manual Control
The carbody jacks can be manually controlled using the
hydraulic power unit (HPU) and the carbody manual control
manifold located on the front of the carbody. From this
location, the carbody jack cylinders can be controlled
individually.
NOTE: For instructions on operating and connecting the
HPU, refer to the folio F2283—MLC650 Hydraulic
Power Unit Operation and Maintenance Manual.
Item Description
1 Right Front Jack Cylinder
2 Carbody Manual Control Manifold
3 Left Front Jack Cylinder
4 Left Carbody/Crawler Pin Puller
5 Left Rear Jack Cylinder
6 Right Rear Jack Cylinder
7 Right Carbody/Crawler Pin Puller

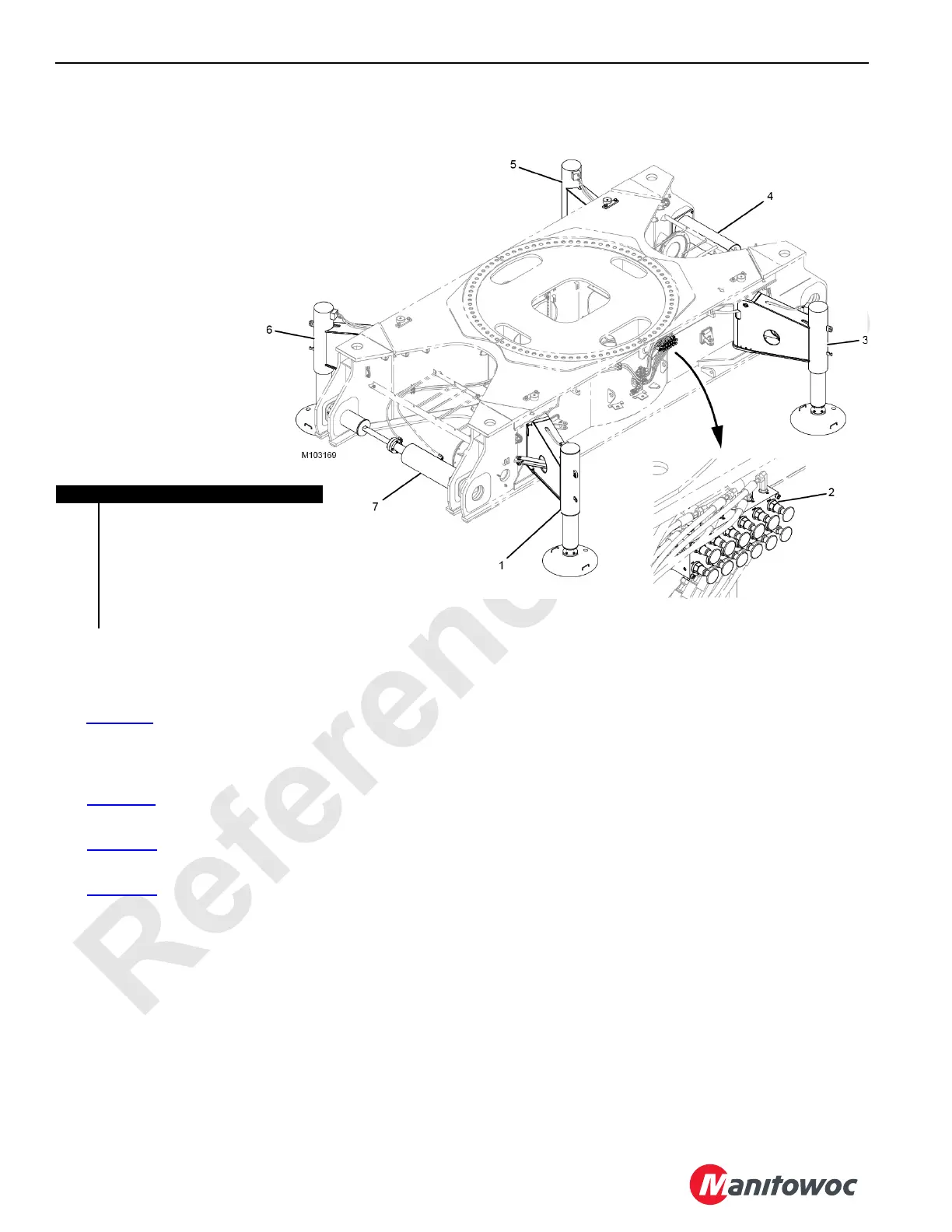

FIGURE 8-5
