MLC650 SERVICE/MAINTENANCE MANUAL UNDERCARRIAGE
8
8

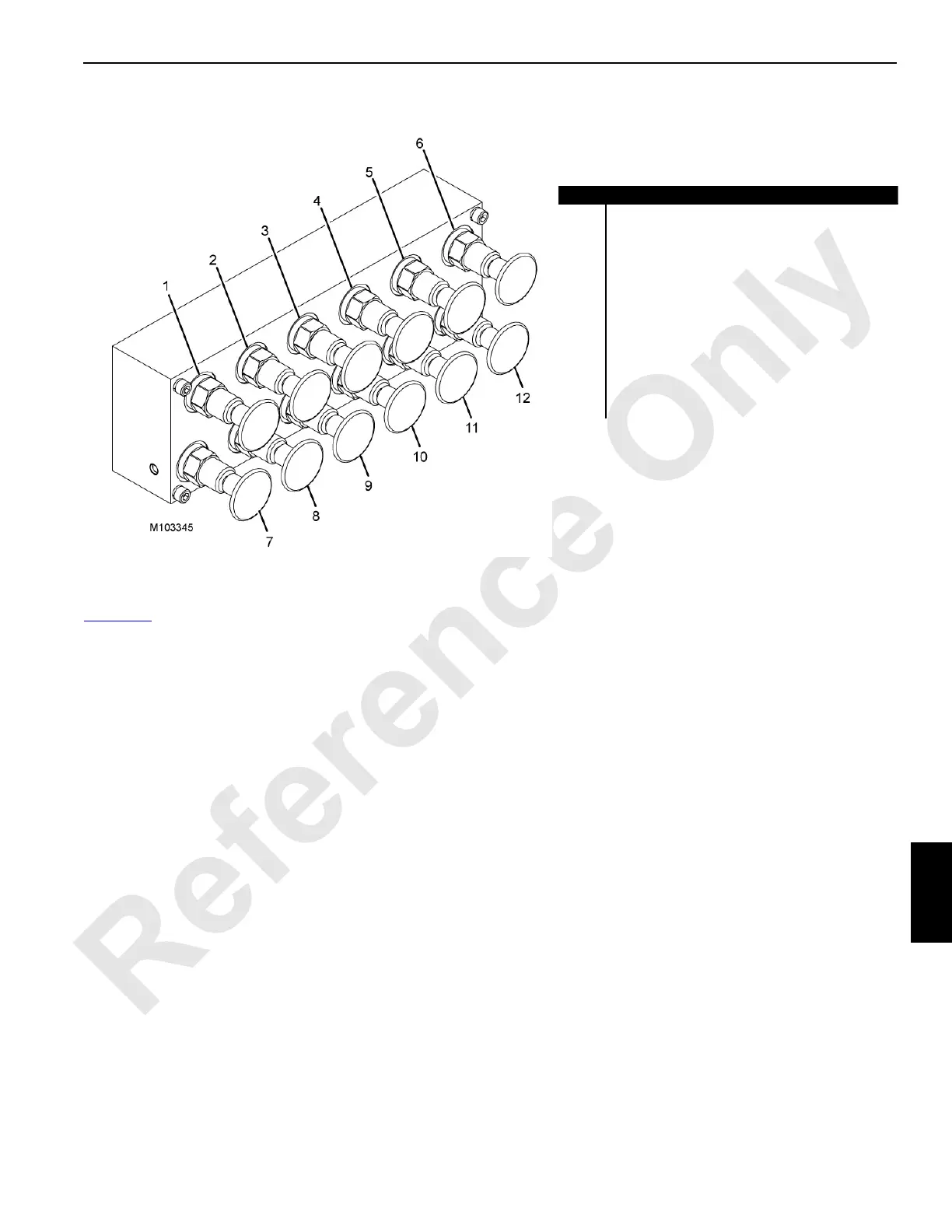

The controls of the carbody manual control manifold (see
Figure 8-6
) are as follows:
• Valve handles that control carbody jacks extend:
- B1 right front carbody jack extend (1)
- B2 right rear carbody jack extend (2)
- B5 left rear carbody jack extend (5)
- B6 left front carbody jack extend (6)
• Valve handles that control carbody jacks retract:
- A1 right front carbody jack retract (7)
- A2 right rear carbody jack retract (8)
- A5 left rear carbody jack retract (11)
- A6 left front carbody jack retract (12)
• Valve handles that control crawler/carbody pins extend:
- B3 right crawler/carbody pin puller extend (3)
- B4 left crawler/carbody pin puller extend (4)
• Valve handles that control crawler/carbody pins retract:
- A3 right crawler/carbody pin puller retract (9)
- A4 left crawler/carbody pin puller retract (10)
Item Description
1 B1 Right Front Carbody Jack Extend
2 B2 Right Rear Carbody Jack Extend
3 B3 Right Crawler Carbody Pin Puller Extend
4 B4 Left Crawler Carbody Pin Puller Extend
5 B5 Left Rear Carbody Jack Extend
6 B6 Left Front Carbody Jack Extend
7 A1 Right Front Carbody Jack Retract
8 A2 Right Rear Carbody Jack Retract
9 A3 Right Crawler Carbody Pin Puller Retract
10 A4 Left Crawler Carbody Pin Puller Retract
11 A5 Left Rear Carbody Jack Retract
12 A6 Left Front Carbody Jack Retract
FIGURE 8-6
