MLC650 SERVICE/MAINTENANCE MANUAL ACCESSORIES
10
10
Live Mast Limit Switch Adjustment
Adjust the live mast limit switch (2, Figure 10-40) to be
tripped when the live mast is down in the shipping position.
Gantry Limit Switch Adjustment
Adjust the gantry limit switch (1, Figure 10-40) to trip as the
gantry comes down to the shipping position. When the
gantry is in the working position, the limit switch is closed.
.

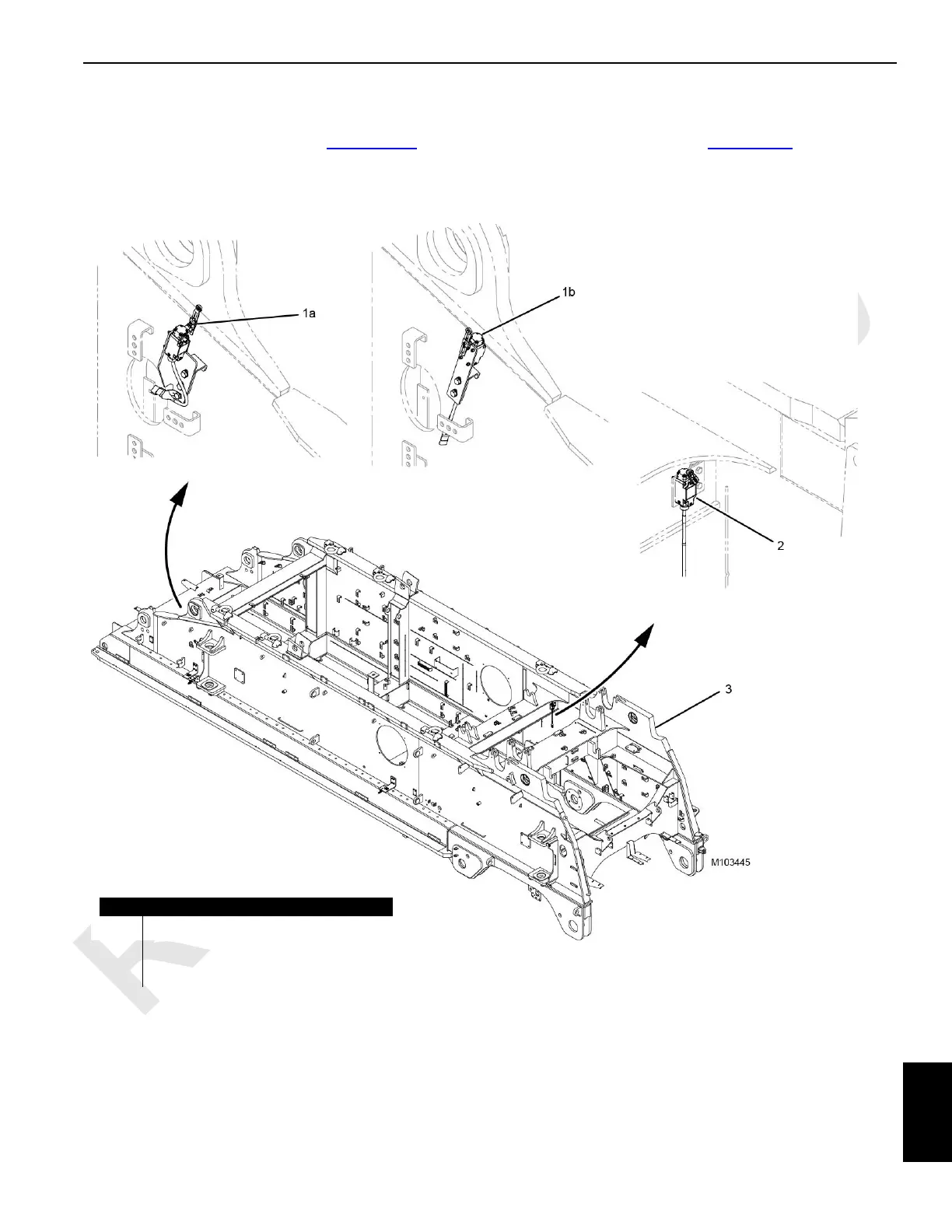

Item Description
1a Gantry Limit Switch (current production)
1b Gantry Limit Switch (past production)
2 Live Mast Limit Switch
3 Rotating Bed
FIGURE 10-40
