MLC650 SERVICE/MAINTENANCE MANUAL POWER TRAIN
7
ENGINE BELT ROUTING

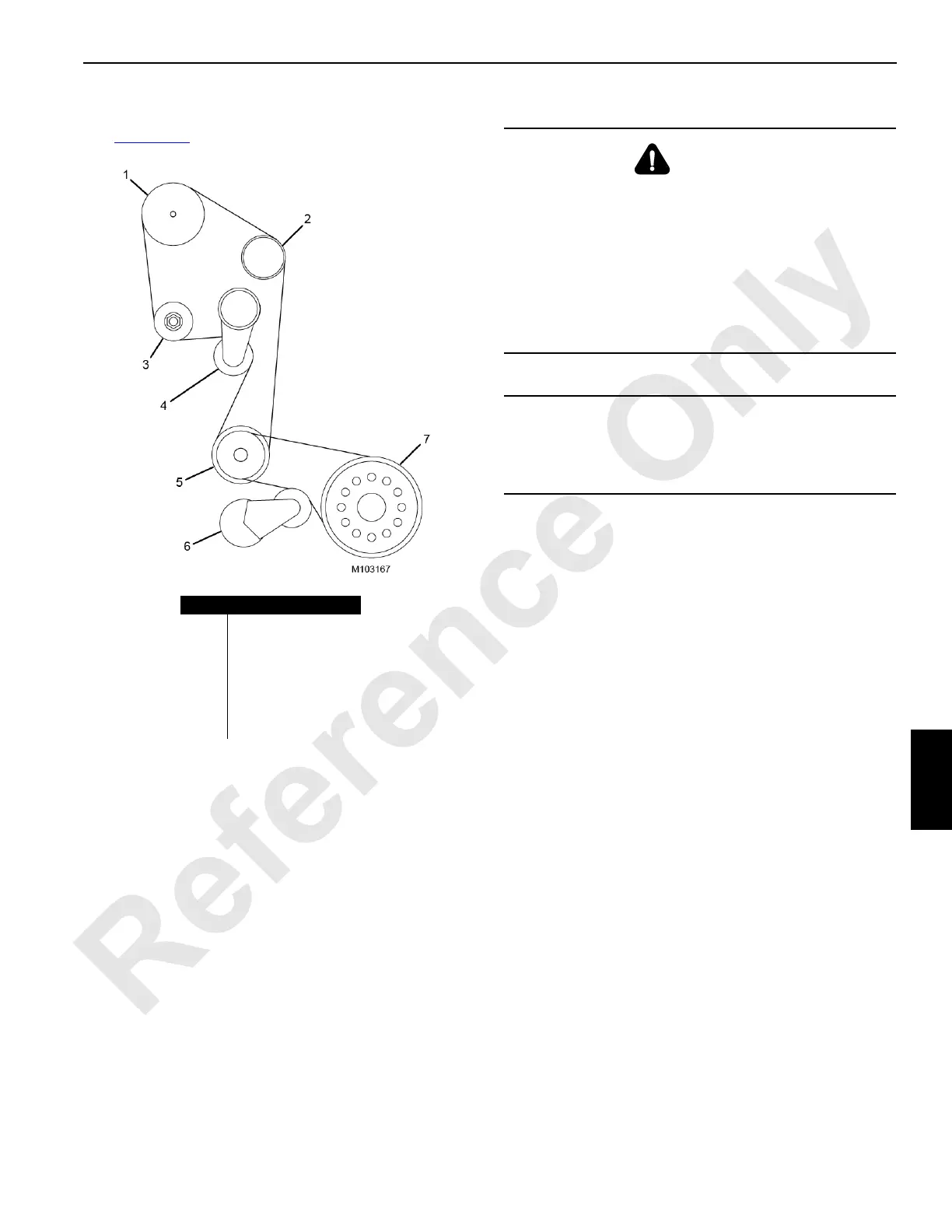

See Figure 7-11 for engine belt routing.
ENGINE RADIATOR
Item Description
1 A/C Compressor
2Idler
3 Alternator
4 Tensioner
5Water Pump
6 Tensioner
7 Harmonic Balancer
FIGURE 7-11
WARNING
Burn Hazard!
Do not remove the radiator fill cap from a hot engine.
Allow the engine to cool below 50°C (120°F) before
adding the coolant.
Material Hazard!
Coolant is toxic. Do not ingest. If not reused, dispose in
accordance with all local and other applicable
environmental regulations.
CAUTION
Avoid Engine Damage!
The required coolant level must be maintained to prevent
engine damage.
