MLC650 SERVICE/MAINTENANCE MANUAL ACCESSORIES
10
10
VPC-MAX Beam Up Limit Switch Adjustment
The VPC-MAX beam up limit switches require adjustment.
Beam Up Limit Switch Adjustment
See Figure 10-52 for the following procedure.
1. Set the adjustable limit switch arm to 32 mm (1.26 in).
2. Set the switch to trip when the bottom of the beam hook
opening is 10 mm (0.39 in) away from contacting the
bottom of the hook pin on the rotating bed.
At this point the rack teeth at the end of the rotating bed
should be approximately 15 mm (0.59 in) from the top of
the beam.

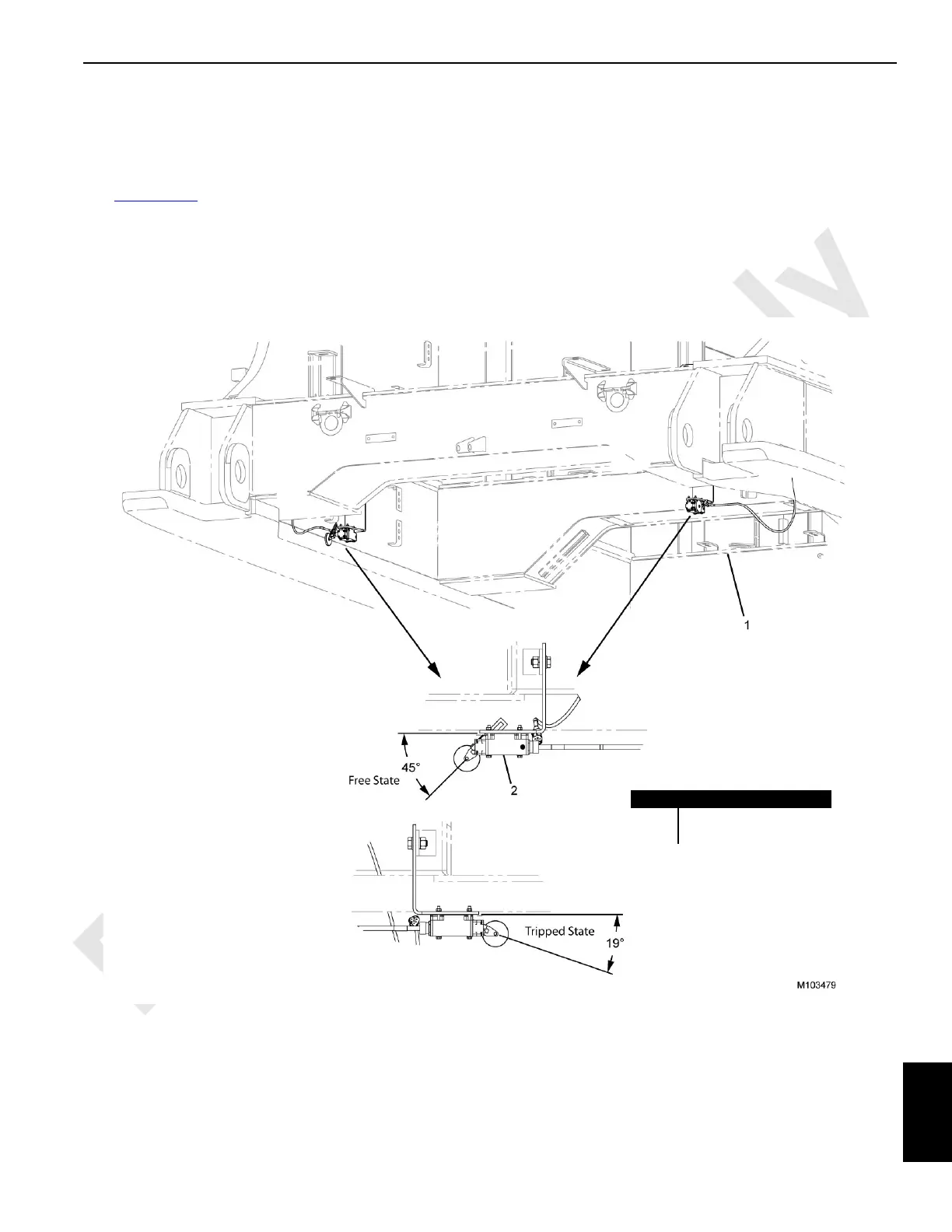

FIGURE 10-52
Item Description
1 Rotating Bed (rear)
2 Beam Up Limit Switch
