Reference Only
Manitowoc Published 09-09-16, Control # 229-09 10-3
MLC650 SERVICE/MAINTENANCE MANUAL ACCESSORIES
10
10

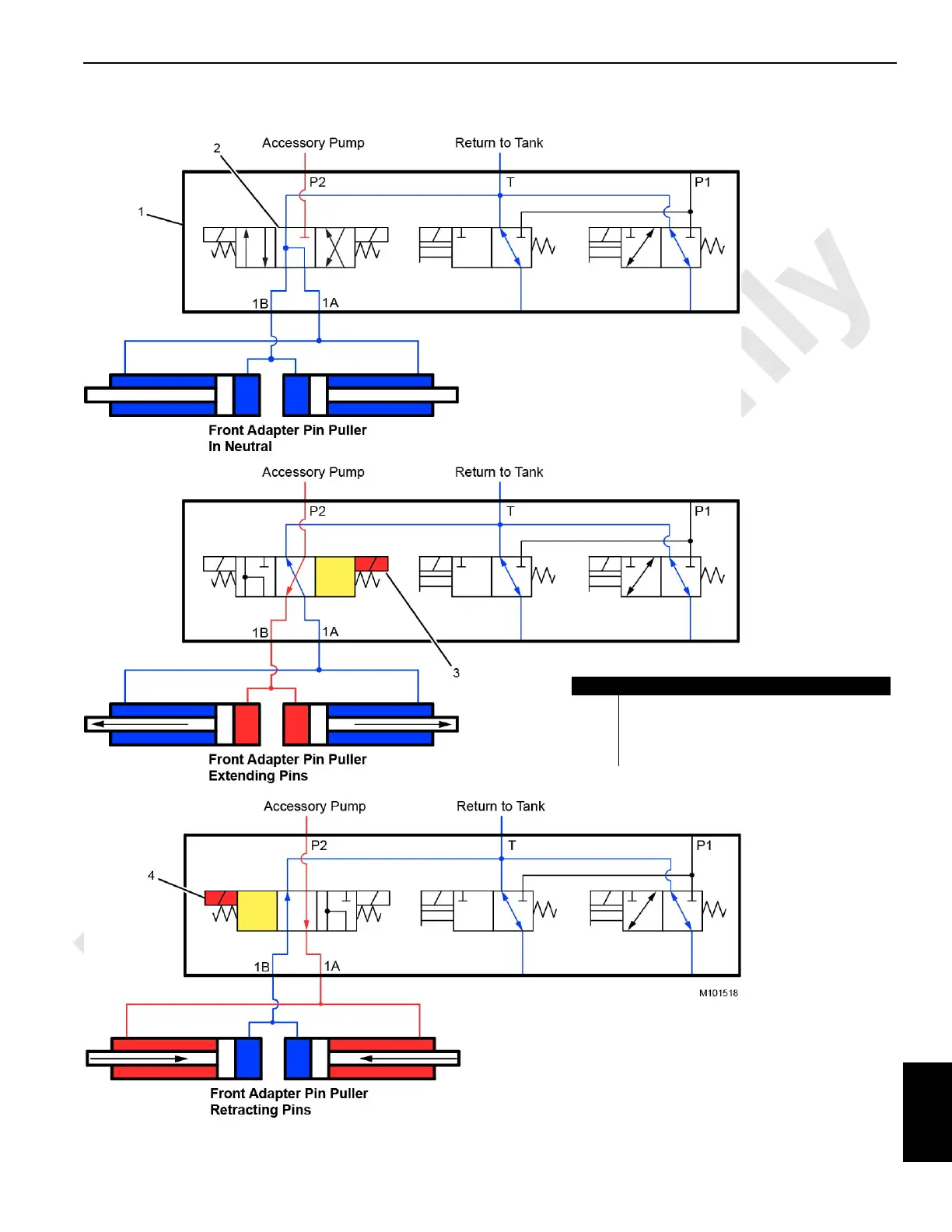

Adapter Frame-to-Rotating Bed Front Pin Pullers Hydraulic Schematic
Item Description
1 Adapter Frame Valve Assembly
2 Valve Spool (front adapter pin puller)
3 Extend Solenoid
4 Retract Solenoid
FIGURE 10-2
