Manitowoc MLC650 - Adapter Frame-To-Rotating Bed Rear Pin Pullers Hydraulic Schematic

Reference Only
ACCESSORIES MLC650 SERVICE/MAINTENANCE MANUAL
10-6
Published 09-09-16, Control # 229-09

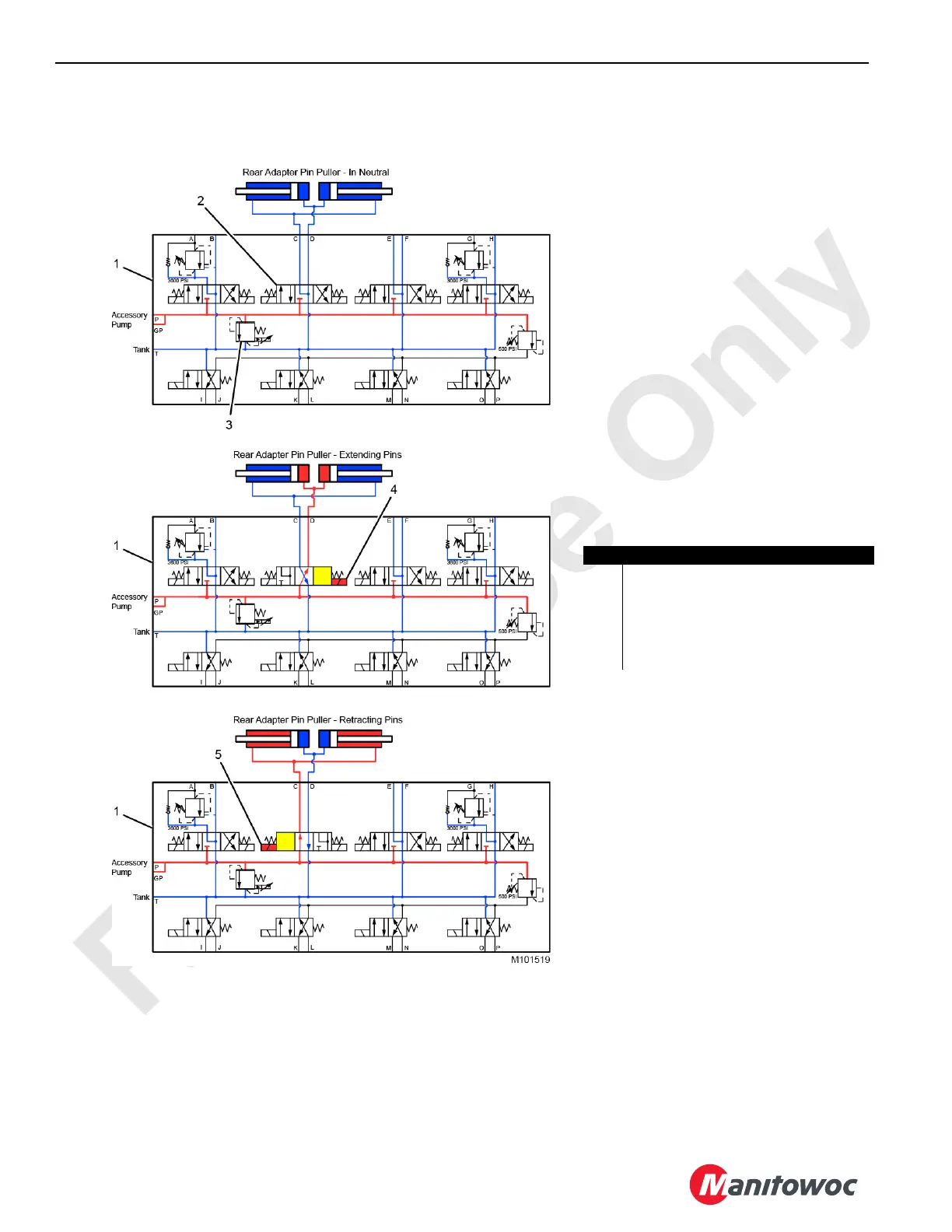

Adapter Frame-to-Rotating Bed Rear Pin Pullers Hydraulic Schematic
Item Description
1 Accessory Valve Manifold
2 Valve Spool (rear adapter pin puller)
3 Proportional Pressure Relief Valve
(operating pressure = 350 bar [5076 psi])
4 Extend Solenoid
5 Retract Solenoid
FIGURE 10-5
