ACCESSORIES MLC650 SERVICE/MAINTENANCE MANUAL
10-24
Published 09-09-16, Control # 229-09

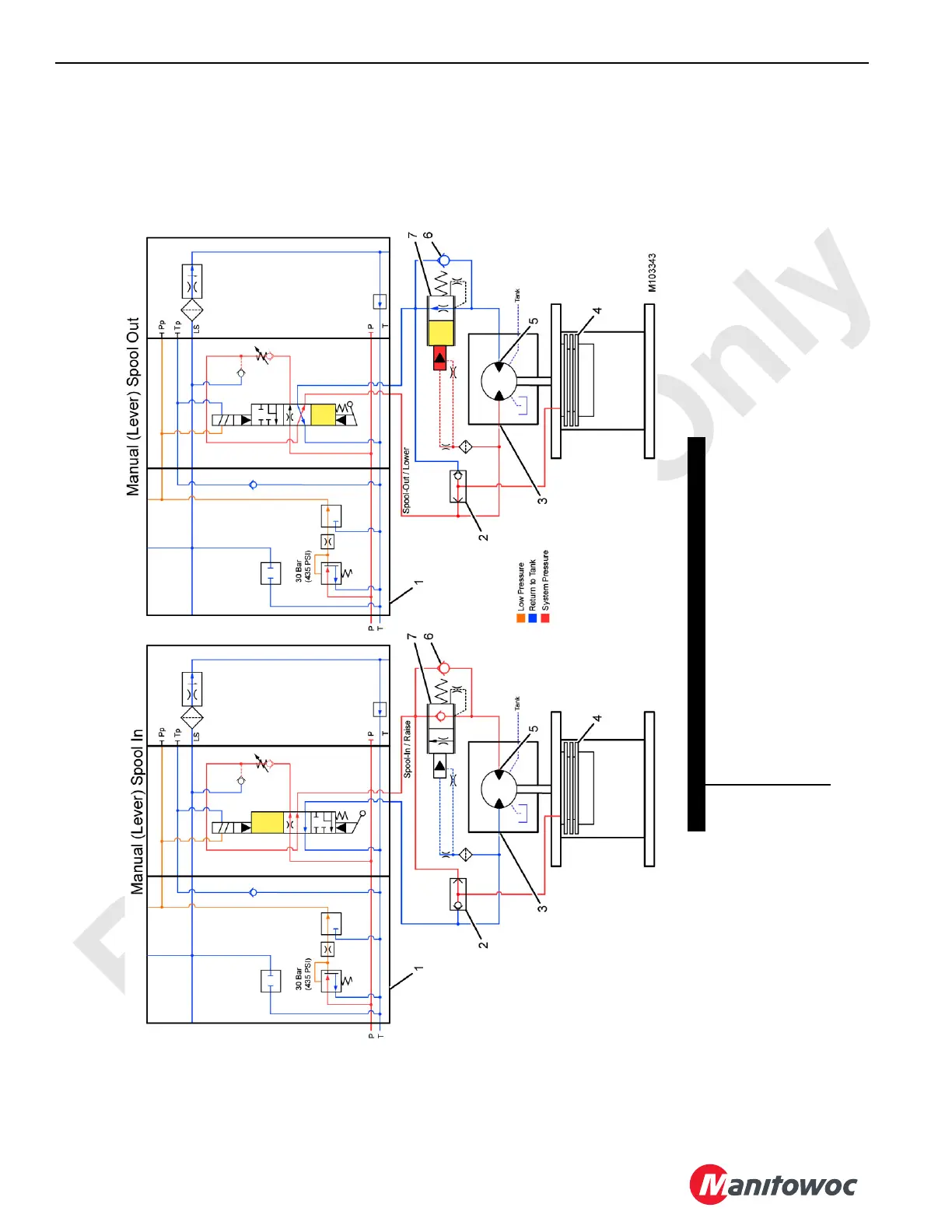

Rigging Winch (Drum 0) Hydraulic
Schematic (Manual Control)
FIGURE 10-18
Item Description
1 Upperworks Jacking and Rigging Winch Valve Assembly
2 Brake Shuttle Valve
3 Spool-Out/Lower Side
4Drum Brake
5 Spool-In/Raise Side
6 Function Check Valve
7 Counterbalance Valve
