Manitowoc MLC650 - Rotating Bed Jacks Hydraulic Schematic

Reference Only
ACCESSORIES MLC650 SERVICE/MAINTENANCE MANUAL
10-12
Published 09-09-16, Control # 229-09

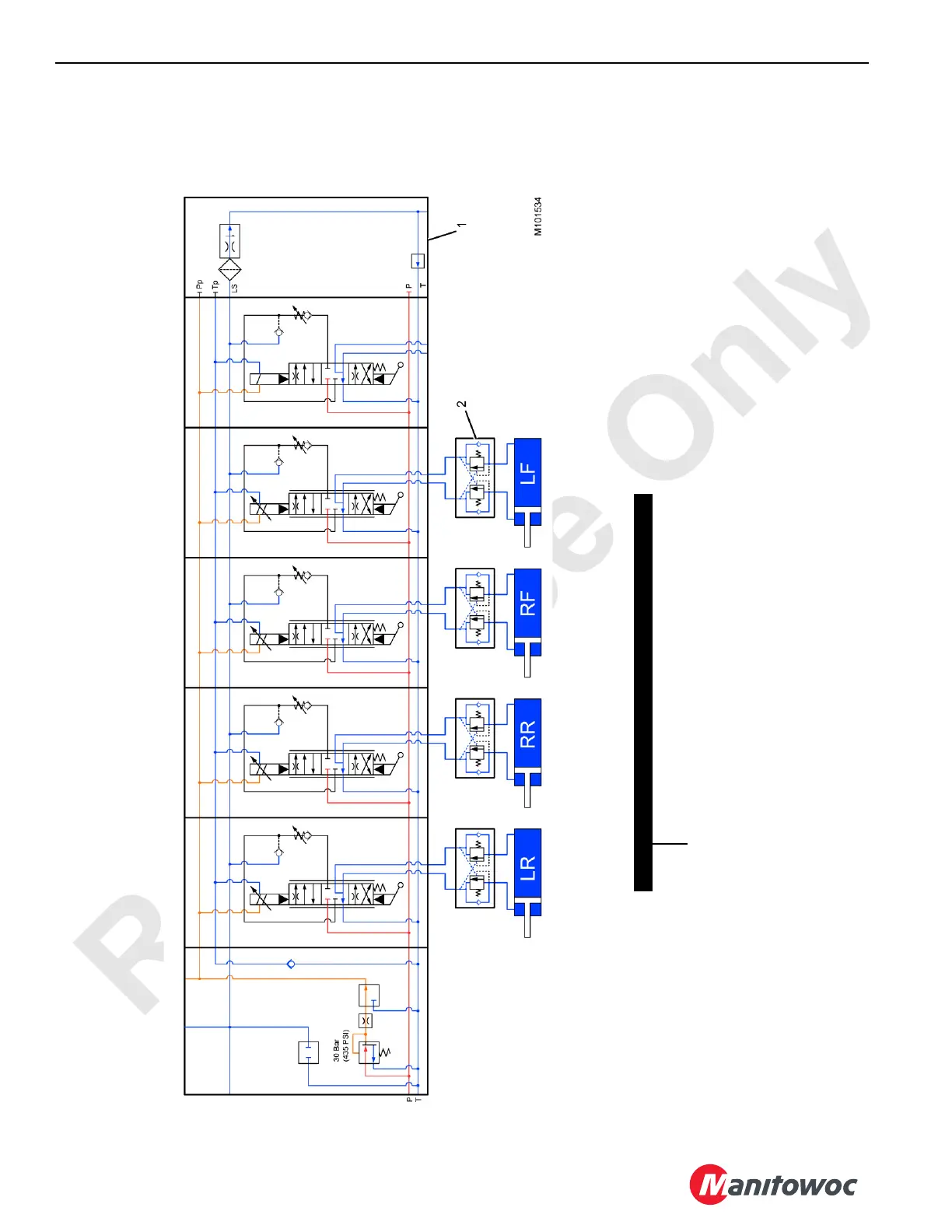

Rotating Bed Jacks Hydraulic Schematic
The hydraulic schematic is shown in the neutral state.
FIGURE 10-9
Item Description
1 Upperworks Jacking and Rigging Winch Valve Assembly 2 Counterbalance Valve (qty 4) (set at 248 bar [3600 psi])
