INTRODUCTION MLC650 SERVICE/MAINTENANCE MANUAL
1-6
Published 09-09-16, Control # 229-09

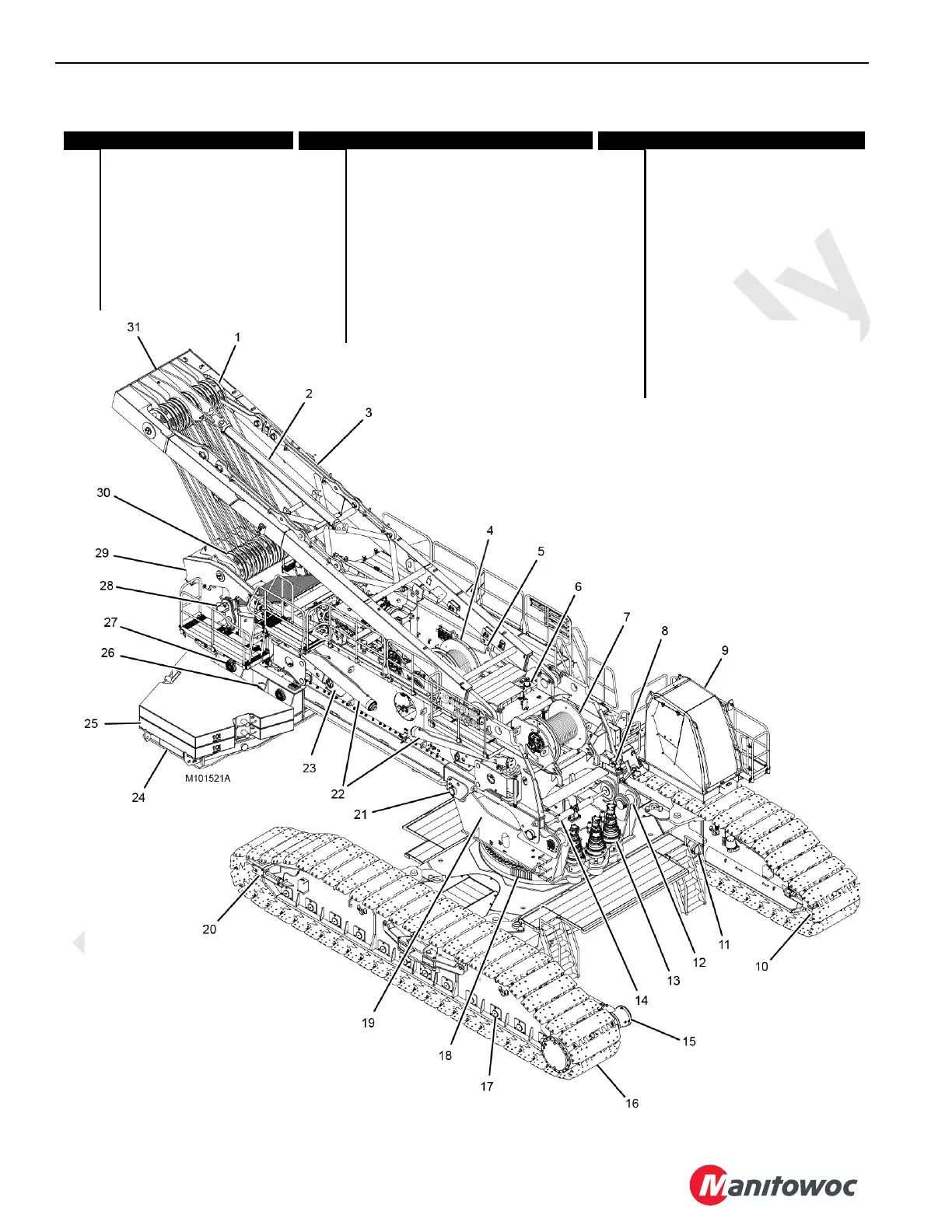

FIGURE 1-2
Item Description
1 Live Mast Sheaves
2 Self-Assembly Cylinder
3 Live Mast Links/Straps
4 Drum 4 (boom hoist/mast hoist)
5 Mast Raising Cylinder
6 Fuel Tank
7 Drum 3 (whip hoist)
8 Boom Stop Switch
9Cab
Item Description
10 Inboard Tread Slack Adjustment
11 Carbody/Crawler Pin Puller
12 Boom Hinge Pin
13 Swing Drive
Non-VPC (qty 2)
VPC and VPC-MAX (qty 3)
14 Adapter Frame/Rotating Bed Pin Puller
15 Crawler Drive
16 Crawler
17 Intermediate Roller
18 Turntable Bearing
Item Description
19 Adapter Frame
20 Outboard Tread Slack Adjustment
21 Rotating Bed/Adapter Frame Pin
Puller
22 Rotating Bed Jacking Cylinder
23 Gear Rack
24 Counterweight Tray
25 Counterweight Box (as required)
26 VPC Drive
27 VPC Roller
28 Backhitch Link
29 Gantry
30 Gantry Sheaves
31 Live Mast
