Item Description
1 Breather Plug
2 Fill Port
3 Dust Cap (qty 2)
4a Quick-Drain Valve
4b Quick-Drain Valve (radial location)
5 Oil Level Plug
6 Quick-Drain Drainer Assembly Hose
7 Drum Guard Assembly
Drum 4
View A
View B

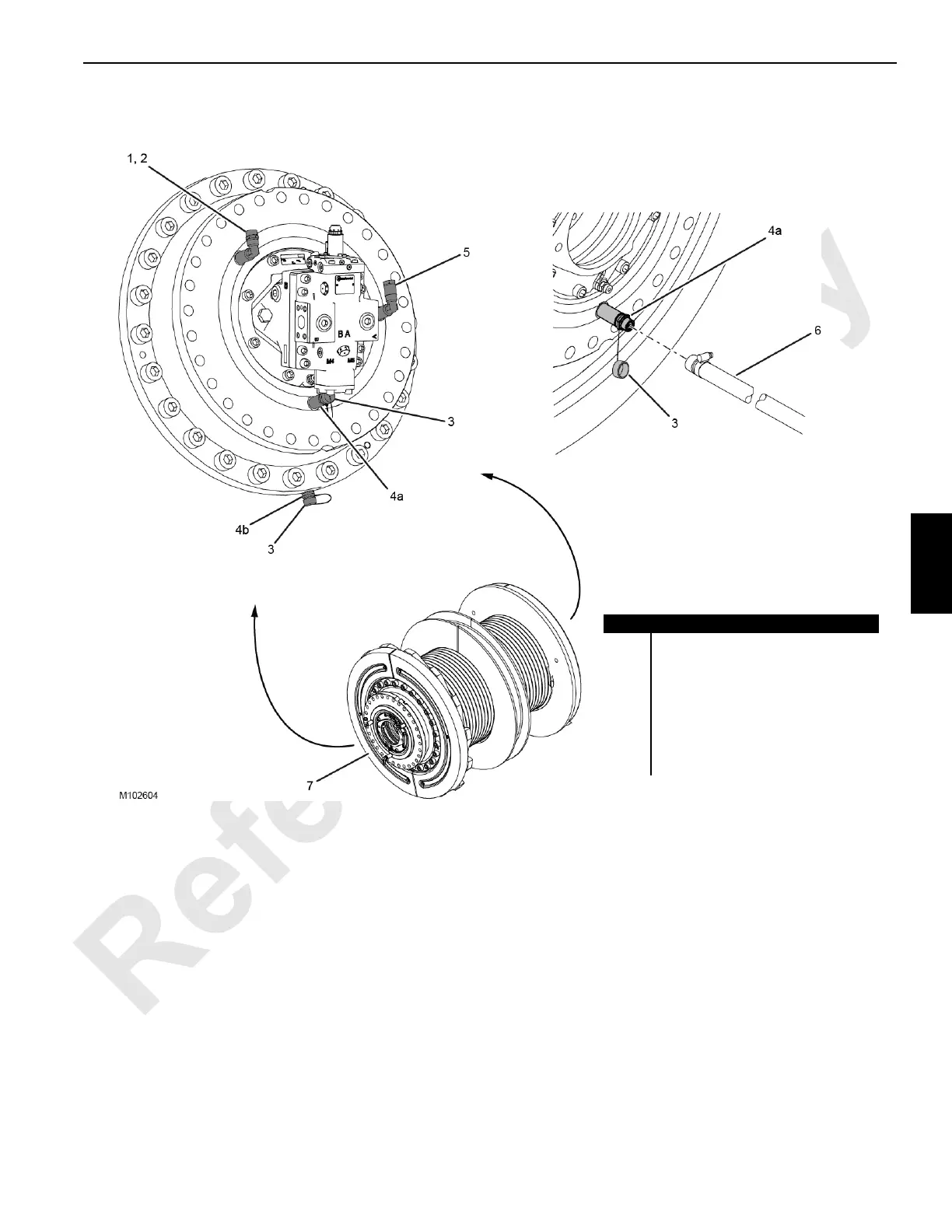

FIGURE 5-28
