MLC650 SERVICE/MAINTENANCE MANUAL POWER TRAIN
7

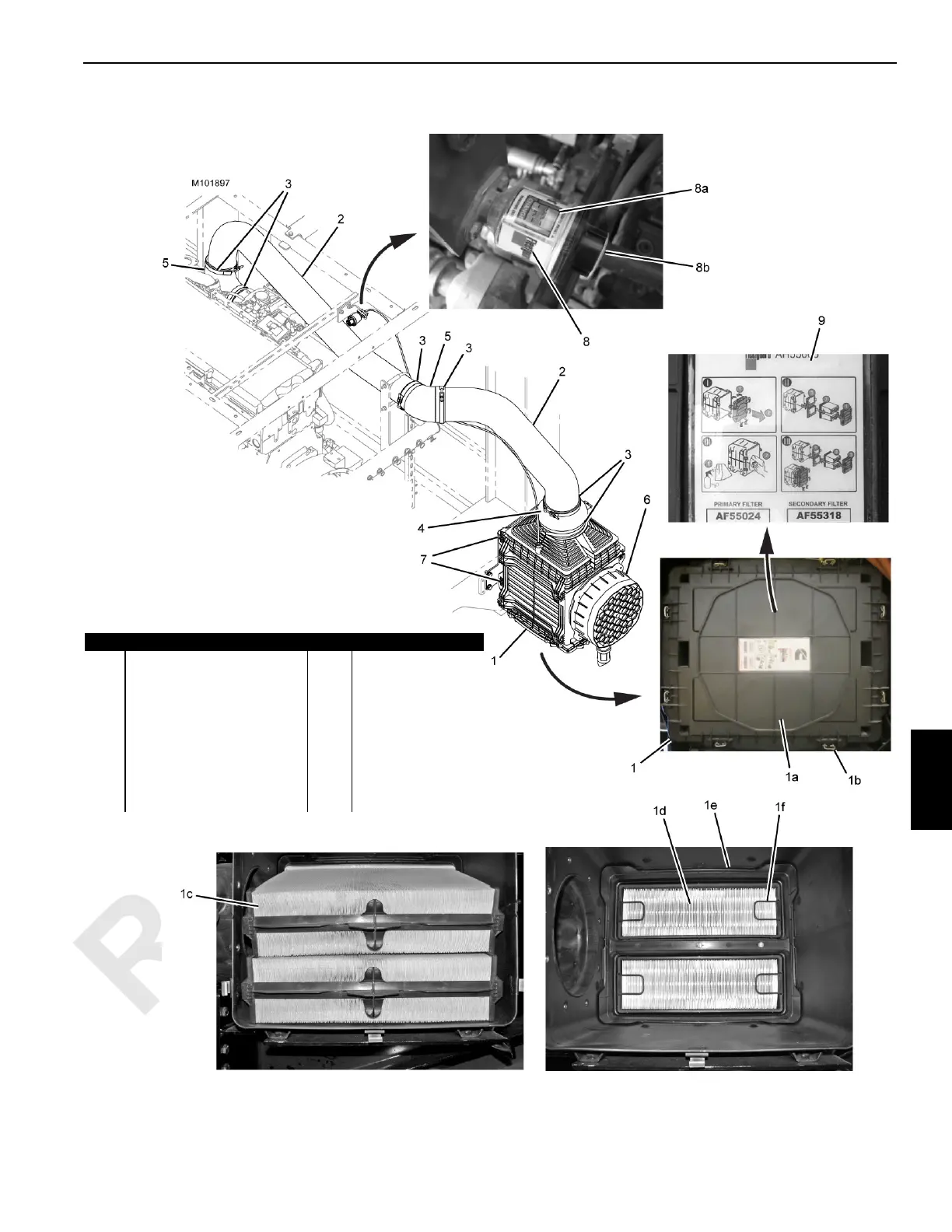

FIGURE 7-4
Item Description Item Description
1 Air Cleaner Housing 4 Straight Adapter
1a Service Cover 5 Rubber Elbow (qty 2)
1b Clamp (qty 8) 6 Air Intake
1c Primary Filter (qty 2) 7 Mounting Lugs
1d Secondary Filter (qty 2) 8 Service Indicator
1e Inner Housing 8a Service Window
1f Removal Tab 8b Reset Button
2 Steel Tube (qty 2) 9 Service Instruction
3Clamp (qty 6)
