CHARGING & STARTING SYSTEM
Page 2B-2 90-857046R1 NOVEMBER 2001

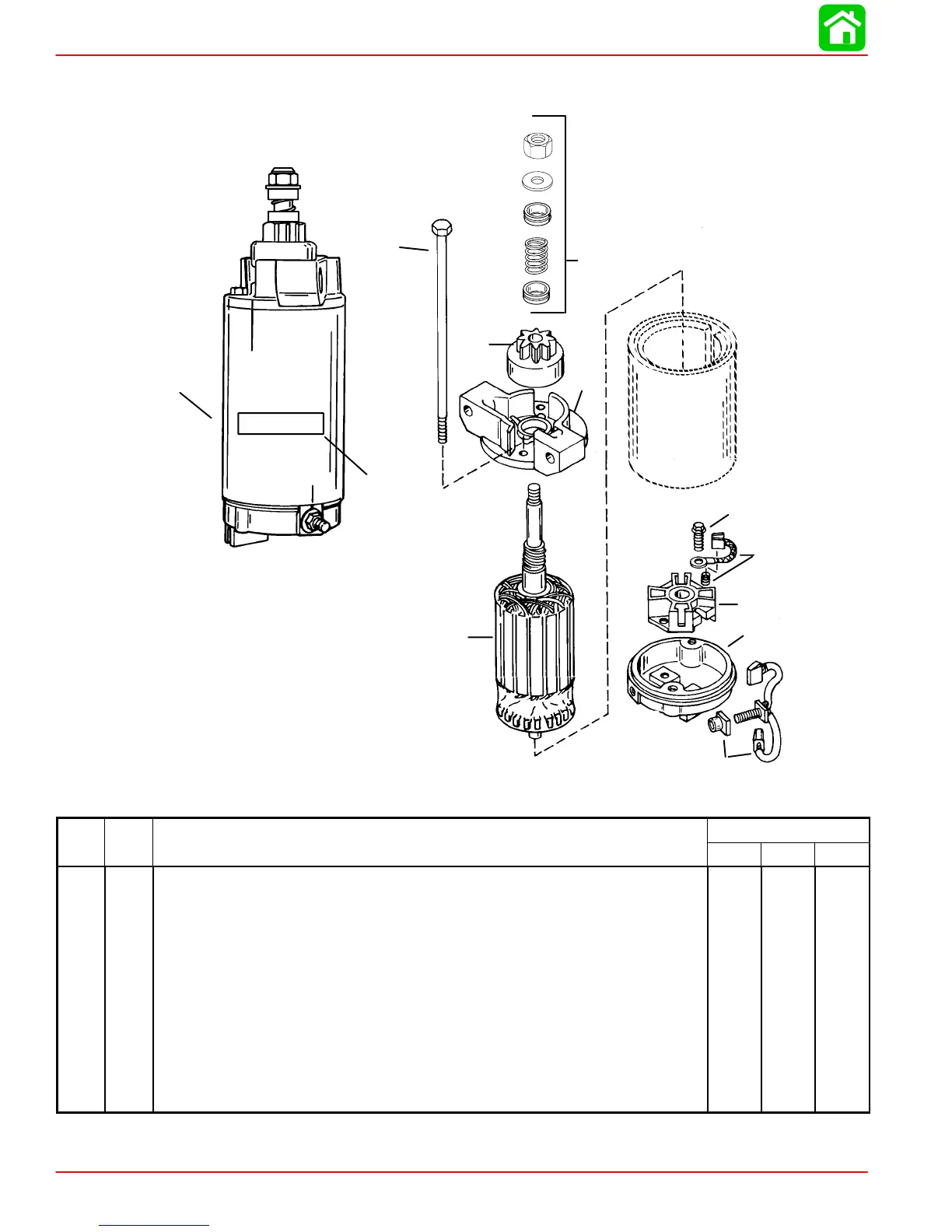

STARTER MOTOR
1
2
3
5
6
4
7
8
9
10
11
8
REF
TORQUE
REF
.
NO.
QTY. DESCRIPTION lb-in lb-ft Nm.
1 1 STARTER MOTOR
2 2 THRU BOLT 70 8.0
3 1 DRIVE KIT
4 1 ARMATURE
5 1 PINION
6 1 DRIVE CAP
7 1 COMMUTATOR CAP
8 1 BRUSH & SPRING KIT
9 1 BRUSH HOLDER
10 2 SCREW
11 1 DECAL-Warning-High voltage
