CHARGING & STARTING SYSTEM
90-857046R1 NOVEMBER 2001 Page 2B-15
Starter Motor
Removal
WARNING
Always disconnect the battery and remove spark plug leads from spark plugs before
working on motor.
1. Disconnect battery leads and black starter motor lead from starter terminal.
2. Remove upper mounting screws and loosen bottom screw. Lift starter motor in an upward
direction and remove.
a
a
a
b

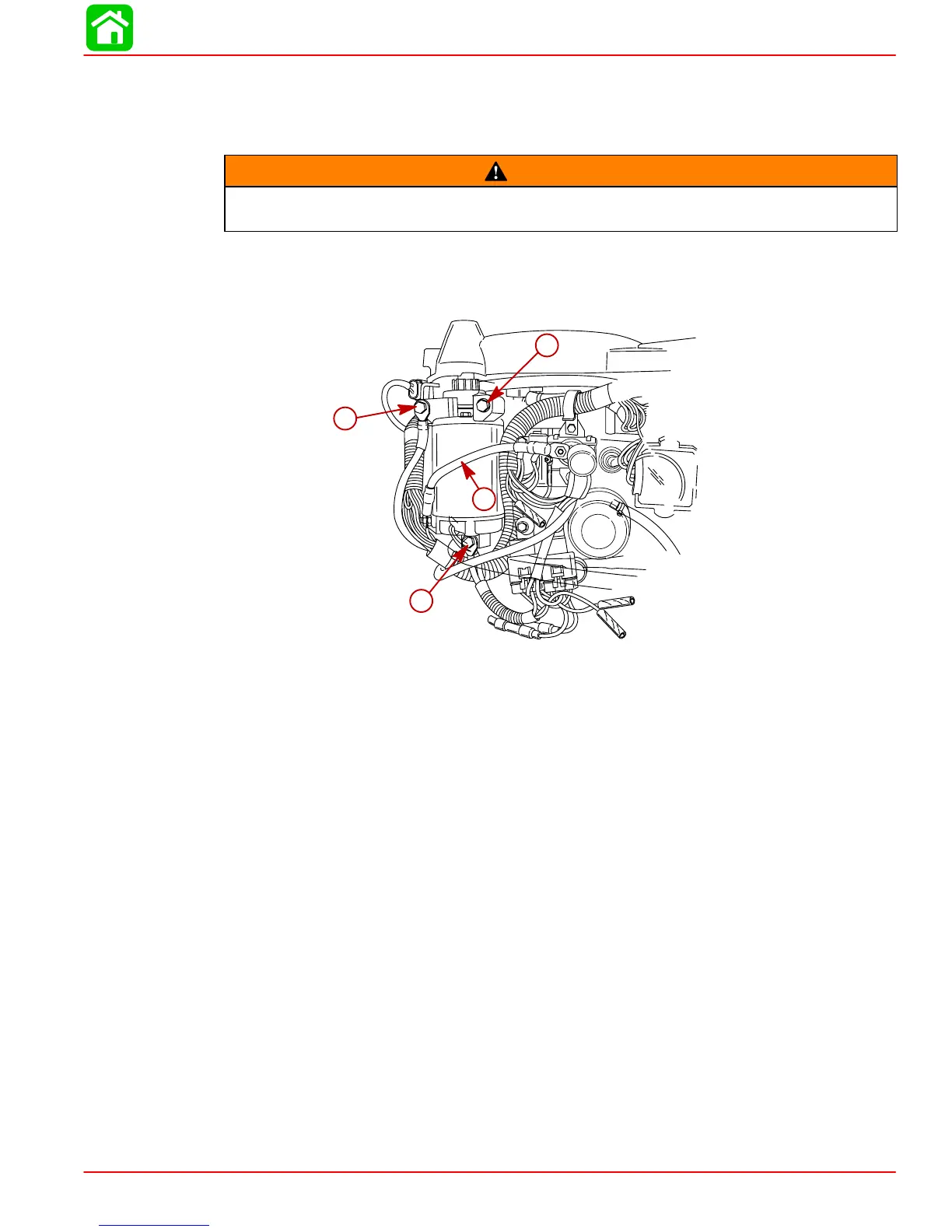

a-Starter Mounting Screw (3) M8 x 45
b-Starter Motor Lead
