CHARGING & STARTING SYSTEM
Page 2B-16 90-857046R1 NOVEMBER 2001

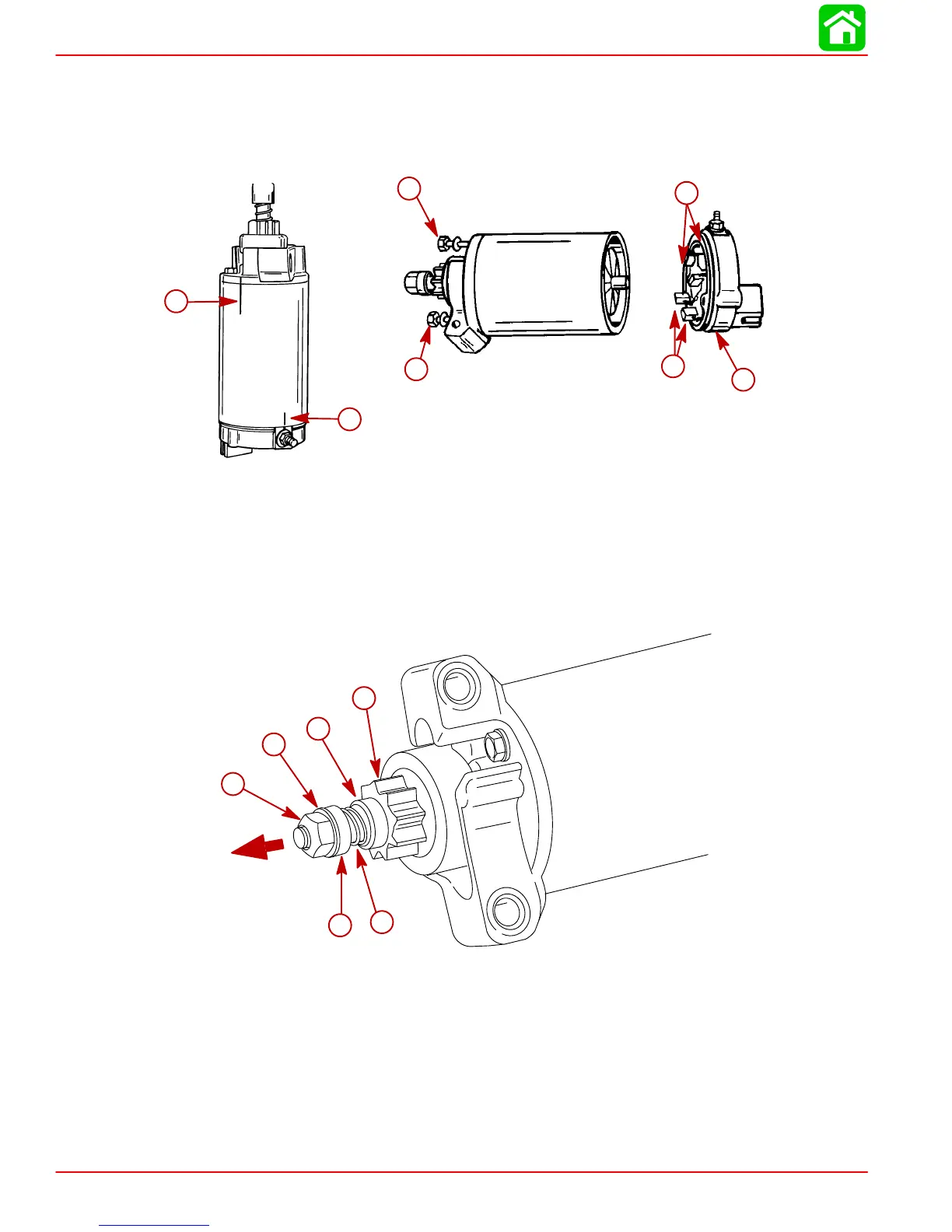

Disassembly
IMPORTANT: Before separating components mark them with an awl or marker. This
will ensure proper orientation during reassembly.
1. Remove 2 through bolts and commutator end cap, taking care not to lose brush springs.
a
c
c
b
d
d
a
a-Thru Bolts
b-Commutator End Cap
c-Brush Springs
d-I.D. Marks
2. Remove the nut, washer, spring, pinion stopper and pinion drive assembly. You may
need to lightly clamp the armature in a vise while removing the nut.
NOTE:
DISPOSE OF NUT AFTER REMOVING IT. USE A NEW ONE FOR REASSEMBLY.
58223
d
a
b
c
e
c
a-Nut (Discard)
b-Washer
c-Pinion Stopper
d-Spring
e-Pinion
To Next Page
