CHARGING & STARTING SYSTEM
Page 2B-24 90-857046R1 NOVEMBER 2001

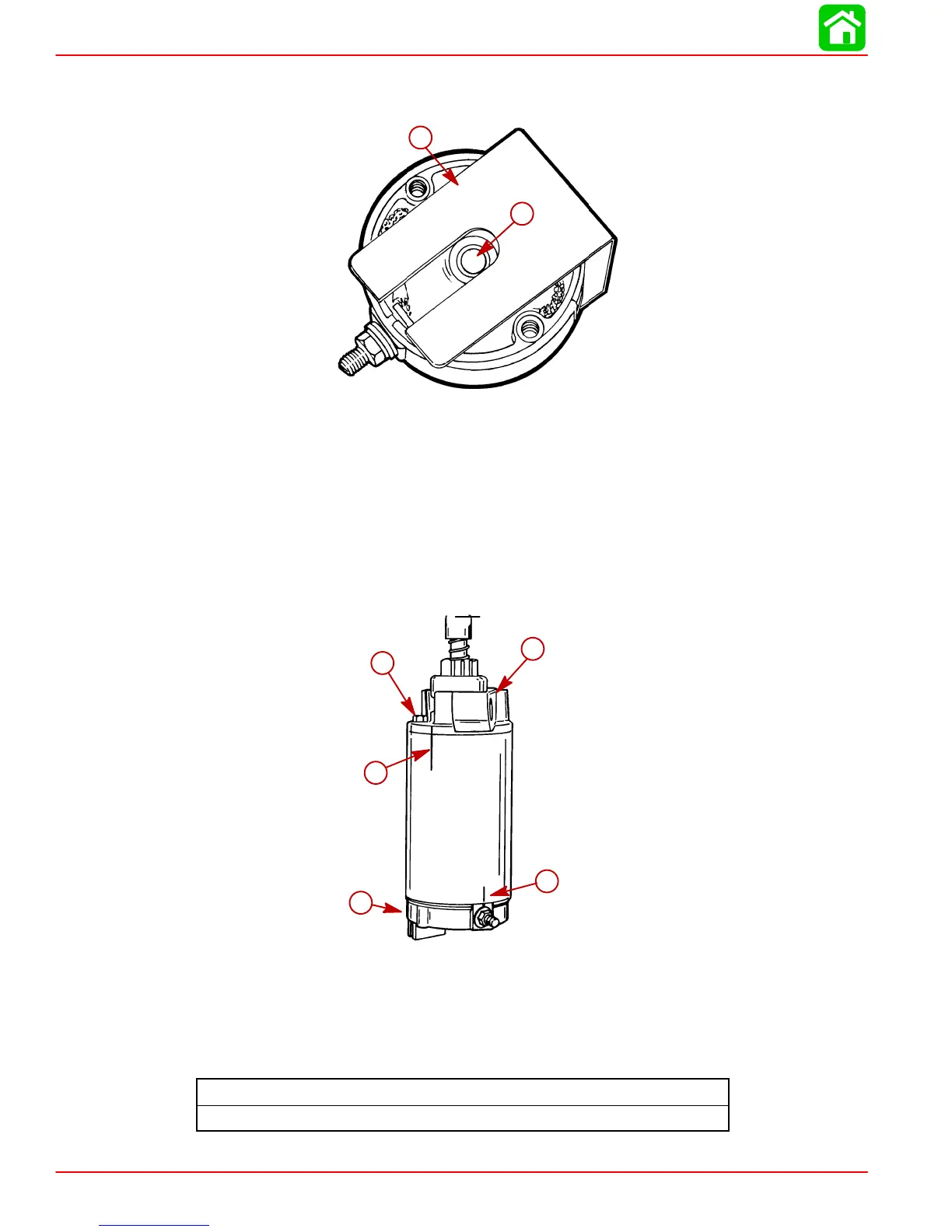

5. Place springs and brushes into brush holder and hold in place with brush retainer tool.
6. Lubricate bushing with one drop of SAE 10W oil. DO NOT over-lubricate
.
a
b
a-Brush Retainer Tool
b-Bushing
7. Position armature into starter frame so that commutator end of armature is at end of
starter frame where permanent magnets are recessed 1 in. (25.4mm). Align marks as
shown.
8. Install commutator end cap onto starter frame; align marks as shown, and remove brush
retainer tool.
9. Install through bolts and tighten to specified torque. 70 lbs. in. (7.9 N·m)
.
a
b
c
d
e
a-Drive Cap I.D. Marks
b-Drive Cap
c-Commutator End Cap
d-Commutator End Cap I.D. Marks
e-Through Bolts (2)
Fuel Pump Cover Screw Torque
30 lb. in. (3.5 N·m)
