Installation
1. Secure starter to block with (3) mounting screws. Tighten screws to specified torque.
Secure NEGATIVE battery lead and starter motor lead as shown.
a
a
a
b
c

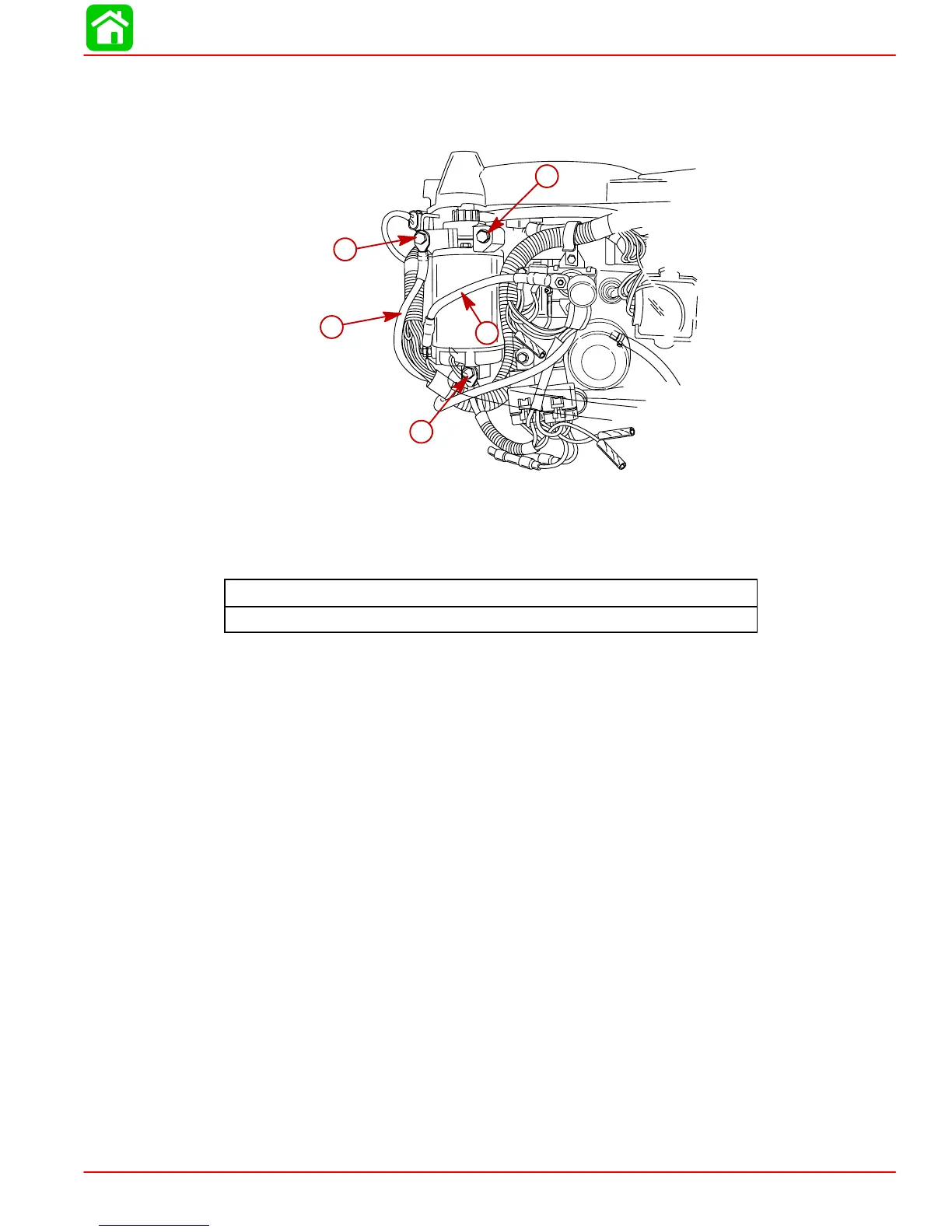

a-Starter Mounting Screw (3) M8 x 45
b-Negative Battery Lead
c-Starter Motor Lead
Starter Motor Mounting Screw Torque
22 lb. ft. (29 N·m)
