FUEL PUMP
Page 3A-14 90-857046R1 NOVEMBER 2001

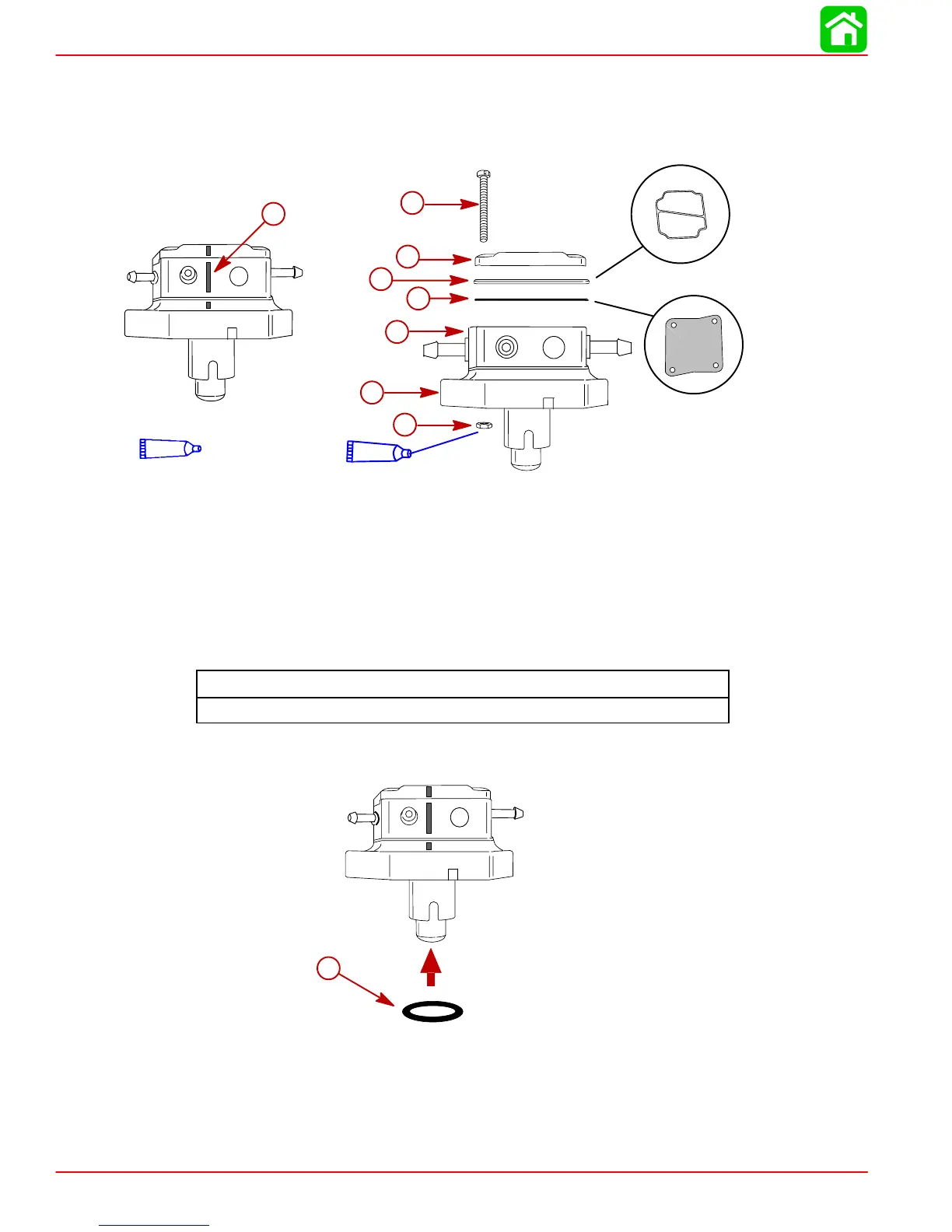

5. Assemble valve body, diaphragm, seal, and cover to pump base. Be sure to line up I.D.
marks that were made before disassembly. Apply Loctite 242 to screws and secure
with nuts.
NOTE: Seal installs in one direction only.
66
28378
c
d
b
a
e
f
g
h
66
Loctite 242
a-Screws (4) M5 x 40
b-Pump Cover
c-Cover Seal
d-Diaphragm
e-Valve Body
f-Pump Base
g-Nuts (4)
h-I.D. Marks
Fuel Pump Cover Screw Torque
30 lb. in. (3.5 N·m)
6. Inspect O-ring and replace if necessary. Install onto fuel pump assembly.
53620
a
a-O-ring
To Next Page
