POWER TRIM
Page 5B-50 90-857046R1 NOVEMBER 2001

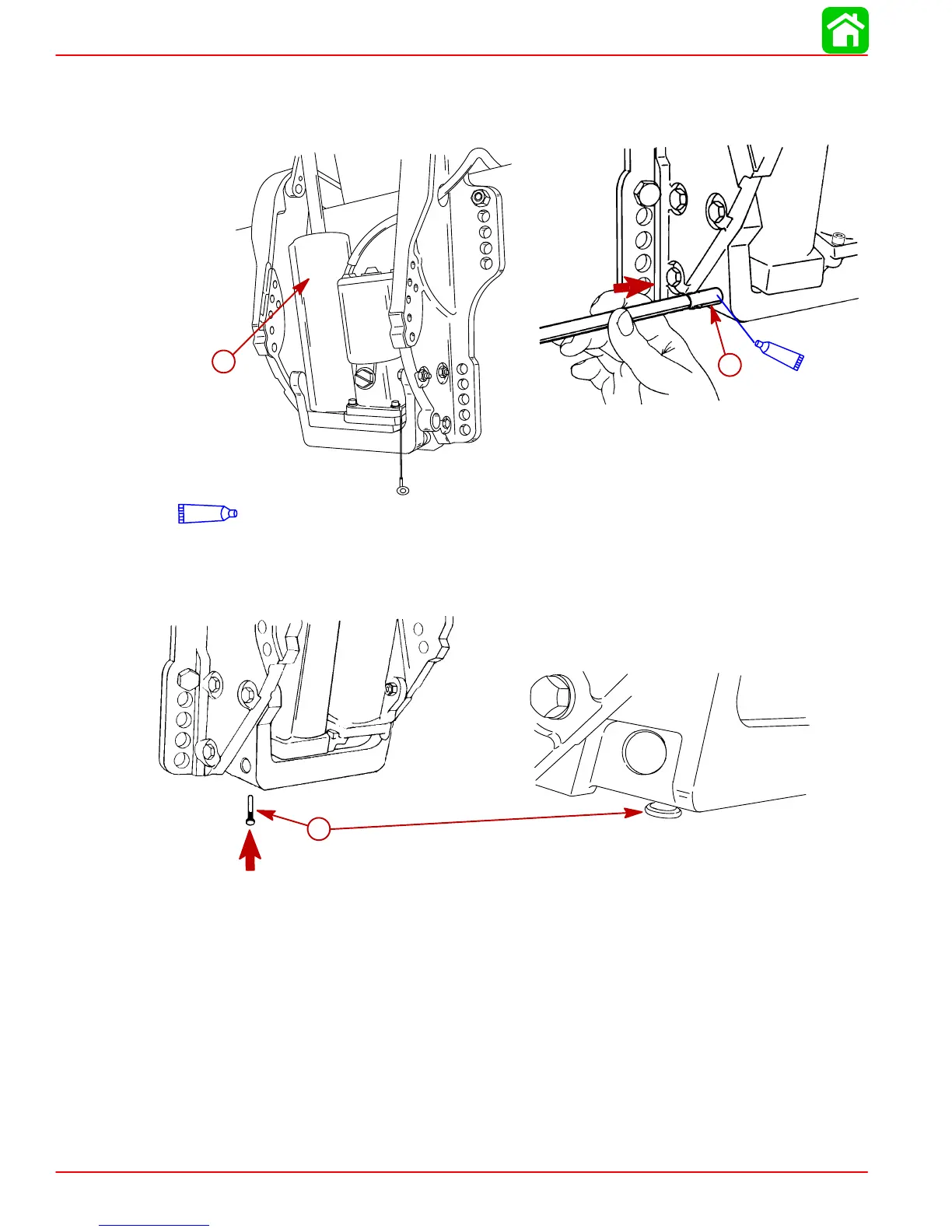

3. Position trim cylinder assembly (bottom first) between clamp brackets.
4. Using a suitable punch, drive lower pivot pin into clamp bracket and trim cylinder assem-
bly until pivot pin is flush with outside surface.
51147
95
b
55467
a
95
2-4-C Marine Lubricant with Teflon
a-Trim Cylinder Assembly
b-Lower Pivot Pin
5. Using a suitable punch, drive lower trilobe pin into its hole until seated.
a
a-Lower Trilobe Pin
