POWER TRIM
90-857046R1 NOVEMBER 2001 Page 5B-51

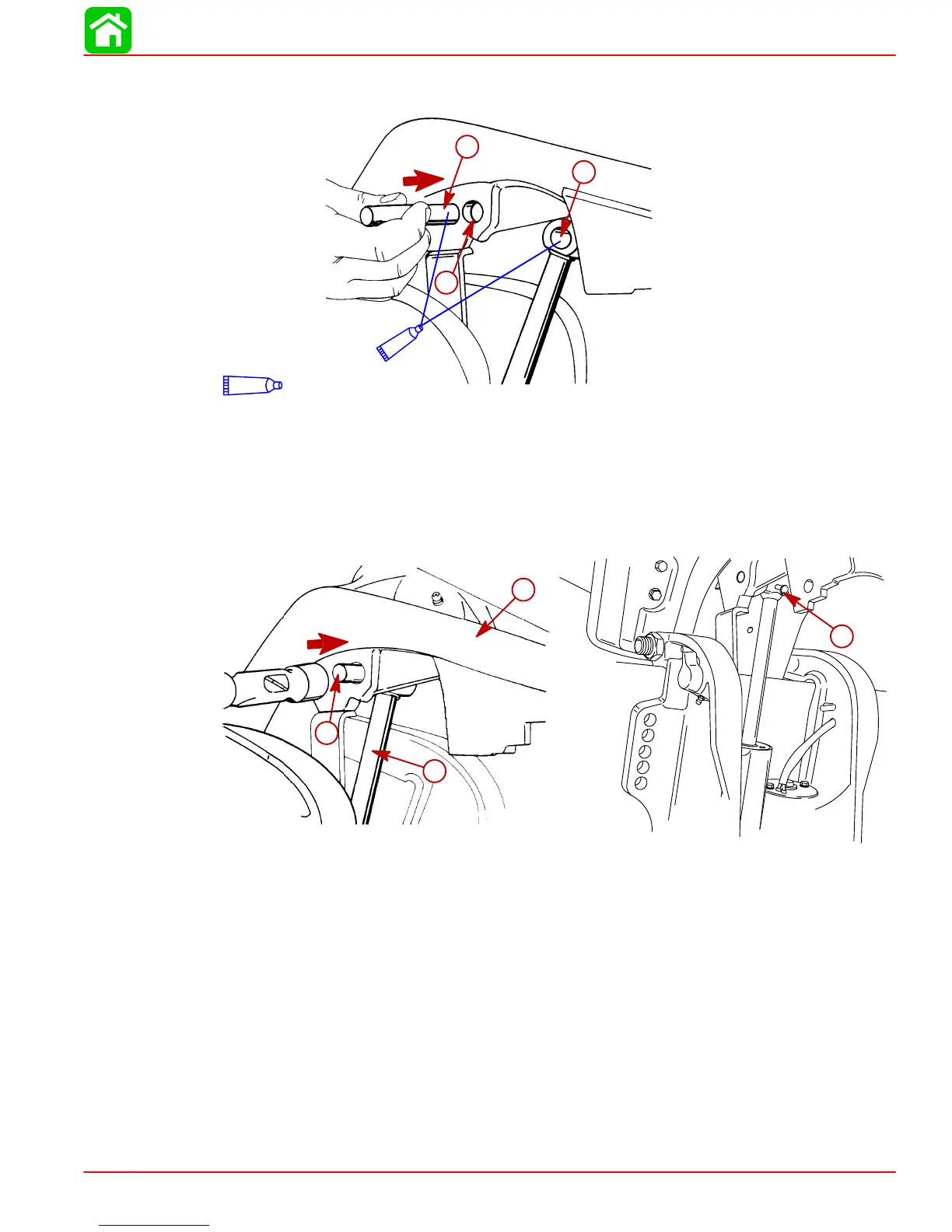

6. Apply 2-4-C Marine Lubricant with Teflon to surface of upper pivot pin, pivot pin bore and
trim ram bore.
51148
95
a
b
c
95
2-4-C Marine Lubricant with Teflon
a-Pivot Pin
b-Pivot Pin Bore
c-Trim Ram Bore
7. Using a suitable mallet, drive upper pivot pin into swivel bracket and through trim ram
until pivot pin is flush with swivel bracket.
8. Drive upper trilobe pin into its hole until seated.
55464
d
51148
b
c
a
a-Pivot Pin
b-Swivel Bracket
c-Trim Ram
d-Upper Trilobe Pin
