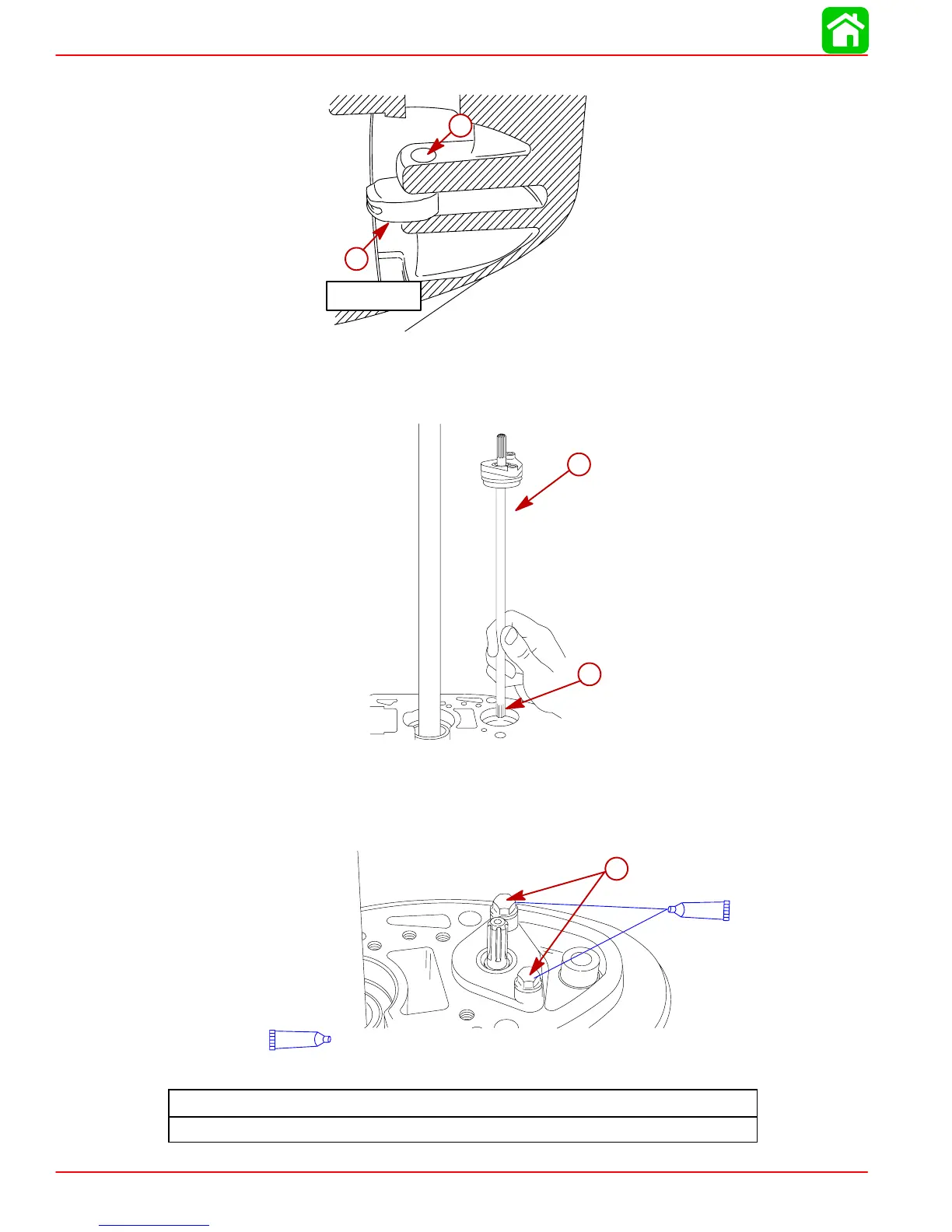

BIGFOOT GEAR HOUSING
Page 6B-32 90-857046R1 NOVEMBER 2001
40/50 Bigfoot (4-Stroke,747cc/935cc), 40/50/60 Bigfoot (4-Stroke, 995cc)
51117
850307
a
b
a- Shift Cam (Numbers Down)
b- Shift Shaft Pilot Bore
7. Install shift shaft assembly. Insert splines into shift cam.
53932
a
b
a- Shift Shaft Assembly
b- Splines
8. Apply Loctite 271 to bottom half of threads on each screw. Install screws and tighten to
specified torque.
53926
a
7
Loctite “271”
7
a- Screw (2)
Screw Torque
60 lb-in. (7.0 Nm)
