TILLER HANDLE
Page 7B-12 90-857046R1 NOVEMBER 2001

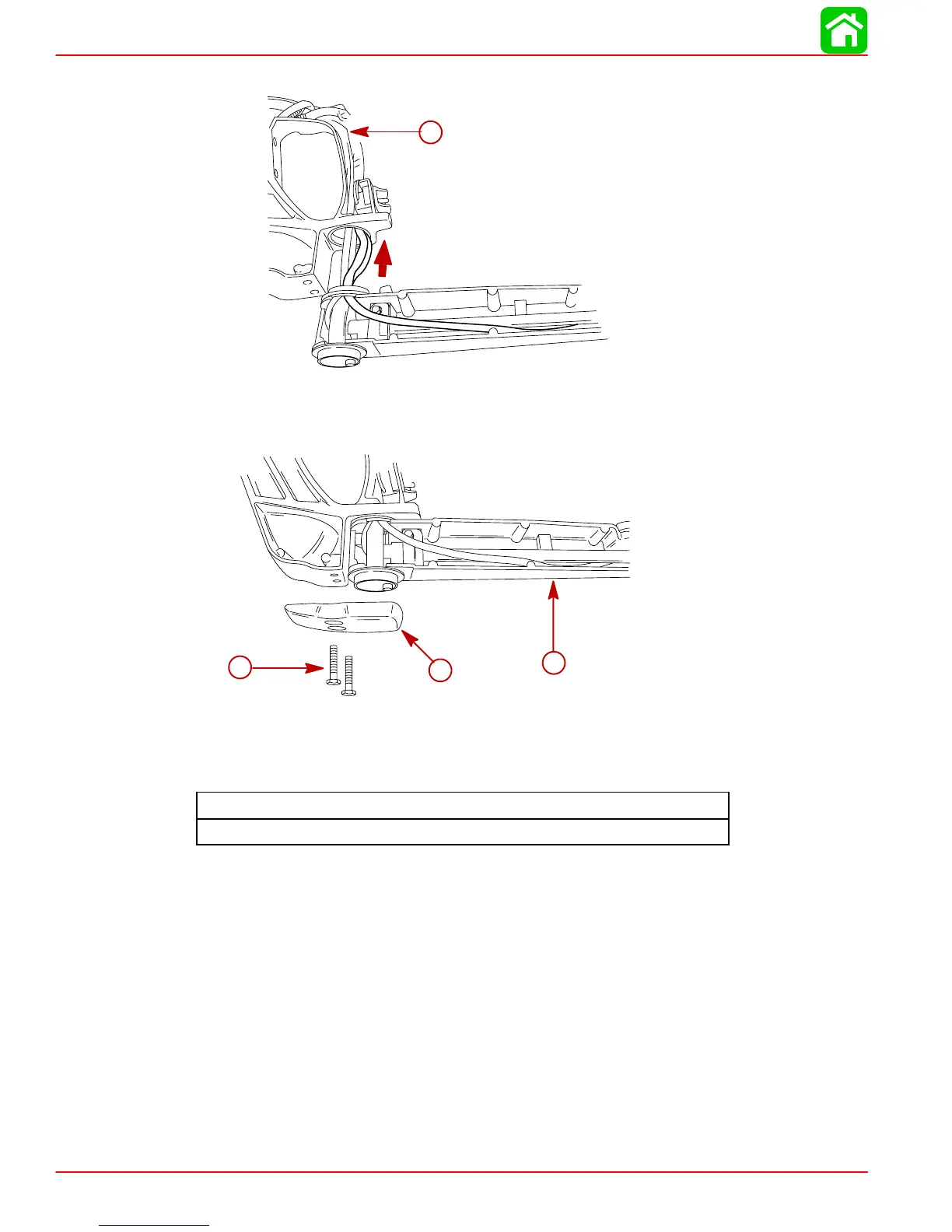

15. Pull the throttle cables and wiring into the bracket.
a
a-Tiller Bracket
16. Push the arm into the tiller bracket. Secure the arm by installing the cover and screws.
Tighten screws to specified torque.
a
b
c
a-Arm
b-Cover
c-Screw (2) M8 x 25
Arm Cover Screw Torque
135 lb. in. (15 Nm)
