TILLER HANDLE
90-857046R1 NOVEMBER 2001 Page 7B-11
9. Place pulley assembly into arm.
10. Slide the tiller tube into the arm. Position the throttle friction knob into its slot.
11. Match the end of the tiller tube with the slots in the pulley assembly. Insert the tiller tube
end into the pulley assembly.
12. Secure tiller tube with retainer.
13. Snap the engine start switch on the tiller tube.
a
c
d
b

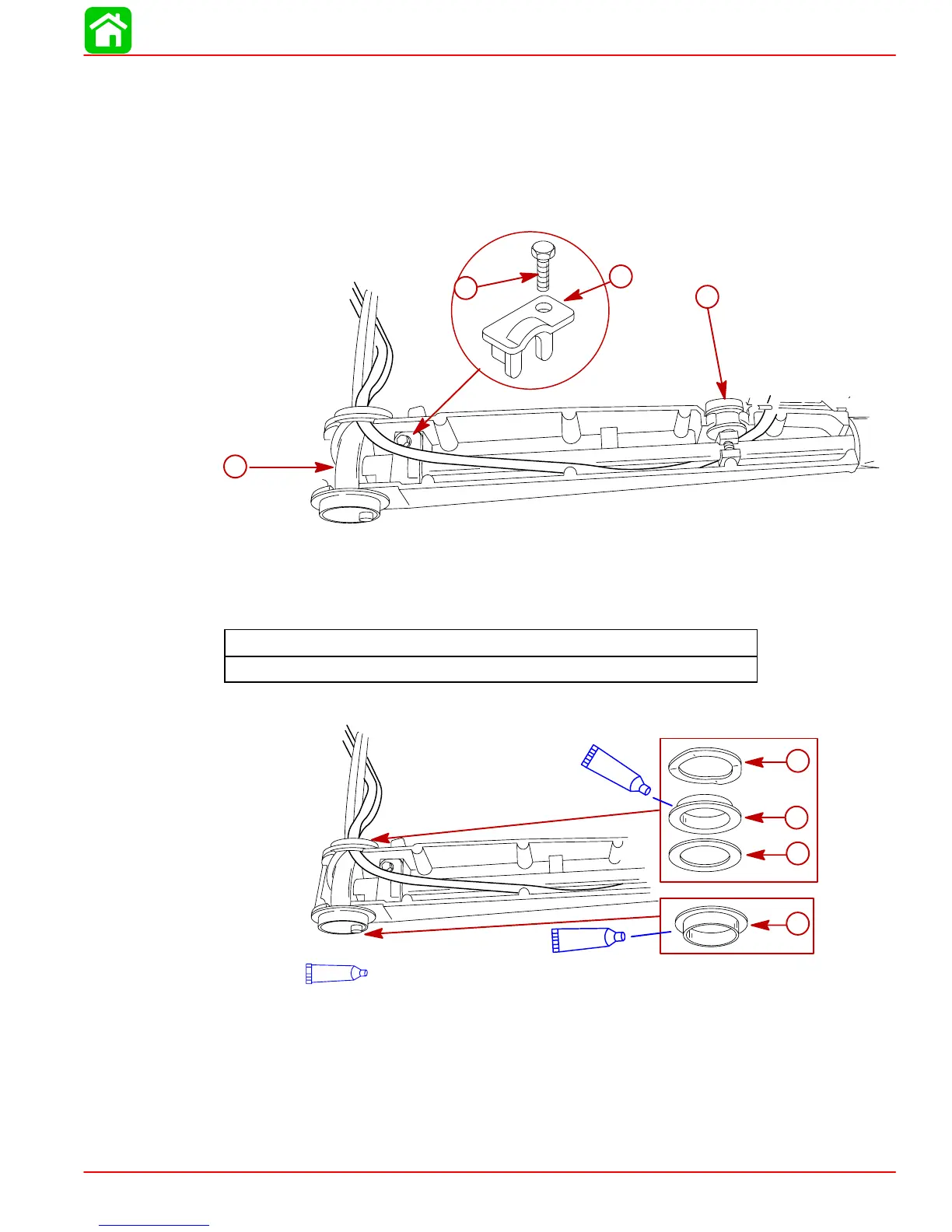

a-Pulley Assembly
b-Throttle Friction Knob
c-Retainer
d-Screw-M5x16
Tiller Tube Retainer Screw Torque
35 lb. in. (3.9 Nm)
14. Place bushing components on the arm mounts.
a
b
c
d
95
2-4-C Marine Lubricant with Teflon
95
95
a-Flat Washer
b-Bushing
c-Wave Washer (1)
d-Bushing
