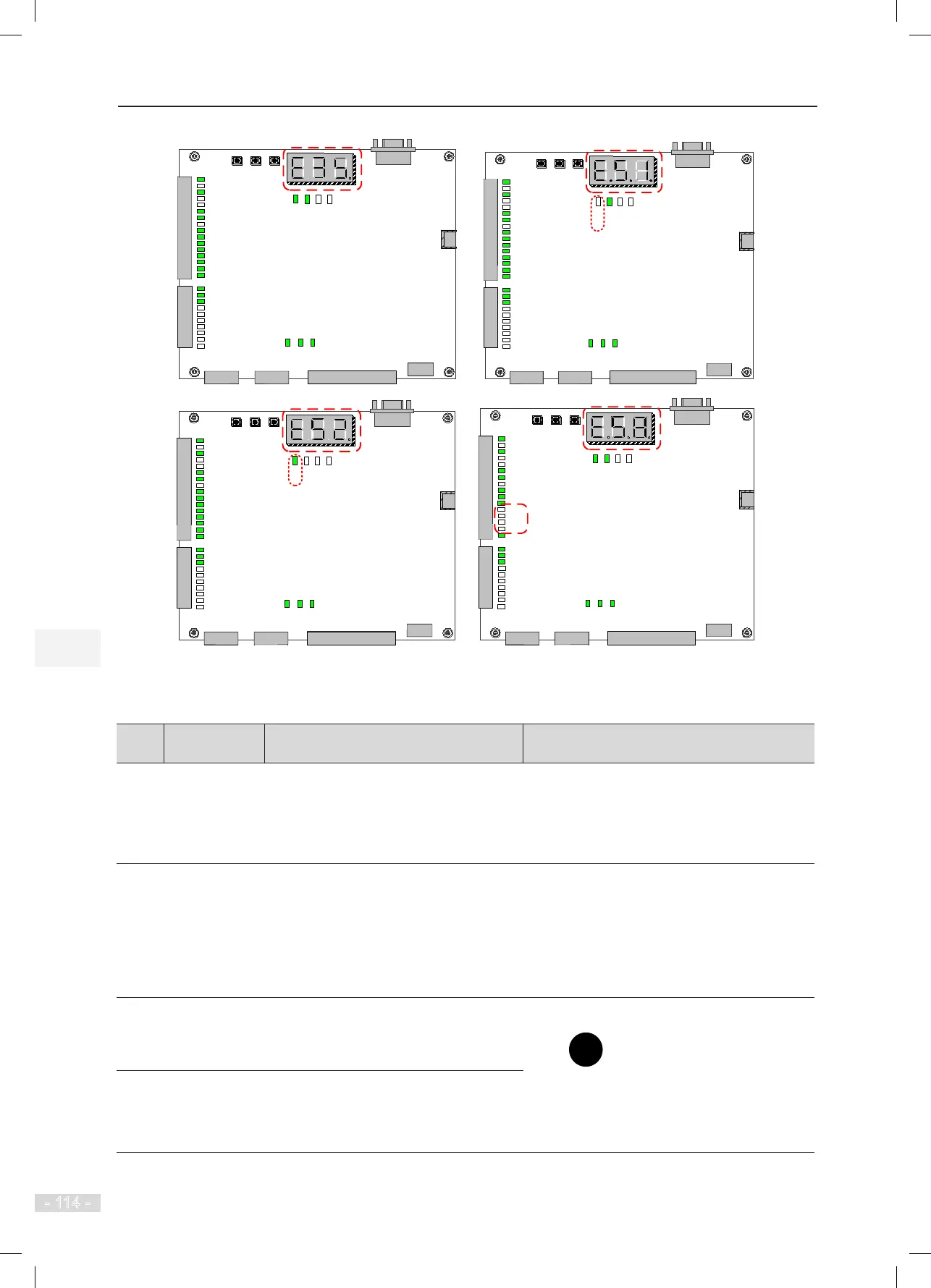

● Handling of faults E41, E42, E35, E51, E52, and E58 before commissioning at inspection speed
Table 6-1 Fault handling before commissioning at inspection speed
Fault
Code
Fault Name Fault Description Handling Method
E41
Safety circuit
fault
1. At this fault, the elevator cannot run or
be commissioned.
2. By default, the safety circuit signal is
connected to terminal X4.
Observe whether the signal indicator of input
terminal X4 is ON. If this indicator is OFF, the
safety circuit is disconnected. In this case, you
need to repair the safety circuit. Then, you can
perform commissioning at inspection speed.
E42
Door lock
circuit fault
1. At this fault, the elevator cannot run or
be commissioned.
2. By default, the door lock circuit signal is
connected to terminal X5.
Observe whether the signal indicator of terminal
X5 is ON. If this indicator is OFF, the door lock
circuit is disconnected. In this case, you need
to repair the door lock circuit. Then, you can
perform commissioning at inspection speed.
NEVER short the door lock circuit for
commissioning.
E35
Shaft auto-
tuning data
abnormal
This fault is reported at each power-
on because shaft auto-tuning is
not performed. It does not affect
commissioning at inspection speed.
Press
MF.K
on the operation panel to hide the
fault display. Then, you can perform inspection
at inspection speed.
CAN
communication
fault
1. This fault does not affect commissioning
at inspection speed, and it affects only
commissioning at normal speed.
2. The COP indicator is OFF at this fault.
