6 System Commissioning and Functions
- 113 -
6

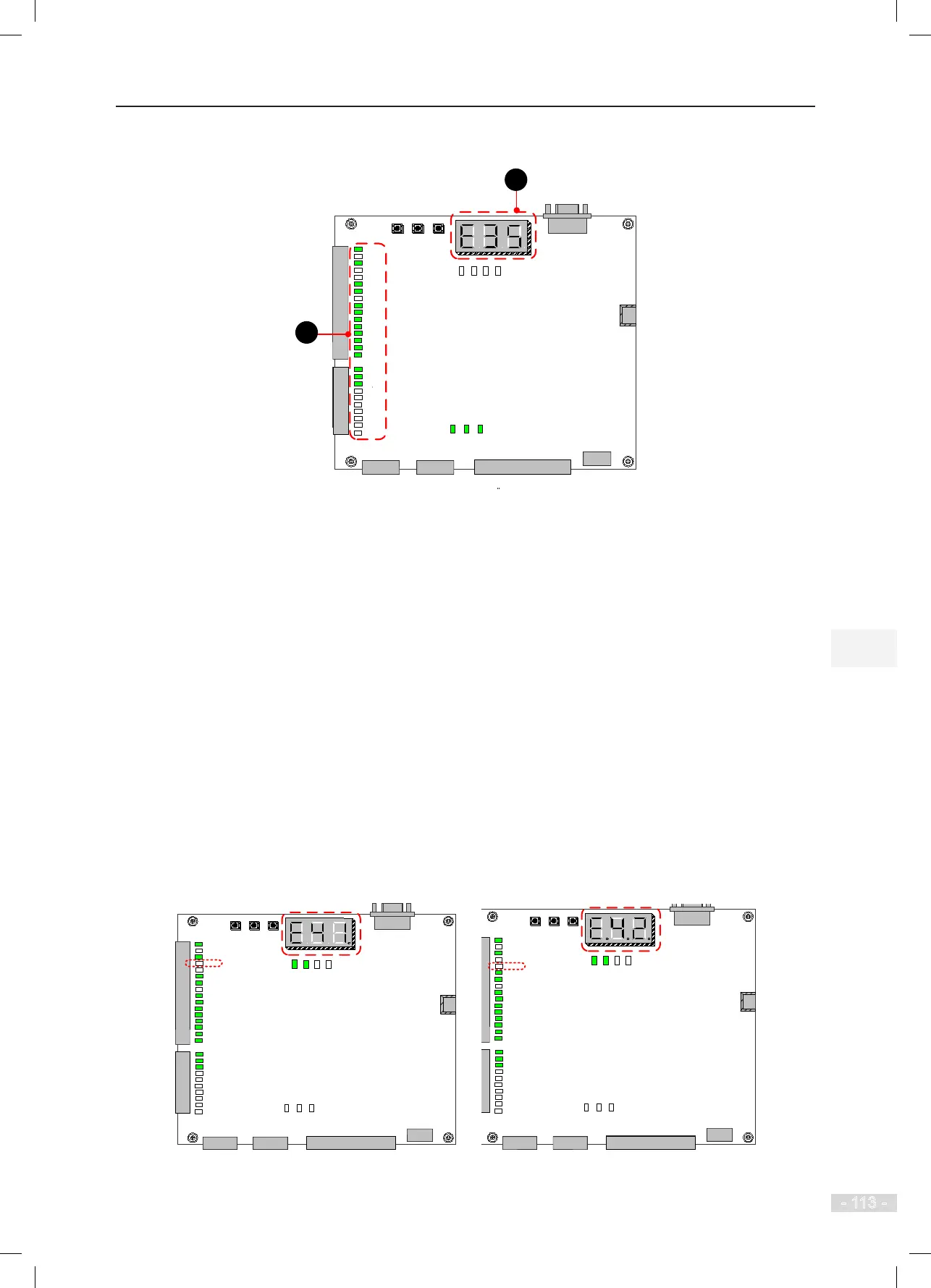

Figure 6-3 MCB display after normal power-on
CN3
PRG
UP
SET
COP HOP
CAN2
232
CN1
CN9
CN2
CN7
CN4
MCTC-MCB-C2
X25 X26 X27
X1
X2
X3
X4
X
5
X6
X7
X8
X9
X10
X11
X12
X13
X14
X15
X16
X17
X18
X19
X
20
X21
X22
X23
X24
Note 1: There is display on the keypad.
Note 2: Certain inputs on the MCB are active.
2
1
a: The keypad has display after power-on. If there is no display on the keypad, check whether the
power supply of the controller is normal.
b: If the input signal indicators shown in the preceding gure become ON, it indicates that the 24
VDC power supply is normal, and the X input terminals work properly. If none of the indicators is ON,
it indicates that the 24 VDC power supply is abnormal, and you need to eliminate the problem.
4. Check the controller state and handle related faults accordingly as follows:
During commissioning especially at rst-time power-on, certain faults may occur because the
conditions for automatic elevator running are not met and certain peripheral signals are not
connected.
Such faults include E41, E42, E35, E51, E52, and E58. The following part describes the MCB state
at fault and handling of these faults.
● MCB state at occurrence of E41, E42, E35, E51, E52, and E58
Figure 6-4 MCB state at faults during commissioning
CN3
PRG
UP
SET
COP HOP
CAN2
232
CN1
CN9
CN2
CN7
CN4
MCTC-MCB-C2
X25 X26 X27
X1
X2
X3
X4
X5
X6
X7
X8
X9
X10
X11
X12
X13
X14
X15
X16
X17
X18
X19
X20
X21
X22
X23
X24
CN3
PRG
UP
SET
COP HOP
CAN2
232
CN1
CN9
CN2
CN7
CN4
MCTC-MCB-C2
X25 X26 X27
X1
X2
X3
X4
X5
X6
X7
X8
X9
X10
X11
X12
X13
X14
X15
X16
X17
X18
X19
X20
X21
X22
X23
X24
