6 System Commissioning and Functions
- 127 -
6
Car Top Commissioning
Pay attentions to the following precautions before performing commissioning:
1. During car top commissioning, the operator stands on top of the car; to guarantee personal
safety, ensure that car top inspection is enabled (inspection on top of the car takes
precedence over inspection in the equipment room).
2. The MCTC-CTB is high level active by default.
3. This section takes the single-door elevator system as an example to describe the
commissioning. The related signals include light curtain 1, door 1 open/close limit signal,
and door 1 open/close output signal, as described in the following table.
Table 6-3 Car top commissioning-related signals
CTB Terminal Terminal Denition
P24 Common for X1 to X8 inputs
X1 Light curtain 1 input
X3 Door 1 open limit input
X5 Door 1 close limit input
BM Door 1 output common
B1 Door 1 open output
B2 Door 1 close output
For the double-door elevator system, the terminals controlling door 2 signals, such as light curtain 2
signals and door 2 open/close limit signals, have the same principle and monitoring mode as those of
door 1. The details are not described here.
4. The system can monitor the input and output state of the light curtain and door machine
signals and whether these signals are active.
You can view the signal indicators on the CTB to know the input/output state.

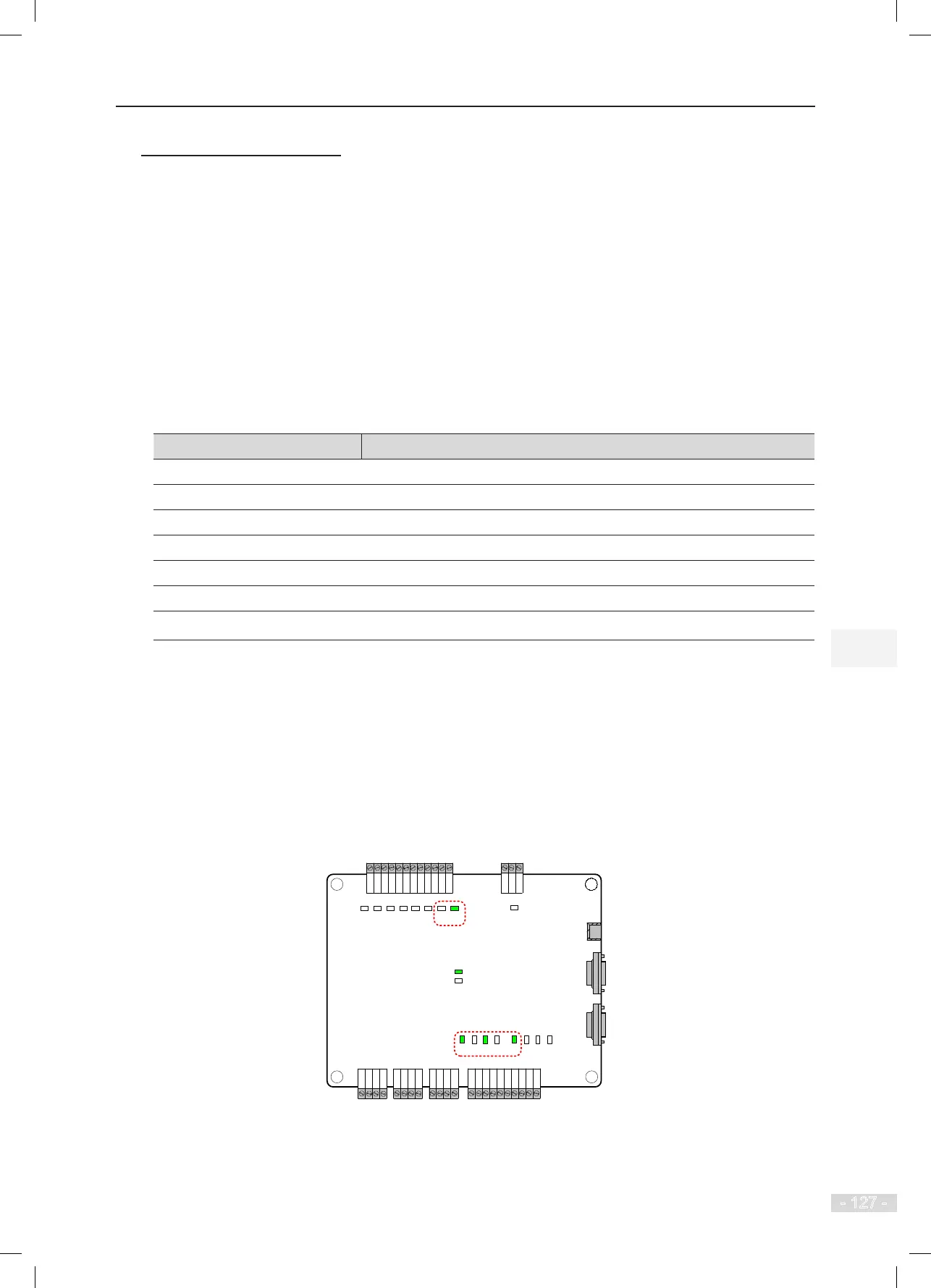

Figure 6-6 Input/output state indicated by CTB signal indicators
CN2 CN1
CN6
CN3
CN4
CN5
CN10
CN7
CN8
MCTC-CTB
A1B1B2B3C2 C1D2 D1 C3
X1
X2 X3
X4 X5
X6 X7
X8
CAN
RESET
D2
D1
DM
C3
C3M
C2
C1
CM
B3
B2
B1
BM
AM
B
A
24V
CAN+
CAN-
COM
24V
MOD+
MOD-
COM
Ai
M
24V
X1
X2
X3
X4
X5
X6
X7
X8
P24
P24
