Monarch nice3000 User Manual

NICE3000
new
User Manual
6 System Commissioning and Functions
- 133 -
6
Type Wiring Diagram Parameter Setting
Connected to MCB
CN9
Ai
M
Analog load cell
MCTC-MCB
24V
Terminal 24V of the system is connected to power cable positive
of the analog load cell, and terminal M of CN9 on the MCB is
connected to power cable negative of the analog load cell. Terminal
Ai of CN9 on the MCB is connected to the signal cable of the
analog load cell.
F5-36 = 3 (MCB
analog input)
■ Load cell auto-tuning
When the analog load cell is used, load cell auto-tuning must be performed; otherwise, the analog
load cell cannot be used. Perform analog load cell auto-tuning to obtain the car full-load/overload
data according to the following owchart.

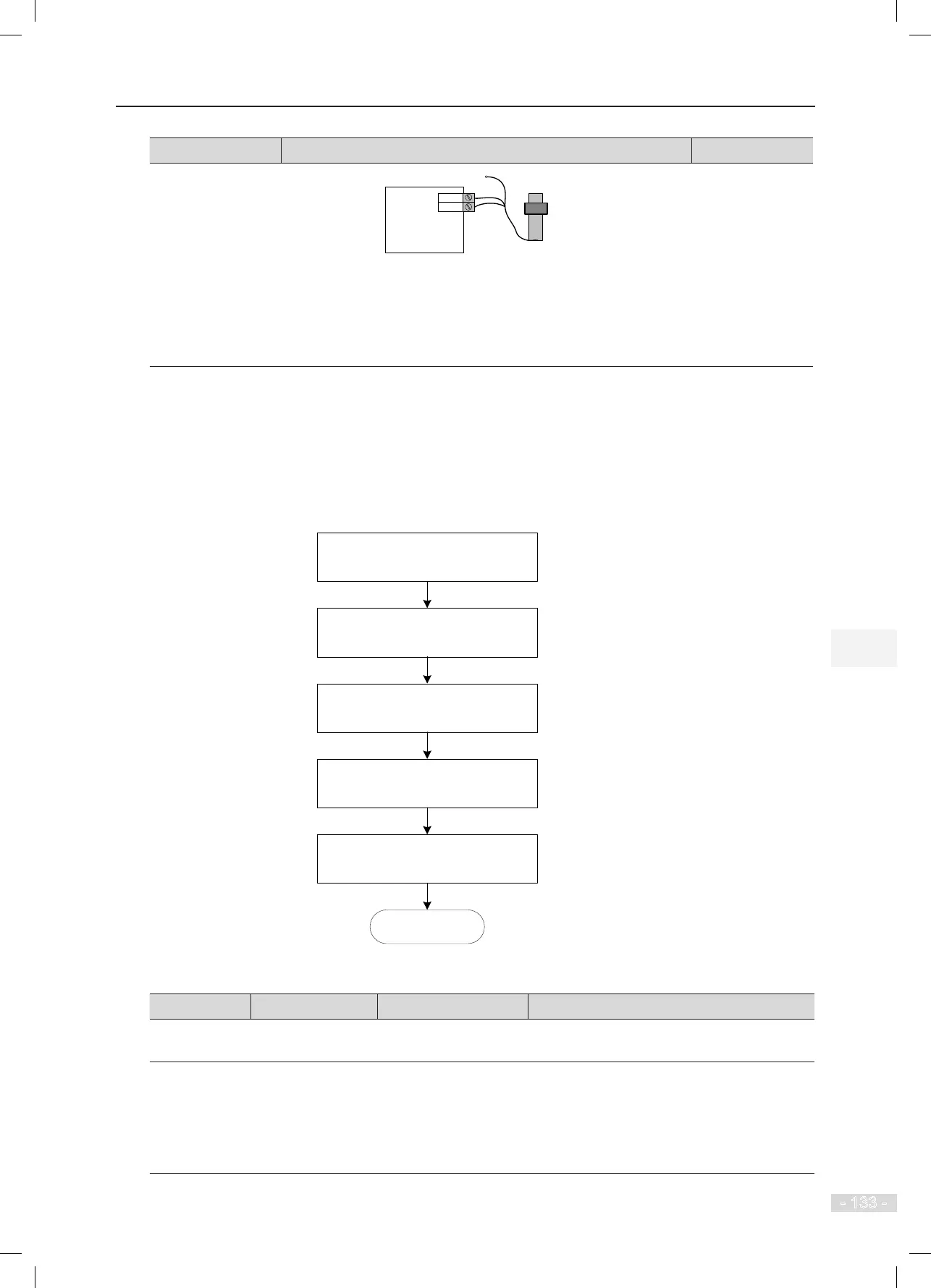

Figure 6-9 Analog load cell auto-tuning owchart
Set F8
-01 to 0
Make the car unloaded
Set F8-00 to 0.
Press ENTER on the operation panel.
Put N% load in the car
Set F8-00 to N.
Press ENTER on the operation panel.
End
The parameters involved in analog load cell auto-tuning are described in the following table.
Function Code Parameter Name Setting Range Description
F8-00
Load for load cell
auto-tuning
0–100
Set the load ratio of the car properly during
analog load cell auto-tuning.
F8-01
Pre-torque
selection
0: Pre-torque invalid
1: Load cell pre-torque
compensation
2: Automatic pre-torque
compensation
Set this parameter to 0 before starting analog
load cell auto-tuning.
